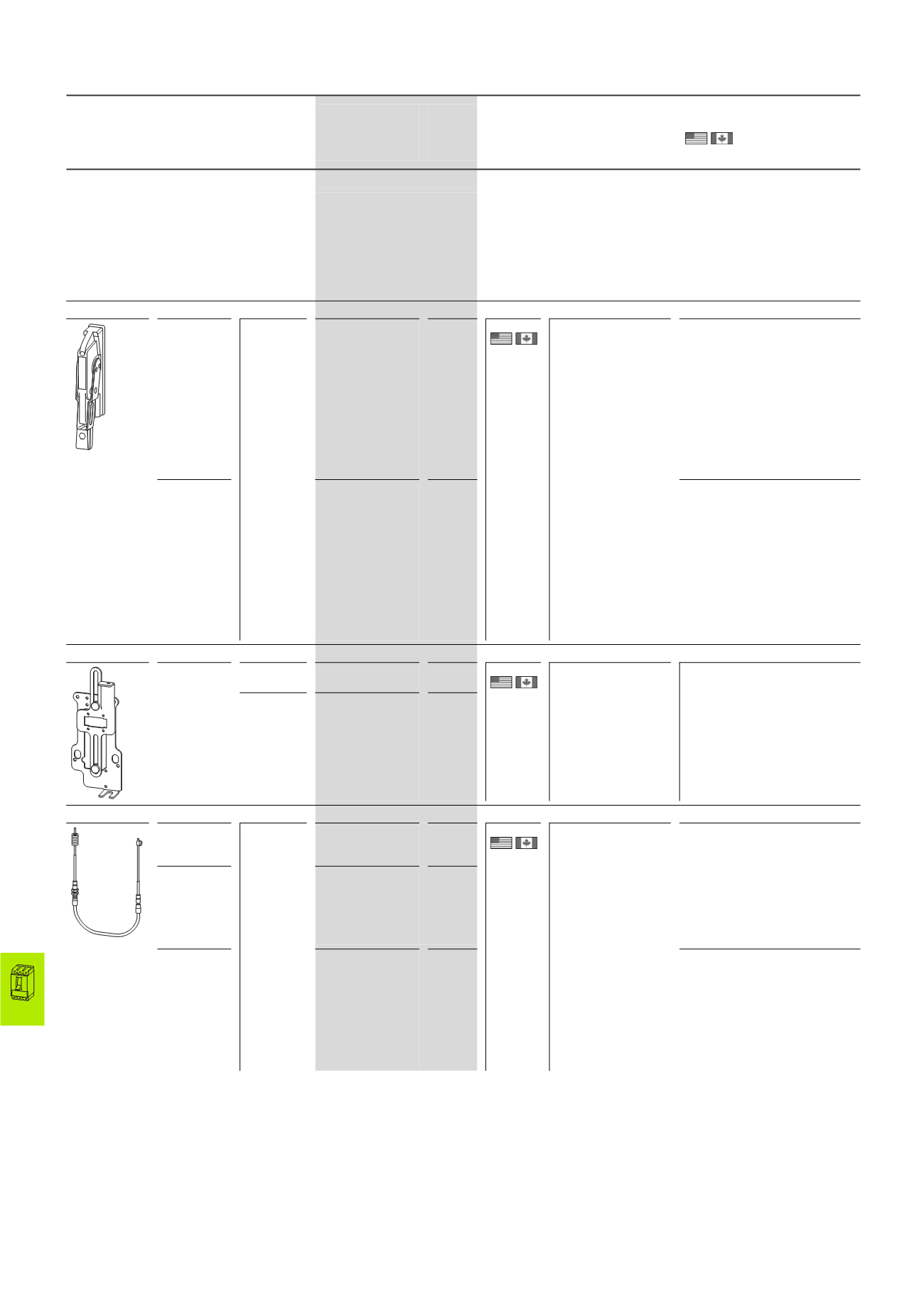

17/128 Circuit-breakers, switch-disconnectors
Side-mounted handle
2010 CA08103002Z-EN
Side-mountedhandle
For use with Part no.
Article no.
Price
Seeprice
list
Std. pack Notes Information relevant for export to
North America
Side-mounted handle
For mounting outside the control panel door.
Actuation of a switch with toggle lever using a
Bowden cable and mechanical components
mounted on the front of the switch.
For switch with toggle lever.
Caution! Intended exclusively for use outside the
scope of validity of the IEC/EN 60947 area .
Handle, metal, black/red
Degree of
protection
UL/CSA
Type 12
NZM2…-NA,
NS2…-NA
NZM3…-NA,
NS3…-NA
NZM-XSHGVR12-NA
107269
1 off Lockable in 0-position on
handle with up to
3 padlocks, for 1 door of
an American style
control panel (door plus
wide bar beside the
door).
For each handle
1 additional mechanical
unit and 1 Bowden cable
is required.
Product Standards
UL489; CSA-C22.2
No. 5-09
UL File No. E140305
UL CCN DIHS
CSA File No. 236770
CSA Class No. 1437-01
NA Certification UL Listed,
CSA certified
Degree of Protection
IEC: IP66, UL/CSA
Type 12
Degree of
protection
UL/CSA
Type 4X
NZM-XSHGVR4X-NA
107268
Product Standards
UL489; CSA-C22.2
No. 5-09
UL File No. E140305
UL CCN DIHS
CSA File No. 236770
CSA Class No. 1437-01
NA Certification UL Listed,
CSA certified
Degree of Protection
IEC: IP66, UL/CSA
Type 4X
Mechanical unit
NZM2…-NA,
NS2…-NA
NZM2-XSHM-NA
107266
1 off For mounting on the front
of a switch with toggle
lever, including fixing
sundries.
UL/CSA certification not required
NZM3…-NA,
NS3…-NA
NZM3-XSHM-NA
107267
Bowden cables
Nominal
length 36"
= 91.4 cm
NZM2…-NA,
NS2…-NA
NZM3…-NA,
NS3…-NA
NZM-XSHBZ36-NA
107263
1 off – Product Standards
UL489; CSA-C22.2
No. 5-09
UL File No. E140305
UL CCN DIHS
CSA File No. 236770
CSA Class No. 1437-01
NA Certification UL Listed,
CSA certified
Nominal
length 48"
= 121.9 cm
NZM-XSHBZ48-NA
107264
Nominal
length 60"
= 152.4 cm
NZM-XSHBZ60-NA
107265
Product Standards
UL489; CSA-C22.2
No. 5-09
UL File No. E140306
UL CCN DIHS
CSA File No. 236771
CSA Class No. 1437-02
NA Certification UL Listed,
CSA certified
NZM...-XSH...-NA HPL17128EN
