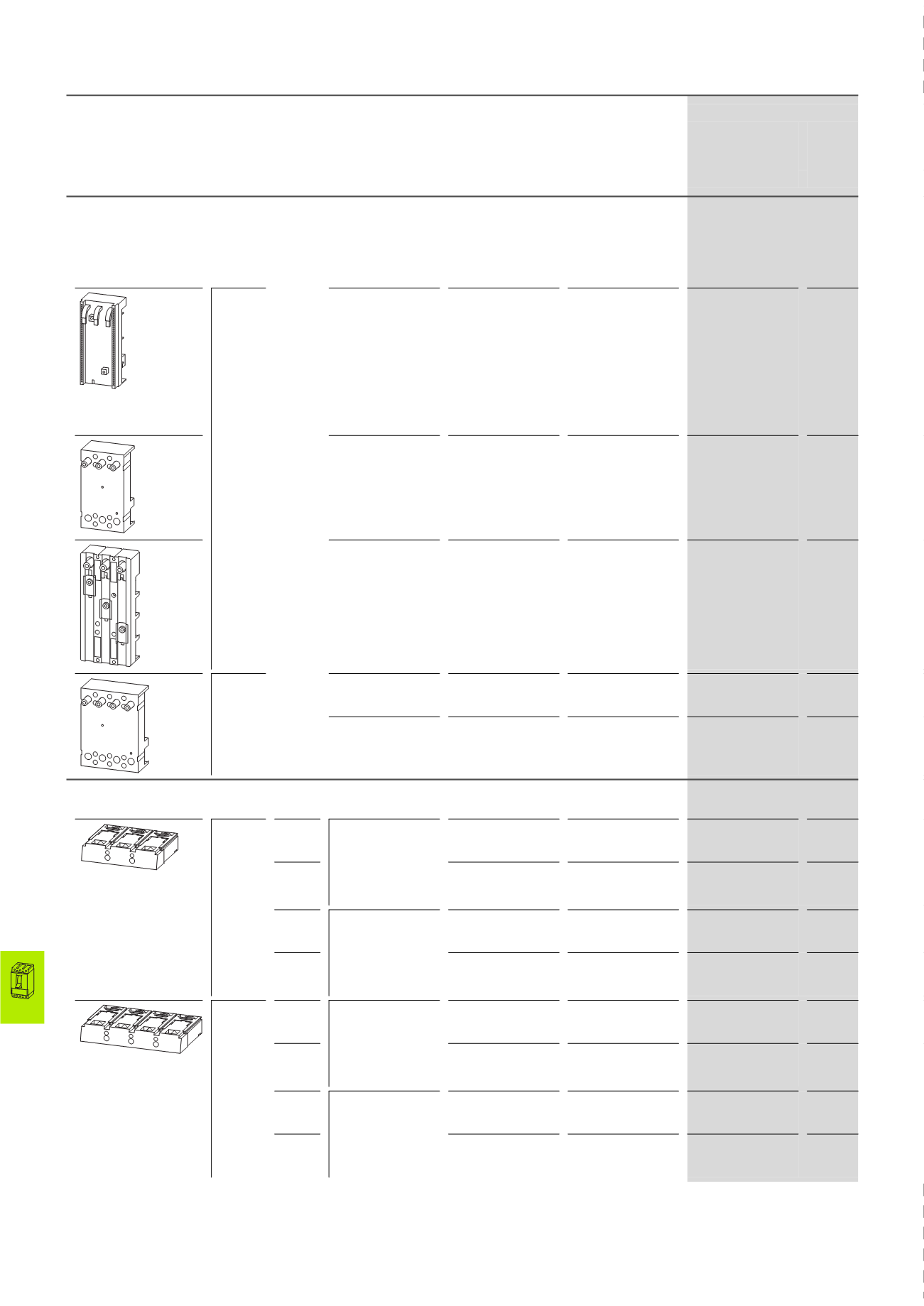

17/132 Circuit-breakers, switch-disconnectors
Multi-function component adapterss
2010 CA08103002Z-EN
Multi-functioncomponentadapterss
Number of
poles
Rated operational
current
Adapter width For use with Part no. suffix
Article no. for ordering
with basic device
Price
See price
list Ie
A mm
Component adapters for circuit-breakers and switch-disconnectors
For mounting on flat copper bars 12–30x5–10 mm, double T and triple T profile
Rated operating voltage Ue: 690 V
• Temperature resistant to 120 °C
• Self-extinguishing to UL 94
• Track resistance CTI 200
3 pole 160 90 NZM1,
PN1,
N(S)1
–
250 106 NZM2,
PN2,
N(S)2
–
630 140 NZM3,
PN3,
N(S)3
–
4 pole 250 140 NZM2-4,
PN2-4,
N2-4
–
630 185 NZM3-4,
PN3-4,
N3-4
–
Connection block for component adapters
For NZM2, NZM3 circuit-breakers
3 pole Above 250 – NZM2,
PN2,
N(S)2
+NZM2-XKR4O
281664
Below – NZM2,
PN2,
N(S)2
+NZM2-XKR4U
281665
Above 630 – NZM3,
PN3,
N(S)3
+NZM3-XKR13O
281667
Below – NZM3-4,
PN3-4,
N(S)3-4
+NZM3-XKR13U
115796
4 pole Above 250 – NZM2-4,
PN2-4,
N(S)2-4
+NZM2-4-XKR4O
118905
Below – NZM3,
PN3,
N(S)3
+NZM2-4-XKR4U
118906
Above 630 – NZM3-4,
PN3-4,
N(S)3-4
+NZM3-4-XKR13O
118908
Below – NZM2-4,
PN2-4,
N(S)2-4
+NZM3-4-XKR13U
118909
NZM...-XAD... HPL17132EN
