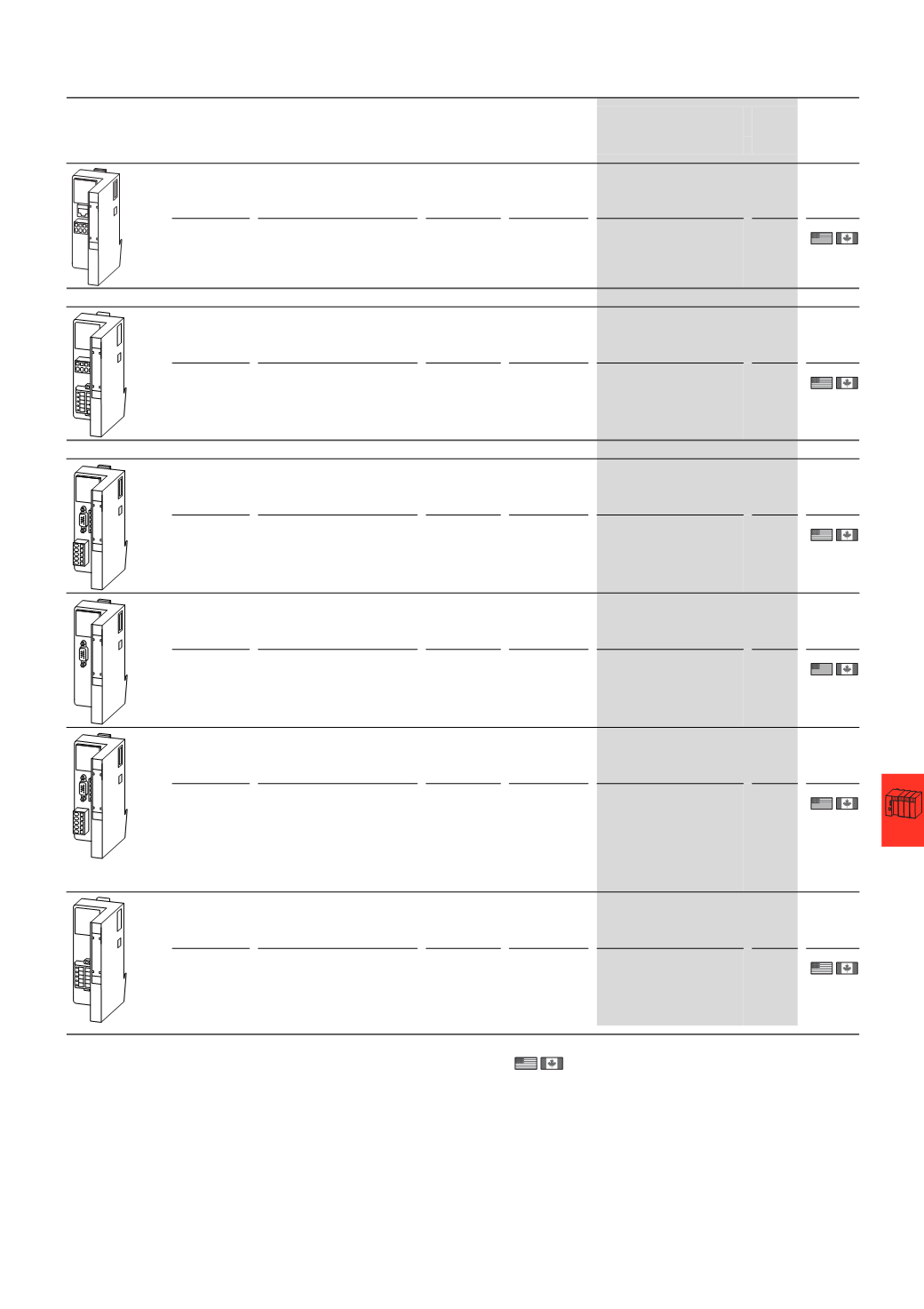

Automation products
Gateways
2010 CA08103002Z-EN
Remote I/O XI/ON 14/89
Fieldbus
connection
Terminal capacity
(field bus/supply voltage)
Servicing
interface
Transfer rate Part no.
Article no.
Price
See
price list
Std. pack
• Supports up to 74 disc type modules (XN, XNE)
• 1 x RJ45 socket
• Address set with decimal rotary coding switches, BootP, DHCP or I/Oassistant
• Address range: 1…254 (dec.)
Ethernet
(Modbus-TCP
protocol)
Screw terminals PS/2 socket 10/100 MBit/s XN-GWBR-MODBUS-TCP1) 3)
140162
1 off
XN-Gateway with integrated supply, programmable
• Supports up to 74 disc type modules (XN, XNE to limited extent)
• 1 x open-style connector
• Operating mode and address setting with two hexadecimal rotary coding switches
• Address range: 1 – 99 (dec.)
CANopen Screw terminals PS/2 socket Adjustableupto
1 Mbit/s
XN-PLC-CANOPEN 1) 4)
140157
1 off
XN gateway without integrated supply
• Supports up to 74 disc type modules (XN)
• 2 x D-sub 9-pin sockets
• Address setting with two hexadecimal rotary coding switches
• Address range: 1– 125 (dec.)
PROFIBUS-DP
(DPV0 protocol)
2 × spring-cage terminal strips for
direct wiring
PS/2 socket 9.6 Kbits/s to
1.5 MBit/s
XN-GW-PBDP-1.5MB 2) 4)
140049
1 off
• Supports up to 74 disc type modules (XN)
• 1 x D-sub 9-pin socket
• Address setting with two hexadecimal rotary coding switches
• Address range: 1– 125 (dec.)
PROFIBUS-DP
(DPV0 protocol)
– PS/2 socket 9.6 kbit/s to
12 Mbit/s
XN-GW-PBDP-12MB 2) 4)
140048
1 off
• Supports up to 74 disc type modules (XN)
• 1 x 9 pole SUB-D socket, 1 × D-sub 9-pin
• Address setting with two hexadecimal rotary coding switches
• Address range: 1– 127 (dec.)
CANopen 2 × spring-cage terminals for
direct wiring
PS/2 socket 1000 kbit/s
800 kbit/s
500 kbit/s
250 kbit/s
125 kbit/s
50 kbit/s
20 kbit/s
10 kbit/s
XN-GW-CANOPEN 2) 4)
140050
1 off
• Supports up to 64 disc type modules (XN)
• 1 x open-style connector
• Address set with two decimal rotary coding switches
• Address range: 0…63 (dec)
DeviceNet – PS/2 socket 500 kbit/s
250 kbit/s
125 kbit/s
XN-GW-DNET 2) 4)
140051
1 off
Notes 1) Bus refreshing modules is already integrated.
2) The supply module XN-BR-24VDC-D must be
mounted immediately next to the gateway to
provide the supply for the gateways.
Information relevant for export to North America
3) Product Standards IEC/EN 6113-2; CE marking
Degree of Protection IEC: IP20, UL/CSA Type: -
The following are included as standard with all
gateways:
2 x end bracket XN-WEW-32/2-SW,
1 x end plate XN-ABPL
4) Product Standards UL 508; cUL; IEC/EN 6113-2;
CE marking
UL File No. E205091
UL CCN NRAQ, NRAQ7
CSA File No. UL report applies to both US and Canada
CSA Class No. -
NA Certification UL Recognized, certified by UL for use in Canada
Degree of Protection IEC: IP20, UL/CSA Type: -
