www.eaton.comMains power supply units
14/137
Output circuit
11-12/14, 21-22/24
Contacts
Number 2 x 1 relay (changeover contact)
Operating principle
Quiescent current principle
Contact material
AgNi
Rated voltage
V
250
According to VDE 0110, IEC 60947-1
Minimum switching voltage
V
24
Maximum switching voltage
V
250
Minimum switching voltage
mA
10
Maximum switching current
A
1
Rated operational current
AC-12 (resistive) 230 V
1
A
AC-15 (inductive) 230 V
1
A
DC-12 (resistive) 24 V
1
A
DC-13 (inductive) 24 V
1
A
Durability
Mechanical
30
x 10
6
operations
Electrical
0.1
x 10
6
operations
Short-circuit rating
NC contacts
A
gL
2
N/O contacts
A
gL
2
Operating state display
Input OK
LED lit green when relay “Input OK” picked up
Output OK
LED lit green when relay “Output OK” picked up
Remote OFF
LED lit green when relay “Remote OFF” input R ≦ 1kΩ
Notes
Data at T
u
= 25 °C, U
IN
= 230 V AC and nominal values, when no others
are given

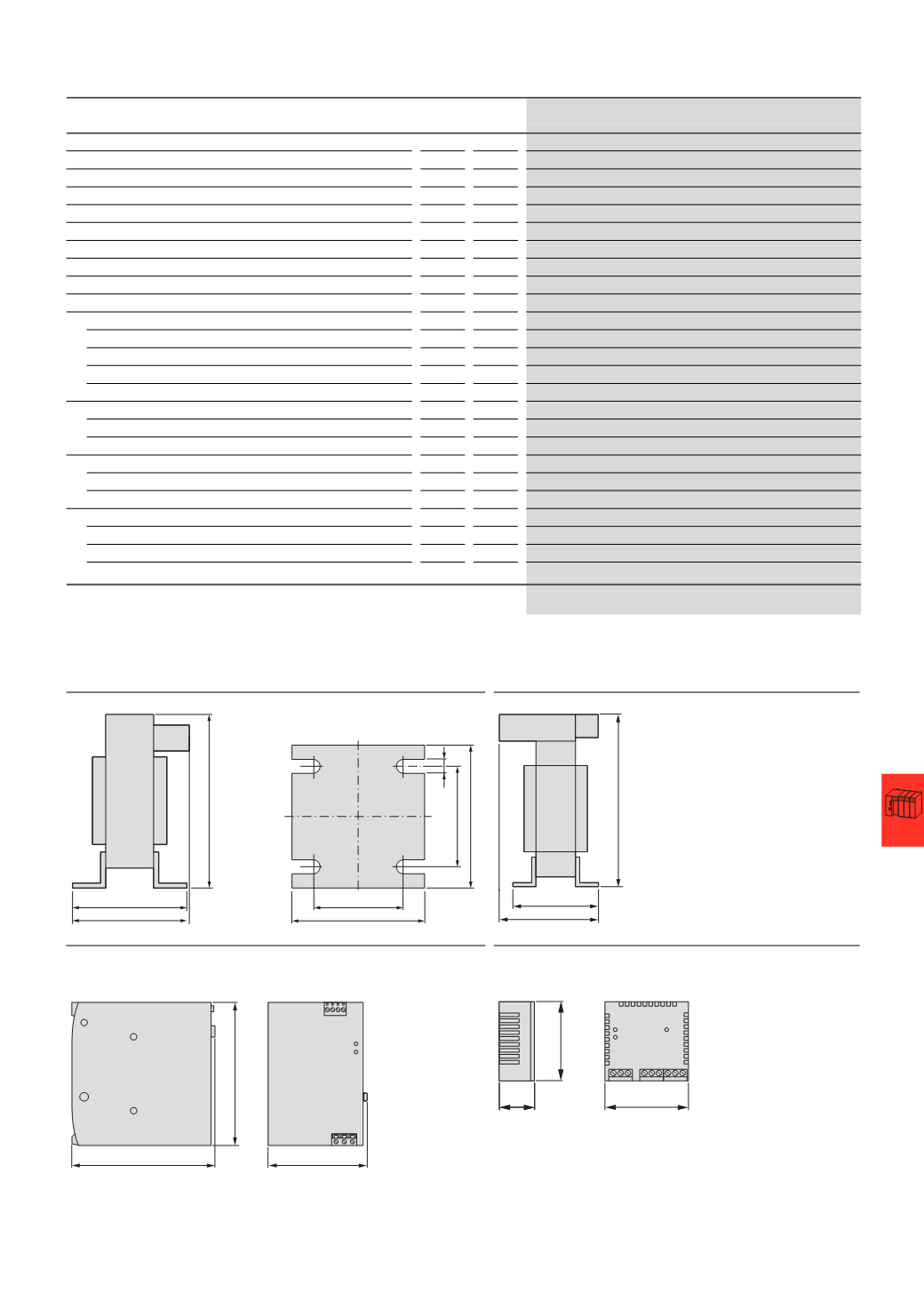

Dimensions
GW4-...
GD4-...
SN3-050
SN3-000-MMEU8
SN3-100
SN3-200
SN3-000-MMEU8
b 1
c + 5
1)
b 1
f
e
a
g
b 5
1)
b1
b 5
1)
c + 5
1)
130
130
a
57
54
24
