Automation products Software 14/129

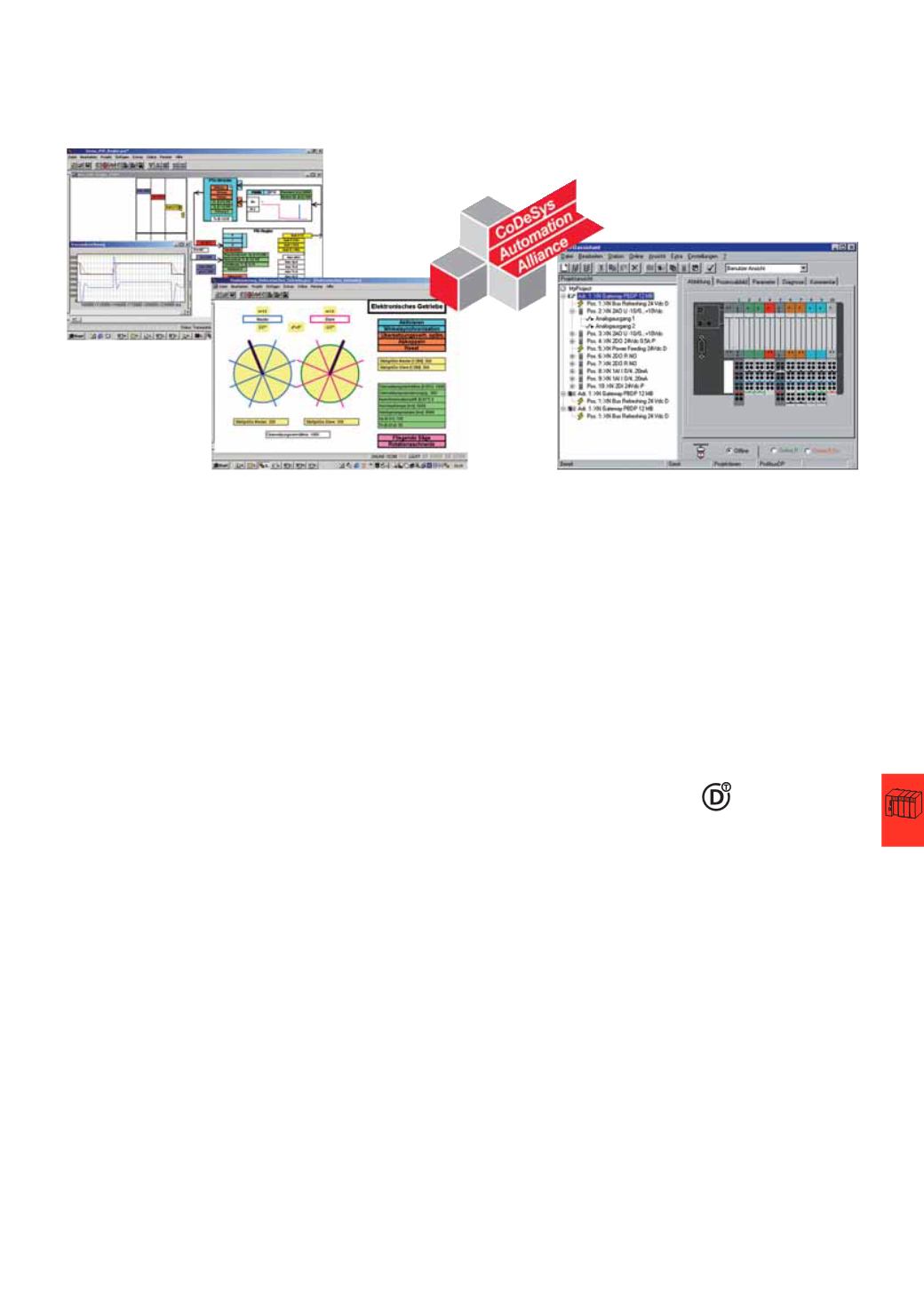

PLC programming with XSOFT-CODESYS-2
The CoDeSys-based software XSOFT-CODESYS-2 offers matured technical
features and easy operation. CoDeSys is one of the most powerful IEC 61131-3 PLC
programming tools. All five programming languages of the standard are supported.
• SMS/e-mail library for alarm message notifications.
• UDP/TCP library for powerful Ethernet communication with PC-based
applications.
• FTP server/client.
Web visualization (XV100, XVS400 and XV400 only):
Optionally XSOFT-CODESYS-2 can generate an XML description from the
visualization information, which is saved to the PLC together with a Java applet
and can be displayed in a web browser through TCP/IP to make the visualization
data available online on a wide range of platforms.
Target visualization (XV100, XVS400 and XV400 only):
The programming system can convert visualization information into IEC 61131-3
code and translate it for the respective target system with the code generator.
Closed-loop control toolbox:
The closed-loop control toolbox contains about 120 function blocks. The standard
function blocks provide leverage of the implemented closed-loop control know-
how. Being combinable and cascadable, the function blocks allow the creation of
special application solutions.
Motion control toolbox:
The motion control toolbox contains about 40 function blocks that can be
individually incorporated and optimally adapted to the automation task.
I/O configuration tool I/Oassistant for XI/ON
The free software I/Oassistant is a universal tool that provides interactive support
in planning and implementing your XI/ON system. Just select the gateways,
electronics, base modules and accessories, and the program configures your
stations either online or offline. Once designed, the system can go into operation.
Integrated in XSOFT-CODESYS-2, the I/Oassistant engineering tool for XI/ON is
also available within the PLC programming software. Without having to quit
XSOFT-CODESYS-2, you have access to the full functionality of I/Oassistant to
interactively plan and implement your remote XI/ON station.
• I/Oassistant automatically generates a full parts list for your order.
• With the [Check station design] function, you can easily check the configured
station design.
• Commissioning the I/O level without connected controller possible; servicing
interface
• EPLAN support.
Planning and ordering help (SWD?Assist)
Planning a SmartWire-Darwin line is quick and easy with the SWD-Assist software.
Generate applications easily and quickly with the system SmartWire-Darwin.
• Built-in function for generating ordering lists.
• Built-in validity check.
Free download from
