14/84 Automation products Remote I/O XI/ON

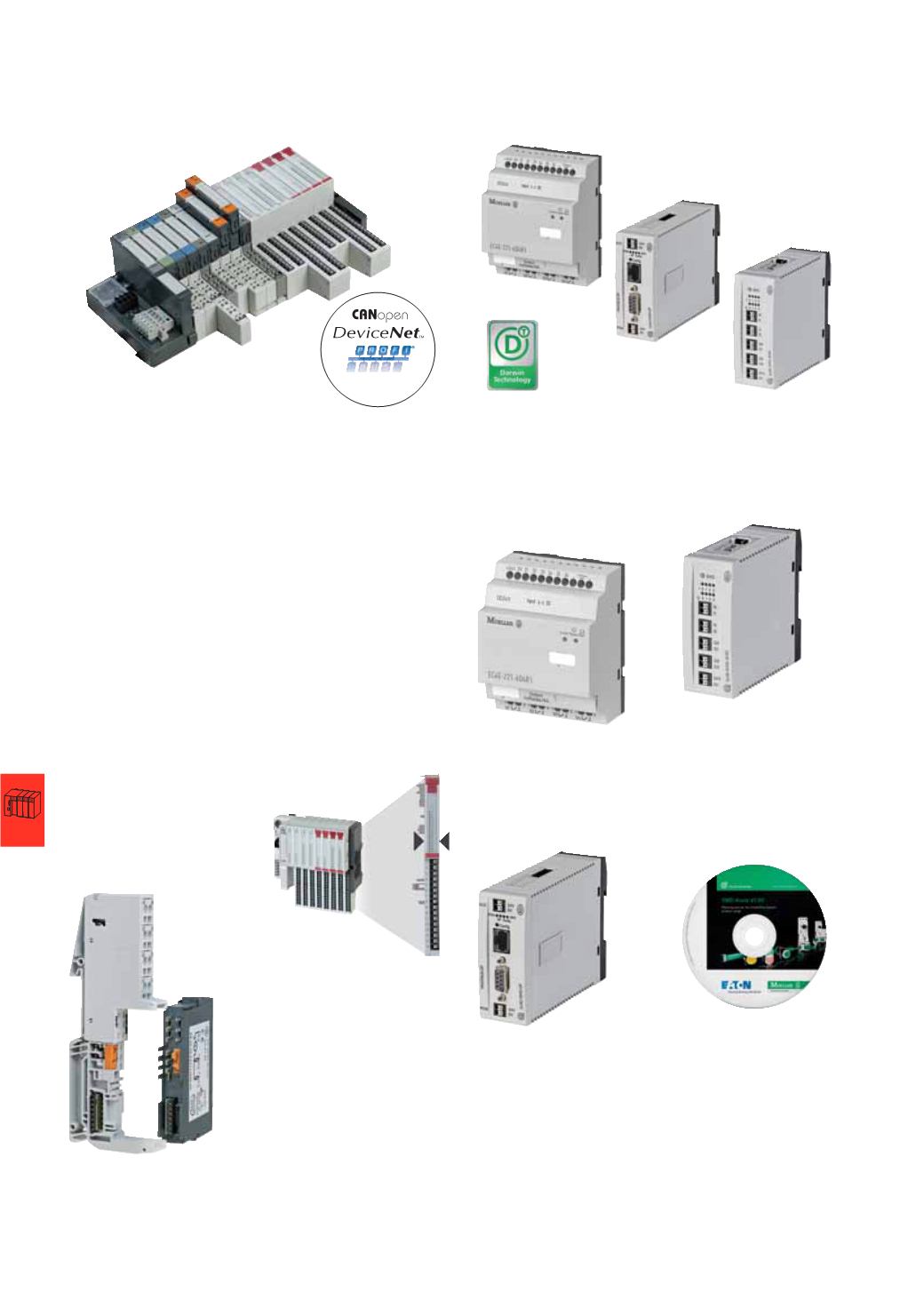

Remote I/OXI/ONDescription
Ethernet
As much as necessary, as little
as possible - is the design principle
of the modular I/O system XI/ON,
which provides a comprehensive
range of digital and analog I/Os
and technology modules. The
gateway products are available
for fieldbus systems CANopen,
PROFIBUS-DP, DeviceNet and
Ethernet.
XI/ON standard gateways and
modules
In the standard version, the pluggable
I/O modules are wired to base
modules.
• Bus-independent modules
• Hot-swapping of modules
• Screw or spring-cage terminals
• Mechanical coding of modules
prevents incorrect connection
• Serial interface modules
allow connection of various
peripherals, such as printers,
scanners and bar code
readers
• Programmable CANopen
gateway for decentralizing
automation tasks or reducing
the burden on higher-level
PLCs.
XI/ON ECO gateways and
modules
XI/ON ECO adds cost- and
space-optimized I/O modules
and gateways to the XI/ON I/O
system.
• High channel density:
up to 16 DI/DO over 12.5 mm
• No base modules required
• Cost saving through
electronics with built-in
connection level
• Connection through “push-in”
spring-cage terminal saves
mounting time
• Can be combined with XI/ON
standard
• Multi-function modules reduce the
number of required slices
• ECO gateways with built-in bus
termination resistors/auto-baud
function.
Configuration tool
I/Oassistant
With the free software I/Oassistant
XI/ON stations can be planned simply
and conveniently.
• I/Oassistant automatically
generates a complete parts list
for your order. With the “Check
surface mounting” function, you
can easily check the configured
station design.
• Commissioning the I/O level without
connected controller possible;
Servicing interface
• EPLAN support
• I/Oassistant can be integrated with
XSOFT-CODESYS-2.
CANopen expansion modules
The EC4E modules can be connected
to all control systems with CANopen
master. The modules can be expanded
with a digital or analog easy expansion
module.
SWD gateways
Gateways for connecting to field
busses PROFIBUS-DP and
CANopen and for power supply of
the SmartWire-Darwin nodes and
switchgear.
SWD I/O modules
SmartWire-Darwin station for the
connecting digital I/O.
Configuration tool
SWD-Assistant
The software SWD-Assist helps you
easily and quickly plan SmartWire-
Darwin lines.
Free download at
12.5 mm
16 I/O
