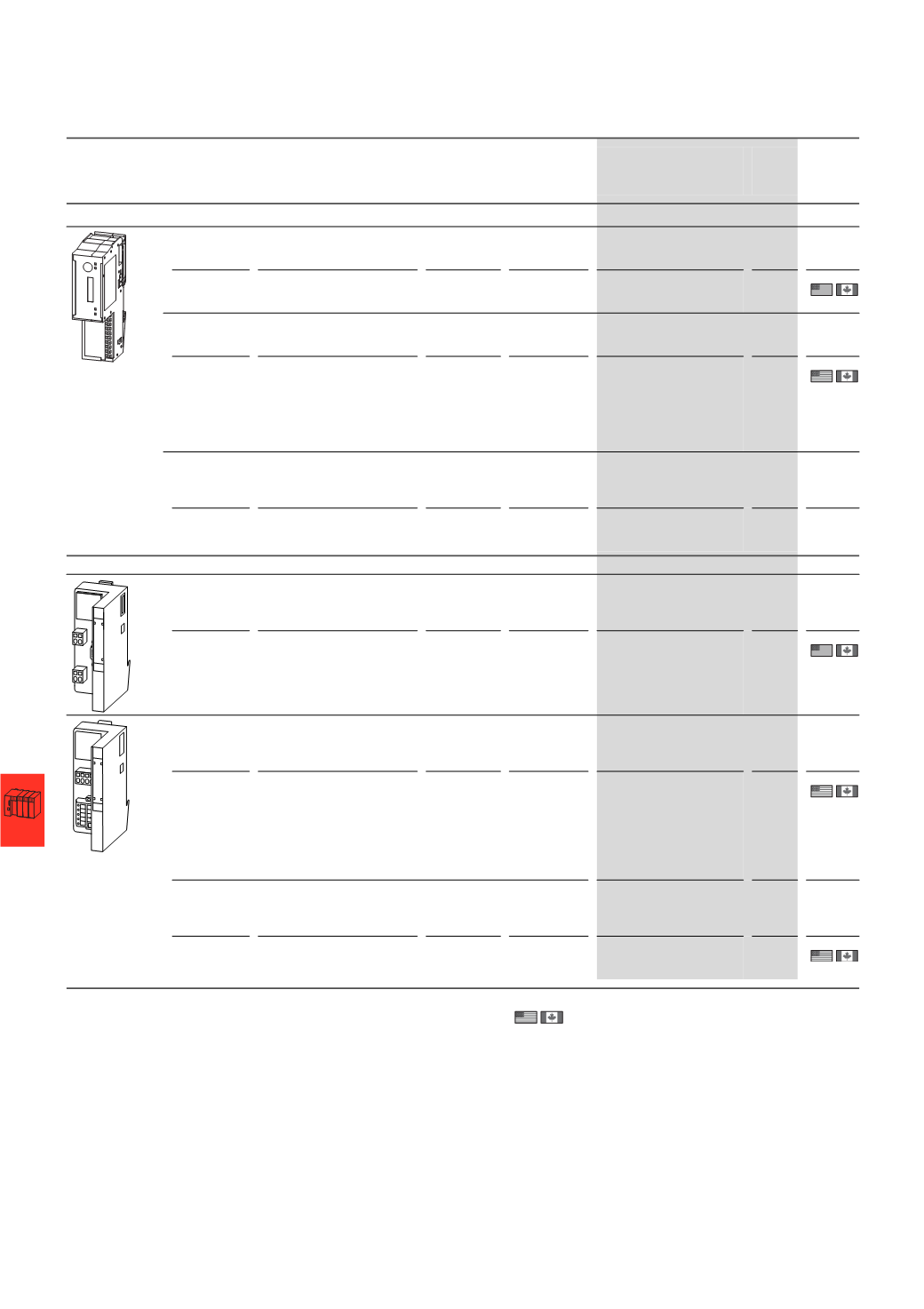

14/88 Automation products
Gateways
2010 CA08103002Z-EN
Remote I/O XI/ON
Remote I/OXI/ONGatewaysOrdering
Fieldbus
connection
Terminal capacity
(field bus/supply voltage)
Servicing
interface
Transfer rate Part no.
Article no.
Price
See
price list
Std. pack
Gateway XNE with integrated supply
• Supports up to 48 slice-type modules (XN, XNE)
• Address setting through DIP switch
• Address range: 1 – 125 (dec.)
PROFIBUS-DP
(DPV0/DPV1
protocol)
Push-in spring-cage terminals PS/2 socket 9.6 kbit/s to
12 Mbit/s
XNE-GWBR-PBDP 1)2)
140045
1 off
• Supports up to 62 disc type modules (XN, XNE)
• Address set with DIP switch
• Address range: 1 – 63 (dec.)
CANopen Push-in spring-cage terminals PS/2 socket 1000 kbit/s
800 kbit/s
500 kbit/s
250 kbit/s
125 kbit/s
50 kbit/s
20 kbit/s
XNE-GWBR-CANOPEN1)2)
140044
1 off
• Supports up to 74 disc type modules (XN, XNE)
• 2 x RJ45 socket
• Address set with decimal rotary coding switches, BootP, DHCP or I/Oassistant
• Address range: 1 – 254 (dec.)
Ethernet
(Ethernet-IP
protocol)
Push-in spring-cage terminals Mini USB 10/100 MBit/s XNE-GWBR-2ETH-IP 1)3)
140047
1 off
XN-Gateway with integrated supply
• Supports up to 74 disc type modules (XN, XNE)
• 1 x D-sub 9-pin socket
• Address set with two decimal rotary coding switches
• Address range: 1 – 99 (dec.)
PROFIBUS-DP
(DPV0 protocol)
Screw terminals PS/2 socket 9.6 kbit/s to
12 Mbit/s
XN-GWBR-PBDP 1)4)
140154
1 off
• Supports up to 74 disc type modules (XN, XNE)
• 1 x open-style connector
• Address set with two decimal rotary coding switches
• Address range: 1 – 99 (dec.)
CANopen Screw terminals PS/2 socket 1000 kbit/s
800 kbit/s
500 kbit/s
250 kbit/s
125 kbit/s
50 kbit/s
20 kbit/s
10 kbit/s
XN-GWBR-CANOPEN 1)4)
140155
1 off
• Supports up to 74 disc type modules (XN, XNE)
• 1 x open-style connector
• Address set with two decimal rotary coding switches
• Address range: 0 – 63 (dec.)
DeviceNet Screw terminals PS/2 socket 500 kbit/s
250 kbit/s
125 kbit/s
XN-GWBR-DNET 1)4)
140156
1 off
Notes 1) Bus refreshing modules is already integrated. Information relevant for export to North America
The following are included as standard with all
gateways:
2 x end bracket XN-WEW-32/2-SW,
1 x end plate XN-ABPL
2) Product Standards IEC/EN 6113-2; CE marking
NA Certification Request filed for UL and CSA
Degree of Protection IEC: IP20, UL/CSA Type: -
3) Product Standards IEC/EN 6113-2; CE marking
NA Certification Planned for UL and CSA
Degree of Protection IEC: IP20, UL/CSA Type: -
4) Product Standards UL 508; cUL
IEC/EN 6113-2; CE marking
UL File No. E205091
UL CCN NRAQ, NRAQ7
CSA File No. UL report applies to both US and Canada
CSA Class No. -
NA Certification UL Recognized, certified by UL for use in Canada
Degree of Protection IEC: IP20, UL/CSA Type: -
