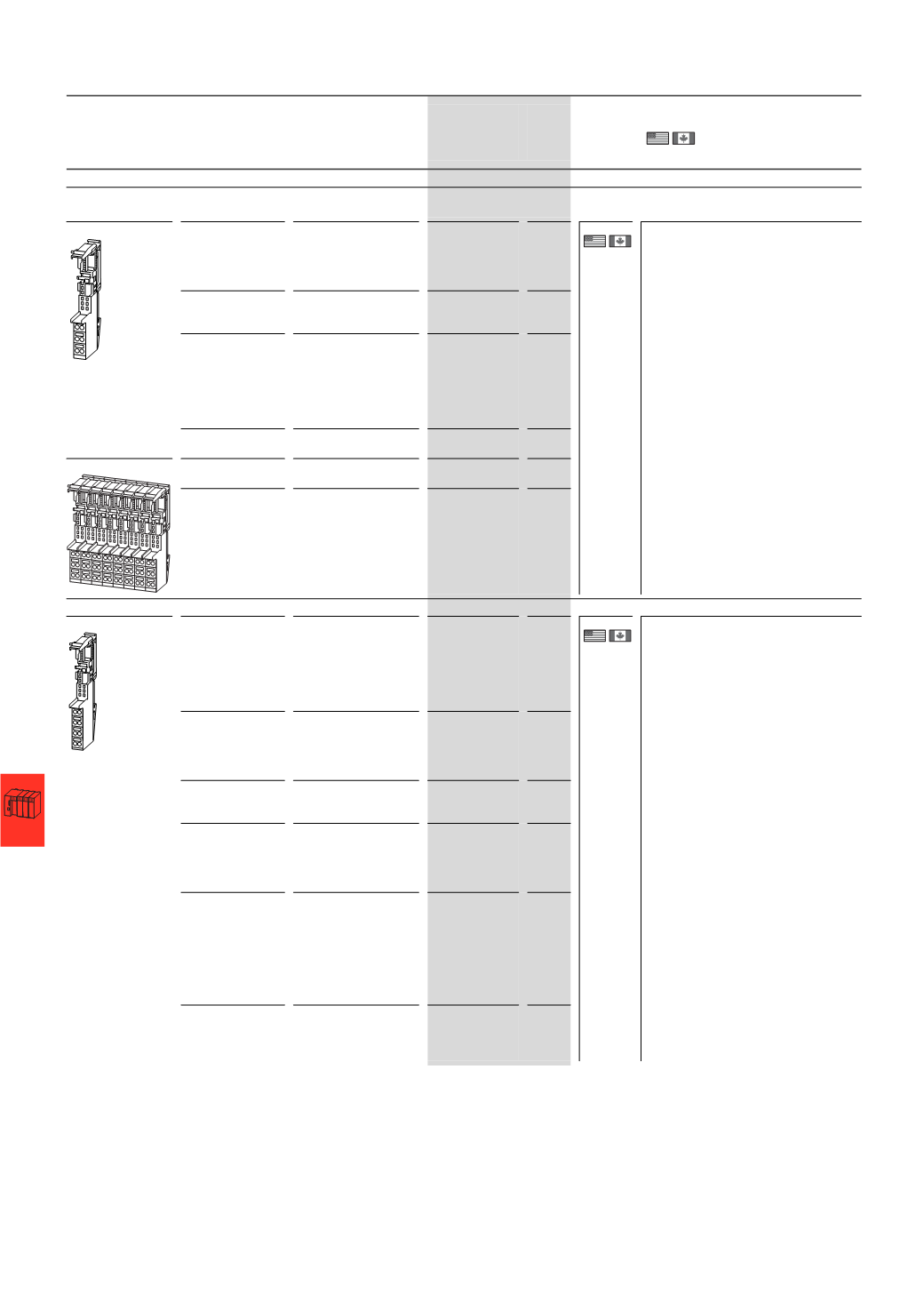

14/94 Automation products
Basic modules
2010 CA08103002Z-EN
Remote I/O XI/ON
Remote I/OXI/ONBasicmodules
Description For use with Part no.
Article no.
Price
See
price
list
Std. pack Information relevant for export to
North America
Basic modules
Spring-cage terminals
• 3 connection levels
Slice modules Base module for field
power supply
Base module for the
gateway supply (with
XN-BR-24VDC-D)
XN-BR-24VDC-D
XN-PF-24VDC-D
XN-PF-120/230VAC-D
XN-P3T-SBB
140074
1 off Product Standards UL 508; cUL;
IEC/EN 6113-2;
CE marking
UL File No. E205091
UL CCN NRAQ, NRAQ7
CSA File No. UL report applies to
both US and Canada
CSA Class No. -
NA Certification UL Recognized,
certified by UL for use
in Canada
Degree of Protection IEC: IP20, UL/CSA
Type: -
Base module for bus
refresh within the
station
XN-BR-24VDC-D XN-P3T-SBB-B
140073
– XN-2DI-...
XN-1AI-...
XN-2AI-I(0/4...20MA)
XN-2AI-U(-10/0...+10VDC)
XN-2AI-Pt/Ni-2/3
XN-1AO-I(0/4...20MA)
XN-2AO-...
XN-S3T-SBB
140077
Connection to
C rail
XN-2DO-24VDC-...
XN-2DO-120/230VAC-0.5A
XN-S3T-SBC
140079
Block modules – XN-16DI-24VDC-P XN-B3T-SBB
140133
Connection to
C rail
XN-16DO-24VDC-0.5-P XN-B3T-SBC
140134
• 4 connection levels
Slice modules Base module for field
power supply
Base module for the
gateway supply (with
XN-BR-24VDC-D)
Connection to
C rail
XN-BR-24VDC-D
XN-PF-24VDC-D
XN-PF-120/230VAC-D
XN-P4T-SBBC
140076
1 off Product Standards UL 508; cUL;
IEC/EN 6113-2;
CE marking
UL File No. E205091
UL CCN NRAQ, NRAQ7
CSA File No. UL report applies to
both US and Canada
CSA Class No. -
NA Certification UL Recognized,
certified by UL for use
in Canada
Degree of Protection IEC: IP20, UL/CSA
Type: -
Base module for bus
refresh within the
station
Connection to
C rail
XN-BR-24VDC-D XN-P4T-SBBC-B
140075
Connection to
C rail
XN-2DI-24VDC-P
XN-2DI-24VDC-N
XN-2DI-120/230VAC
XN-S4T-SBBC
140078
Connection to
C rail
XN-2DO-24VDC-...
XN-2DO-120/230VAC-0.5A
XN-4DO-24VDC-0.5A-P
XN-2DO-R-NO
XN-2DO-R-NC
XN-S4T-SBCS
140080
– XN-4DI-...
XN-2DO-R-...
XN-1AI-...
XN-2AI-I(0/4...20MA)
XN-2AI-U(-10/0...+10VDC)
XN-2AI-Pt/Ni-2/3
XN-1CNT-24VDC
XN-1RS...
XN-S4T-SBBS
140081
Base module with
temperature sensors
for cold-junction
compensation
XN-2AI-THERMO-PI XN-S4T-SBBS-CJ
140084
HPL14094EN
