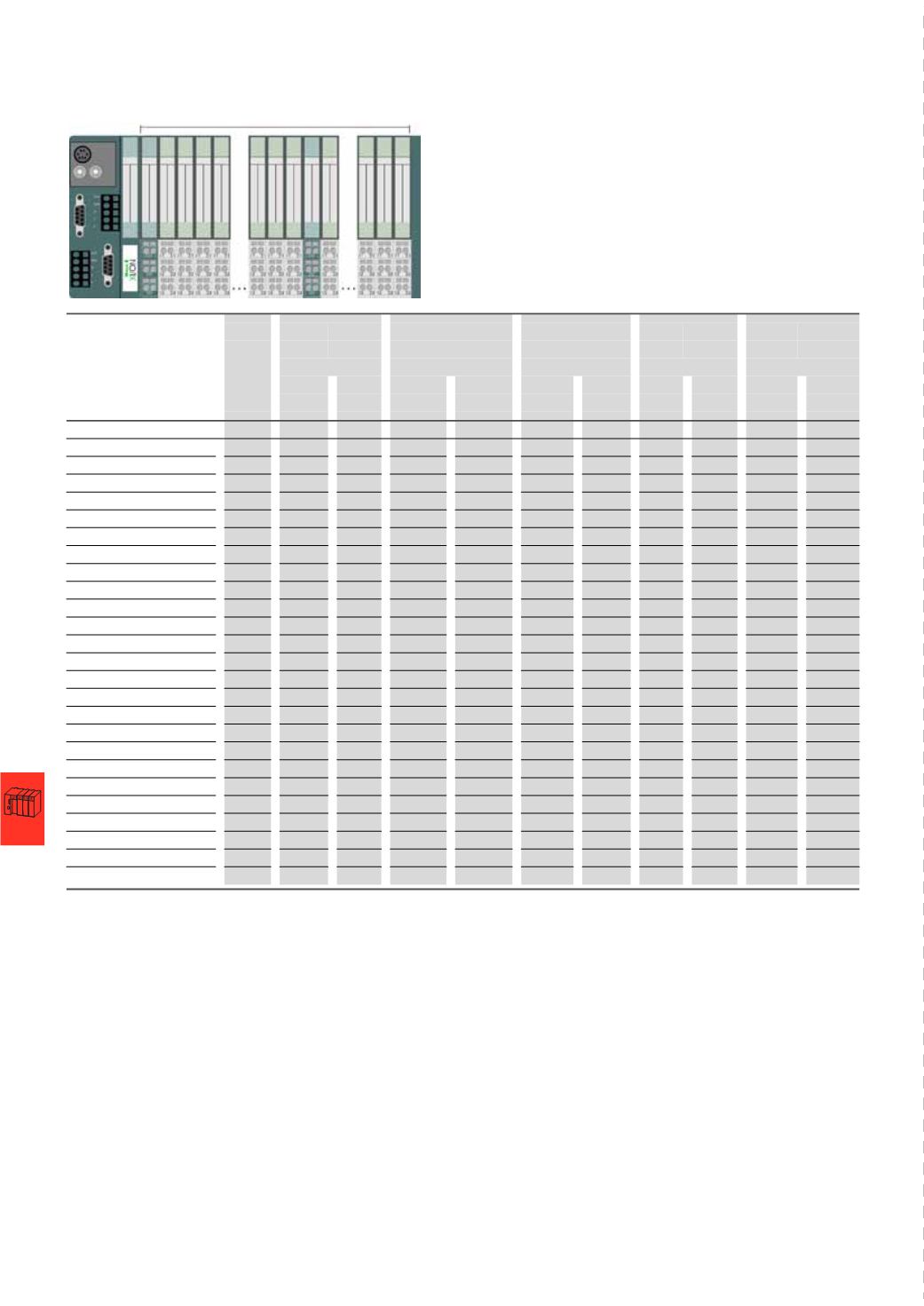

Maximum system configuration
Remote I/O XI/ON
2010 CA08103002Z-EN
Remote I/OXI/ONMaximumsystemconfiguration
Max. 74 XI/ON modules in slice design
Plan your XI/ON station with the software ""I/Oassistant""
(free download at .
Advantage 1:
Automatically generates a full parts list for your order.
Advantage 2:
Generates an error message as soon as the system limits are exceeded.
Notes:
When extending your system, make sure that you have a sufficient number of bus
refresh or power feed modules.
Part no. Part no. Part no. Part no. Part no.
Max.
number/
station
140045 140044 140047 140154 140055
XNE-GWBR-PBDP XNE-GWBR-CANOPEN XNE-GWBR-2ETH-IP XN-GWBR-PBDP XN-GWBR-CANOPEN
Channels Modules Channels Modules Channels Modules Channels Modules Channels Modules
Modules
XN-4DI-24VDC-P 136 34 244 61 288 72 288 72 288 72
XN-4DI-24VDC-N 136 34 244 61 288 72 288 72 288 72
XN-16DI-24VDC-P 128 8 128 8 128 8 128 8 128 8
XN-32DI-24VDC-P 256 8 256 8 256 8 256 8 256 8
XNE-8DI-24VDC-P 384 48 512 64 512 64 592 74 512 64
XNE-16DI-24VDC-P 768 48 512 32 512 32 1184 74 512 32
XN-4DO-24VDC-0.5A-P 132 33 244 61 288 72 288 72 288 72
XN-16DO-24VDC-0.5A-P 128 8 128 8 128 8 128 8 128 8
XN-32DO-24VDC-0.5A-P 256 8 256 8 256 8 256 8 256 8
XNE-8DO-24VDC-0.5A-P 384 48 488 61 512 64 592 74 512 64
XNE-16DO-24VDC-0.5A-P 640 40 512 32 512 32 1168 73 512 32
XN-2DO-R-… 70 35 122 61 144 72 144 72 144 72
XN-2AI-I(0/4…20MA) 56 28 100 50 126 63 78 39 144 72
XN-2AI-U(-10/0…+10VDC) 56 28 100 50 126 63 78 39 144 72
XN-2AI-Pt/Ni-2/3 44 22 98 49 126 63 46 23 144 72
XN-2AI-THERMO-PI 44 22 98 49 126 63 58 (76) 29 (38) 144 72
XN-4AI-U/I 64 (132) 16 (33) 108 27 124 31 112 28 144 36
XNE-8AI-U/I-4Pt/Ni 72 (120) 9 (15) 144 18 128 16 88 11 144 18
XN-2AO-I(0/4…20MA) 50 25 70 35 126 63 38 19 144 72
XN-2AO-U(-10/0…+10VDC) 46 23 70 35 126 63 38 19 144 72
XNE-4AO-U/I 64 (76) 16 (19) 108 27 64 16 36 9 144 36
XN-1CNT-24VDC 13 13 27 27 31 31 7 7 72 72
XN-1RS232 7 7 27 27 31 31 22 22 68 68
XN-1RS485/422 16 16 27 27 31 31 22 22 72 72
XN-1SSI 20 20 27 27 31 31 22 22 72 72
Notes Numeric values in brackets: max. number when diagnostic alarm disabled.
The supply module XN-BR-24VDC-D must be mounted immediately next to the gateway XN-GW-... to provide power
for the gateways.
