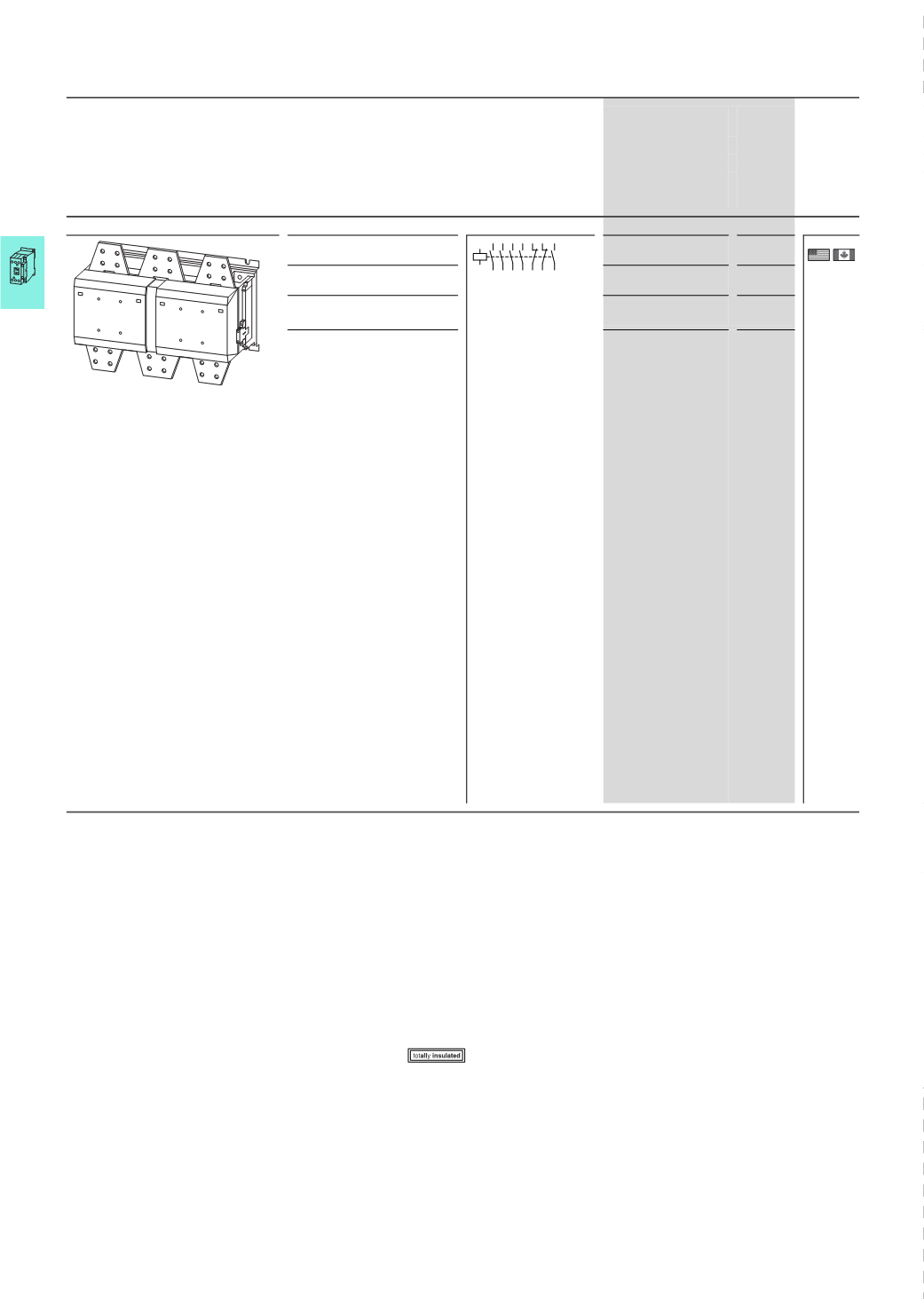

5/34 Contactors DILM, DILH
Comfort devices greater than 150 A
2010 CA08103002Z-EN
Conventional thermal current Ith= I e
AC-1 at 60 °C
Circuit symbol Part no. Price
See price
list
Std. pack
Open
Ith= Ie
A
DILH comfort devices AC-1
1400 DILH1400/22(RAW250)1)
272441
1 off
2000 DILH2000/22(RAW250)1)
272442
2200 DILH2200/22(RAW250)1)
111793
2600 DILH2600/22(RAW250)2)
125945
Notes For all contactors the following applies:
• 660 V, 690 V or 1000 V: do not reverse directly
• Integrated suppressor circuit in actuating electronics.
2
3 5 13 21 31
4 6 14 22 32
43
44
A1
A2
1
When operating contactors DILM580 to DILM1600 behind a frequency inverter or mains with
strong harmonic loads, the suppressor circuit on the load side must be removed.
During high-voltage tests, the suppressor circuit on the load-side for DILM580 to DILH2600 contactors
must be disconnected (see instructional leaflet).
Control voltages
RAW250 ≙ 230 V - 250 V AC/DC
Accessories Page
Auxiliary contact modules ￫5/40
Suppressor circuits on load side ￫5/65
Enclosures
DILM, DILH HPL05034EN
