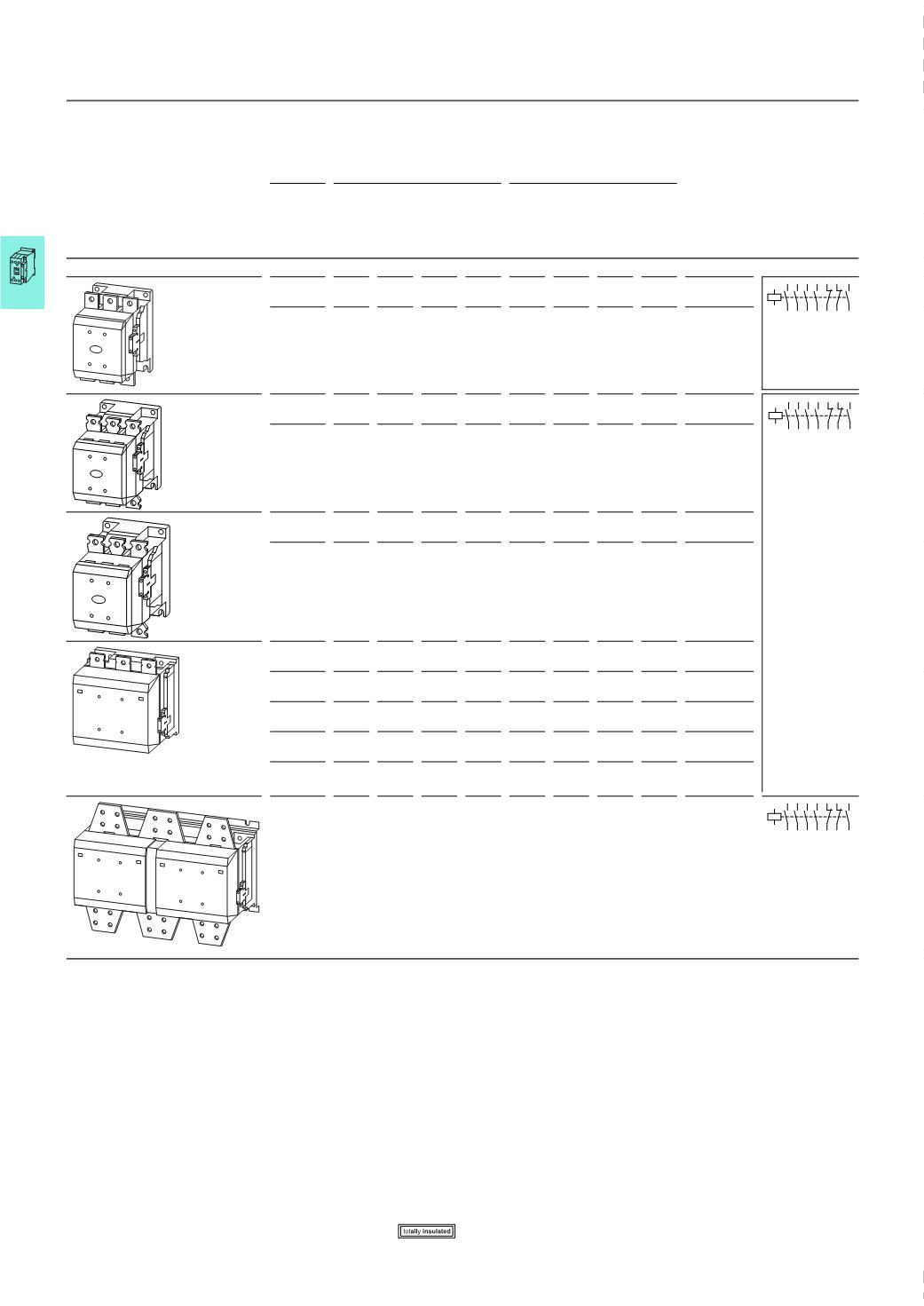

5/32 Contactors DILM, DILH
Comfort devices greater than 150 A
2010 CA08103002Z-EN
Comfortdevicesgreater than 150A
Rated
operational
current
Max. motor rating for
three-phase motors 50 - 60 Hz
Conventional
thermal
current Ith = Ie
AC-1 at 60 °C
Circuit symbol
AC-3 AC-3 AC-4 Open
380 V
400 V 220 V
230 V
380 V
400 V 660 V
690 V
1000 V 220 V
230 V
380 V
400 V 660 V
690 V
1000 V Ith = Ie
Ie P P P P P P P P A
A kW kW kW kW kW kW kW kW
Contactors, comfort DILM
185 55 90 140 108 41 75 102 77 275
225 70 110 150 108 51 90 110 77 315
250 75 132 195 108 62 110 160 109 330
300 90 160 195 132 75 132 160 109 350
400 125 200 344 132 92 160 283 132 500
500 155 250 344 132 112 200 344 132 700
580 185 315 560 600 143 250 440 509 800
650 205 355 630 600 161 280 494 509 850
750 240 400 720 800 181 315 556 678 900
820 260 450 750 800 209 355 633 678 1000
1000 315 560 1000 1100 260 450 780 1000 1000
1600 500 900 1600 1770 430 750 1300 1650 1800
Notes 1) Availability from August 2010.
Previous DILM185/22 to DILM300/22, see Online Catalog at
For all contactors the following applies:
• 660 V, 690 V or 1000 V: do not reverse directly
• Integrated suppressor circuit in actuating electronics.
2
3 5 13 21 31
4 6 14 22 32
43
44
A1
A2
1
2
3 5 13 21 31
4 6 14 22 32
43
44
A1
A2
1
2
3 5 13 21 31
4 6 14 22 32
43
44
A1
A2
1
When operating contactors DILM580 to DILM1600 behind a frequency inverter or mains with
strong harmonic loads, the suppressor circuit on the load side must be removed.
During high-voltage tests, the suppressor circuit on the load-side for DILM580 to DILH2600 contactors
must be disconnected (see instructional leaflet).
Control voltages
RA250 ≙ 110 V - 250 V AC/DC
RAW250 ≙ 230 V - 250 V AC/DC
Accessories Page
Auxiliary contact modules ￫5/40
Suppressor circuits on load side ￫5/65
Enclosures
Further actuating voltages ￫5/76
DILM, DILH HPL05032EN
