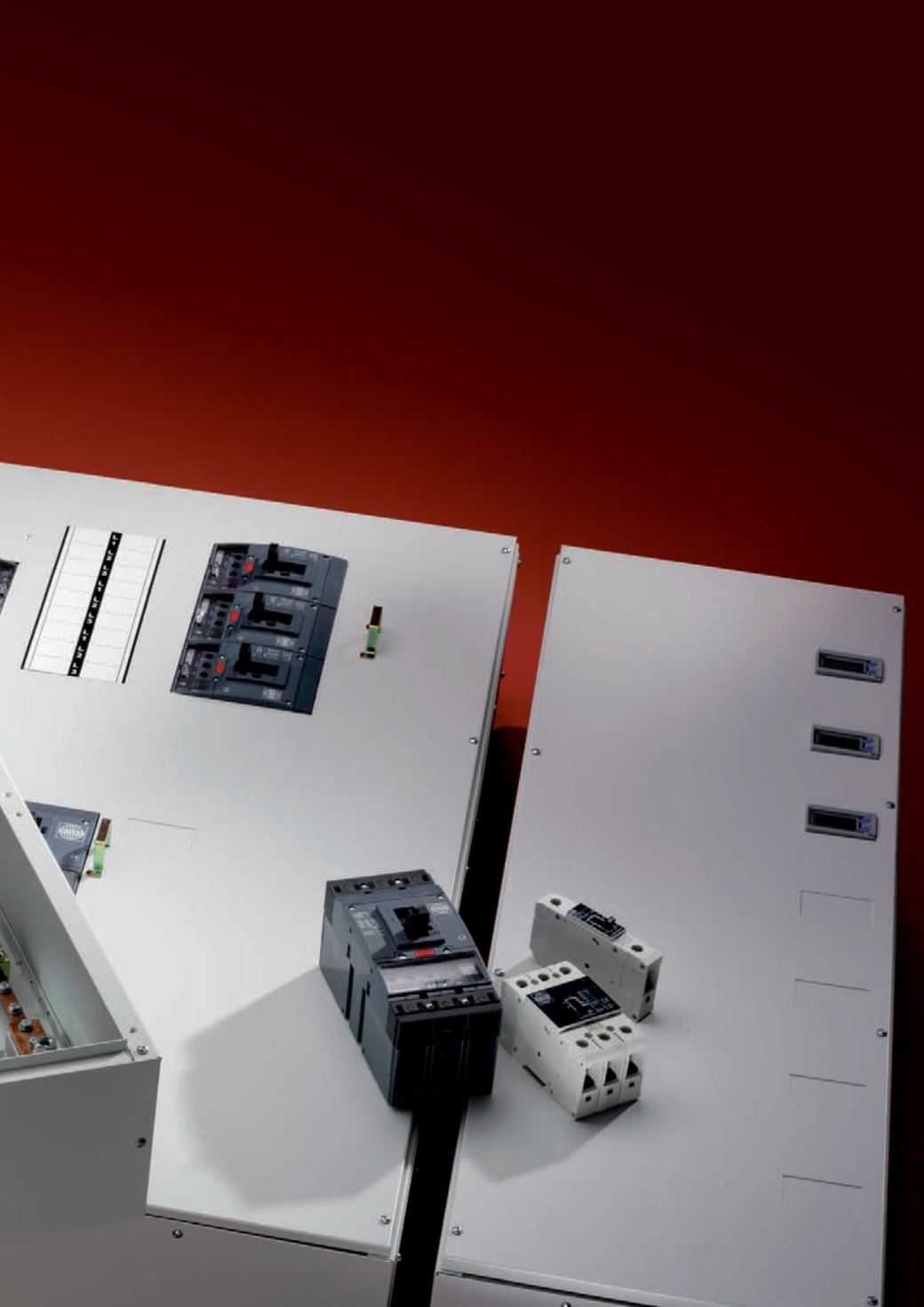

The NH250 Panelboard system offers 400A and 630A rated, fully shrouded busbar systems in
a modular enclosure, which includes integral incoming metering facility.
The enclosure system combined with either NHJ or NHGG MCCBs, outgoing metering and a
range of accessories, provides a competent flexible main or sub-main panelboard.
NH250 MCCB PANELBOARDS
l
NHJ250 MCCBs 40A-250A rating
J frame with a 36kA or 65kA fault
breaking capacity
l
NHGG125 MCCBs 15A-125A rating
G frame with a 25kA fault breaking
capacity
l
Comprehensive range of accessories
including sealable terminal covers
l
Fully shrouded busbars
l
Excellent access to N/E bars for cabling
l
Full or partial lockable doors
l
Conforms fully with BSEN 61439-2 form
3b type 2
