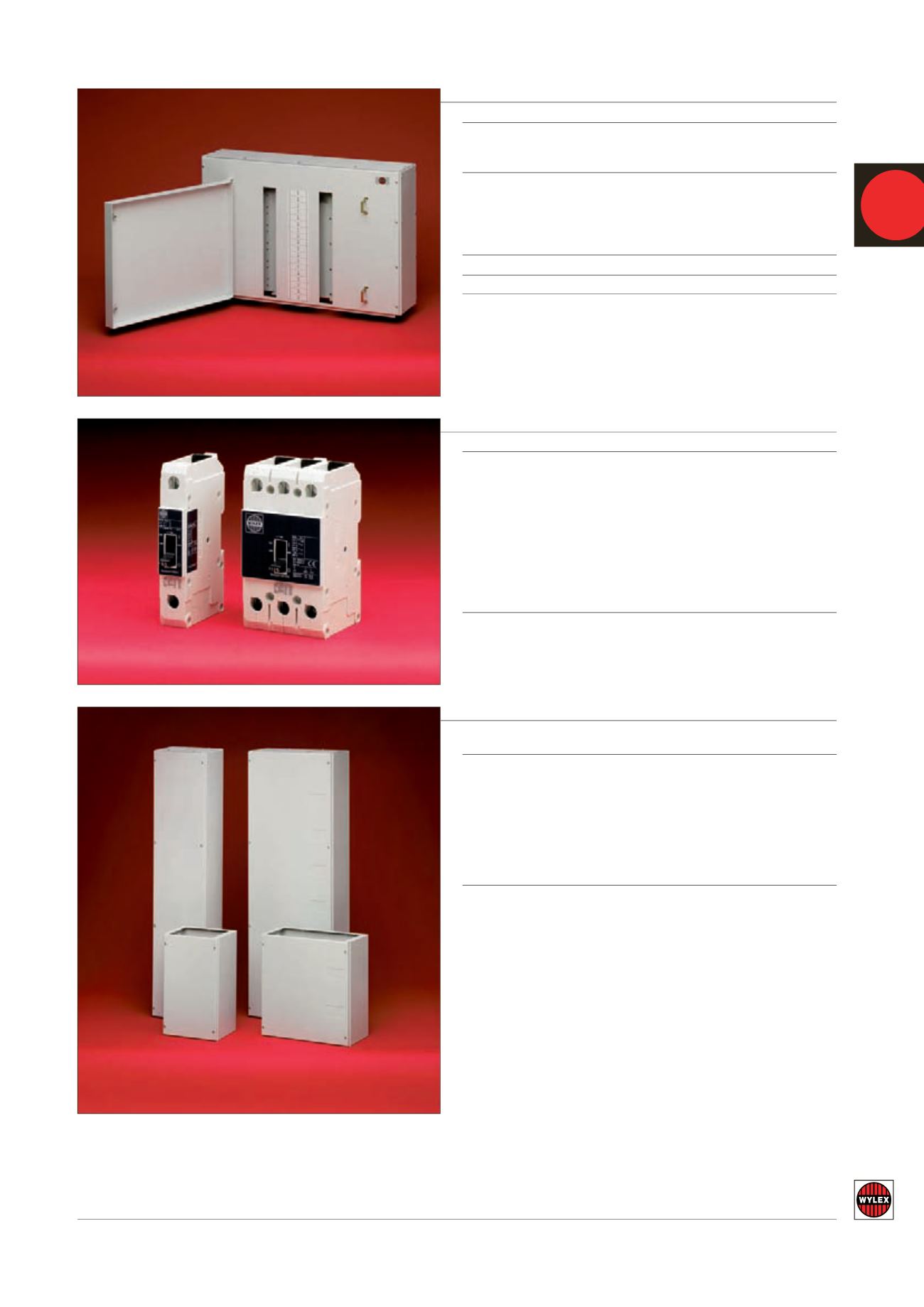

NH250 Panelboard G Frame Extension Units,
MCCBs & Cableways
NH250 ADD-ON EXTENSION UNITS
DESCRIPTION
400A CAT REF.
630A CAT REF.
4Way G Frame Extension Unit
NHPBG4W400AU NHPBG4W630AU
8Way G Frame Extension Unit
NHPBG8W400AU NHPBG8W630AU
12Way G Frame Extension Unit
NHPBG12W400AU NHPBG12W630AU
Fault rating:
25kA for 1 sec
25kA for 1 sec
Outgoing MCCB G Frame selection see below.
DESCRIPTION
400A CAT REF.
630A CAT REF.
8Way J Frame Extension Unit
NHPBJ8W400AU NHPBJ8W630AU
Fault rating:
35kA for 1 sec
50kA for 1 sec
Outgoing MCCB J Frame selection page 42.
CABLEWAYS
STANDARD
METER KNOCK-OUTS
CAT REF.
CAT REF.
DESCRIPTION
NHPBJ2CW NHPBJ2MCW
2Way Panelboard
NHPBJ4CW NHPBJ4MCW
4Way Panelboard
NHPBJ6CW NHPBJ6MCW
6Way Panelboard
NHPBG4CW NHPBG4MCWA
4Way G Frame Extension
NHPBG8CW NHPBG8MCWA
8Way G Frame Extension
NHPBG12CW NHPBG12MCWA
12Way G Frame Extension
NHPBJ8CW NHPBJ8MCWA
8Way J Frame Extension
NHPBG12W630AU
NHPBJ4CW
NHPBG8CW
NHPBJ4MCW
NHPBG8MCW
OUTGOING G FRAME MCCBs
SINGLE POLE CAT REF.
TRIPLE POLE CAT REF. DESCRIPTION
NHGGPCB151
NHGGPCB153 15A MCCB
NHGGPCB201
NHGGPCB203 20A MCCB
NHGGPCB251
NHGGPCB253 25A MCCB
NHGGPCB301
NHGGPCB303 30A MCCB
NHGGPCB401
NHGGPCB403 40A MCCB
NHGGPCB501
NHGGPCB503 50A MCCB
NHGGPCB601
NHGGPCB603 60A MCCB
NHGGPCB801
NHGGPCB803 80A MCCB
NHGGPCB1001
NHGGPCB1003 100A MCCB
NHGGPCB1251
NHGGPCB1253 125A MCCB
NHGGPCB201 NHGGPCB1253
