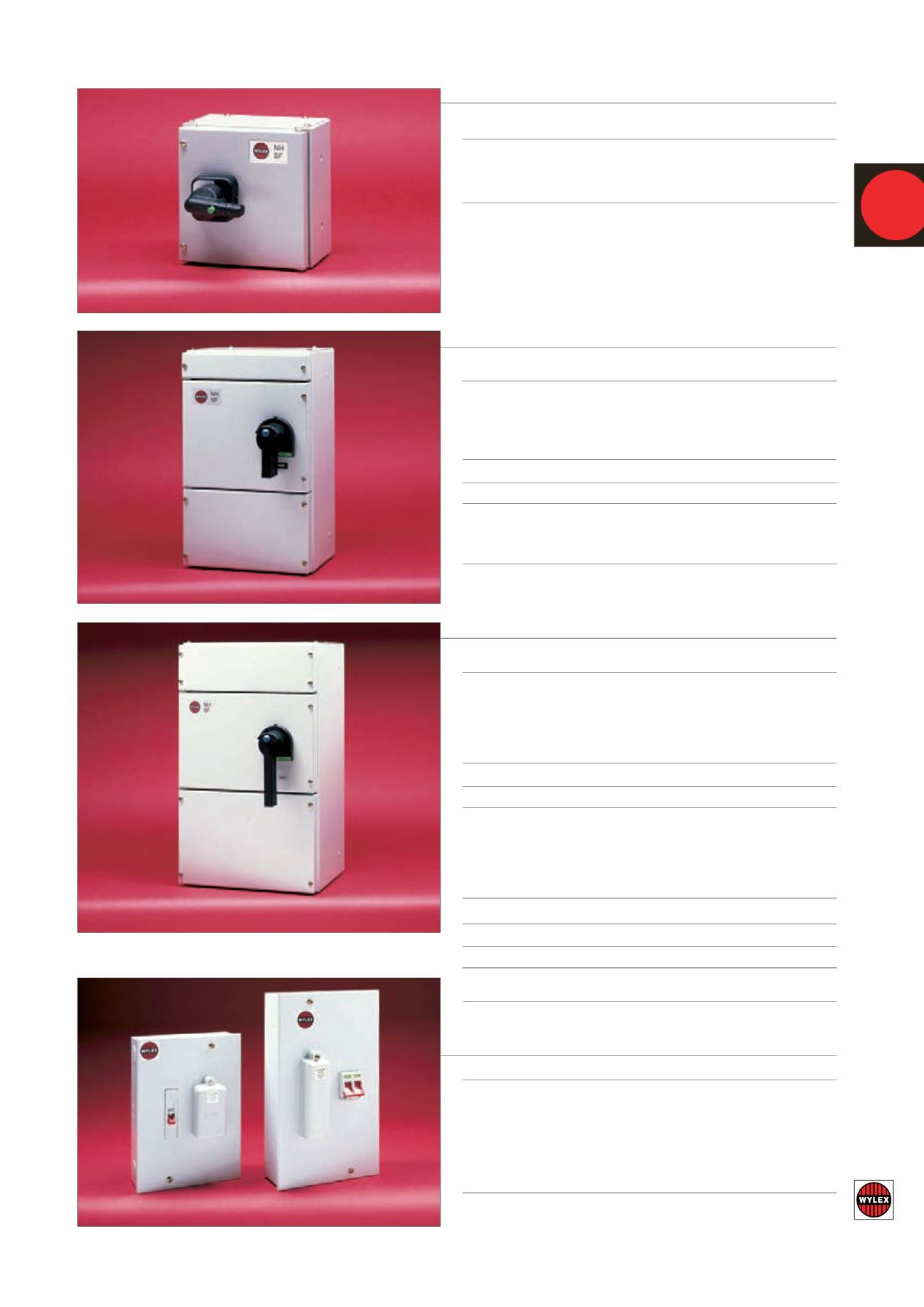

NH Fuse Combination Units & Isolator Switches
NHSPSF32
NHTPSF63
NHTPSF160
NH FUSE COMBINATION UNIT 20A-32A
SUPPLIED
CAT REF. AMPERAGE MODULES TYPE WITH FUSES
NHSPSF20 20A 4 SP & N YES
NHTPSF20 20A 4 TP & N YES
NHSPSF32 32A 4 SP & N YES
NHTPSF32 32A 4 TP & N YES
Fuse Combination Units Technical Specification
EN 60947-3
IEC 947-3
80kA RMS Fused Short Circuit Capacity
415V ac RatedVoltage
Full Uninterrupted Duty
AC23A Utilisation Category
NH FUSE COMBINATION UNIT 63A-125A
SUPPLIED
CAT REF.
AMPERAGE
MODULES
TYPE
WITH FUSES
NHSPSF63
63A
5
SP & N
YES
NHTPSF63
63A
5
TP & N
YES
NHSPSF100
100A
5
SP & N
YES
NHTPSF100
100A
5
TP & N
YES
NHTPSF125
125A
6
TP & N
YES
ACCESSORIES
CAT REF.
DESCRIPTION
NHCIL2 63A Copper Isolator links
NHCIL3 100A to 200A Copper Isolator links
NHCSB2 63A to 100A Cable Spreader Box
NHCSB3 125A Cable Spreader Box
For fuse types see page 50
NH FUSE COMBINATION UNIT 160A-800A
SUPPLIED
CAT REF.
AMPERAGE
MODULES
TYPE
WITH FUSES
NHTPSF160
160A
6
TP & N
NO
NHTPSF200
200A
6
TP & N
NO
NHTPSF315
315A
8
TP & N
NO
NHTPSF400
400A
8
TP & N
NO
NHTPSF630
630A
12
TP & N
NO
NHTPSF800
800A
12
TP & N
NO
ACCESSORIES
CAT REF.
DESCRIPTION
NHCIL3
100A to 200A Copper Isolator links
NHCSB3
125A to 200A Cable Spreader Box
NHCIL4
315A & 400A Copper Isolator links
NHCSB4
315A & 400A Cable Spreader Box
NHCIL5
630A & 800A Copper Isolator links
NHCSB5
630A & 800A Cable Spreader Box
For fuse types see page 50
BUS BAR CHAMBER
CAT REF. AMPERAGE MODULES TYPE
NHSFBBC400 400A 16 TP & N
NHSFBBTM250 250A Each Busbar Terminal
Cable spreading room is allowed for at one end
only.Tofit a 4 core cable at
both ends an additional cable spreader box will be required.
160CM 110M
METAL-SWITCH FUSE
CAT REF. CURRENT RATING NO. OF WAYS
106 45A 1
106RED 45A 1
108M 60A 1
160CM* 60A 1
110M/63* 63A 1
110M/80* 80A 1
110M* 100A 1
*Supplied complete with cartridge fuse
