42 / 81
42

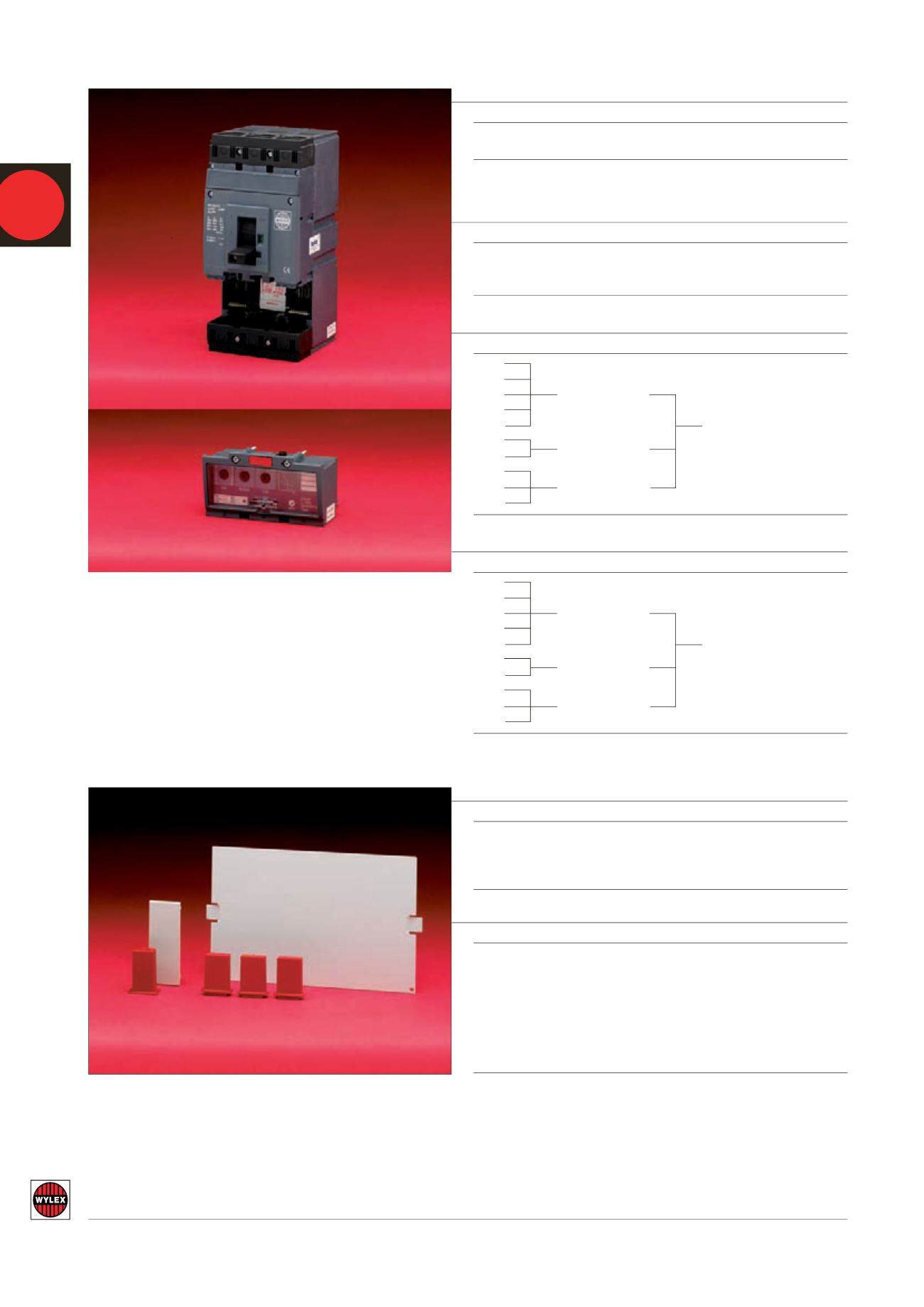

OUTGOING J FRAME MCCBs
CAT REF.
DESCRIPTION
NHJ2503VTX
36kA ratedTP MCCBs 250ATP Switching Unit *
NHJS2503VTX
65kA ratedTP MCCBs 250ATP Switching Unit *
*The switching unit must be fitted with a Plug-In Overcurrent Release module
PLUG-IN OVERCURRENT RELEASE MODULES
CAT REF.
DESCRIPTION
NHJ401003ELI
40A - 100A Overcurrent Release
NHJ631603ELI
63A - 160A Overcurrent Release
NHJ1002503ELI
100A - 250A Overcurrent Release
OUTGOING J FRAME MCCBS SELECTION 36kA
RATING
TRIP UNIT
36kA SWITCHING UNIT
40A
50A
63A
NHJ401003ELI
80A
100A
NHJ2503VTX
125A
NHJ631603ELI
160A
200A
220A
NHJ1002503ELI
250A
DOOR BLANKS
CAT REF.
DESCRIPTION
NHPB1TS
NHGG SP MCCB door blank with
busbar insulators
NHJ3
NHJTP MCCB door blank with busbar
insulators
ACCESSORIES
CAT REF.
DESCRIPTION
NHJVT3TS
3P terminal shields J frame
NHJLAUXCO
Auxiliary contact
NHJLUVR110230
110/230V undervoltage release
NHJLUVR230
230V undervoltage release
NHJLD
Handle padlock for J frame 250A
NHLLD
Handle padlock for L frame 400/630A
NHJLST2448
24/48 shunt trip
NHJLST230
230V shunt trip
NHPB1TS
NHJ3
NH250 Outgoing MCCBs
OUTGOING J FRAME MCCBS SELECTION 65kA
RATING
TRIP UNIT
65kA SWITCHING UNIT
40A
50A
63A
NHJ401003ELI
80A
100A
NHJS2503VTX
125A
NHJ631603ELI
160A
200A
220A
NHJ1002503ELI
250A
NHJ1002503ELI
NHJ2503VTX
+
+
