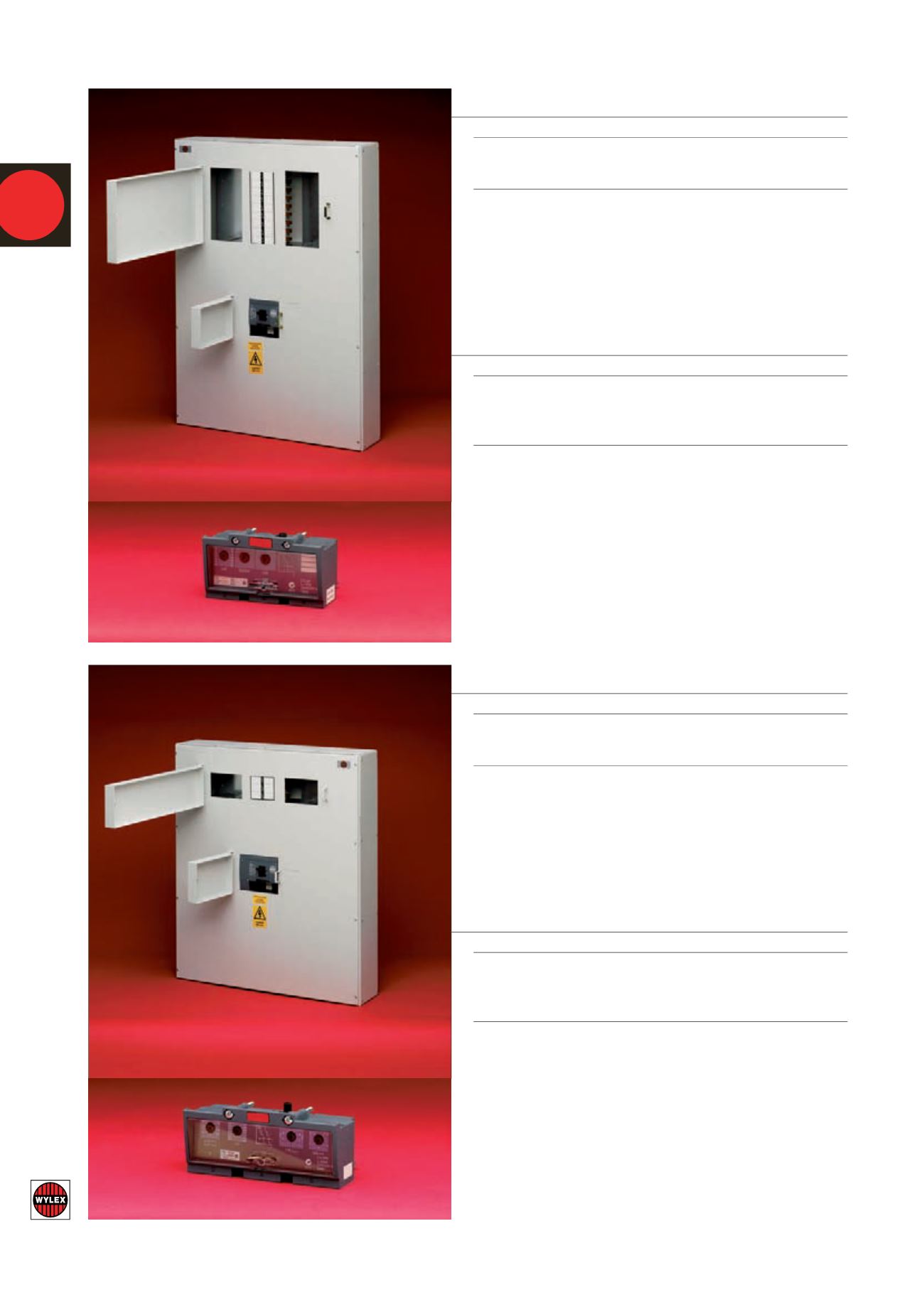

PANELBOARDWITHTP SWITCHING UNIT
(PLUG-IN MODULE REQUIRED)
DESCRIPTION
400A CAT REF.
630A CAT REF.
2Way
NHPBJ2W400MU3 NHPBJ2W630MU3
4Way
NHPBJ4W400MU3 NHPBJ4W630MU3
6Way
NHPBJ6W400MU3 NHPBJ6W630MU3
Fault rating:
35kA for 1 sec
50kA for 1 sec
Max cable lug connection:
32mm wide
32mm wide
see note below
PLUG-IN INCOMER OVERCURRENT RELEASE & SWITCH
DISCONNECTOR MODULES
DESCRIPTION
400A CAT REF.
630A CAT REF.
100A - 250A Overcurrent Release NHL1002503ELI
NHL1002503ELI
160A - 400A Overcurrent Release NHL1604003ELI
NHL1604003ELI
250A - 630A Overcurrent Release -
NHL2506303ELI
Switch Disconnector
NHL630SWDM NHL630SWDM
PANELBOARDWITH 4P SWITCHING UNIT
(PLUG-IN MODULE REQUIRED)
DESCRIPTION
400A CAT REF.
630A CAT REF.
2Way
NHPBJ2W400MU4 NHPBJ2W630MU4
4Way
NHPBJ4W400MU4 NHPBJ4W630MU4
6Way
NHPBJ6W400MU4 NHPBJ6W630MU4
Fault rating:
35kA for 1 sec
50kA for 1 sec
Max cable lug connection:
32mm wide
32mm wide
see note below
PLUG-IN INCOMER OVERCURRENT RELEASE & SWITCH
DISCONNECTOR MODULES
DESCRIPTION
400A CAT REF.
630A CAT REF.
100A - 250A Overcurrent Release NHL1002504ELI
NHL1002504ELI
160A - 400A Overcurrent Release NHL1604004ELI
NHL1604004ELI
250A - 630A Overcurrent Release -
NHL2506304ELI
Switch Disconnector
OnApplication
OnApplication
NHPBJ6W630MU3
NHPBJ2W400MU4
NHL1002503ELI
NH250 Panelboards
NHL160400ELI
The 400A/630A switching units accept cable lug connections up to 32mm wide.
Dependant on the size & type of cable lug selected the potential maximum cable
capacity of the cable lug can be up to 300mm
²
.
