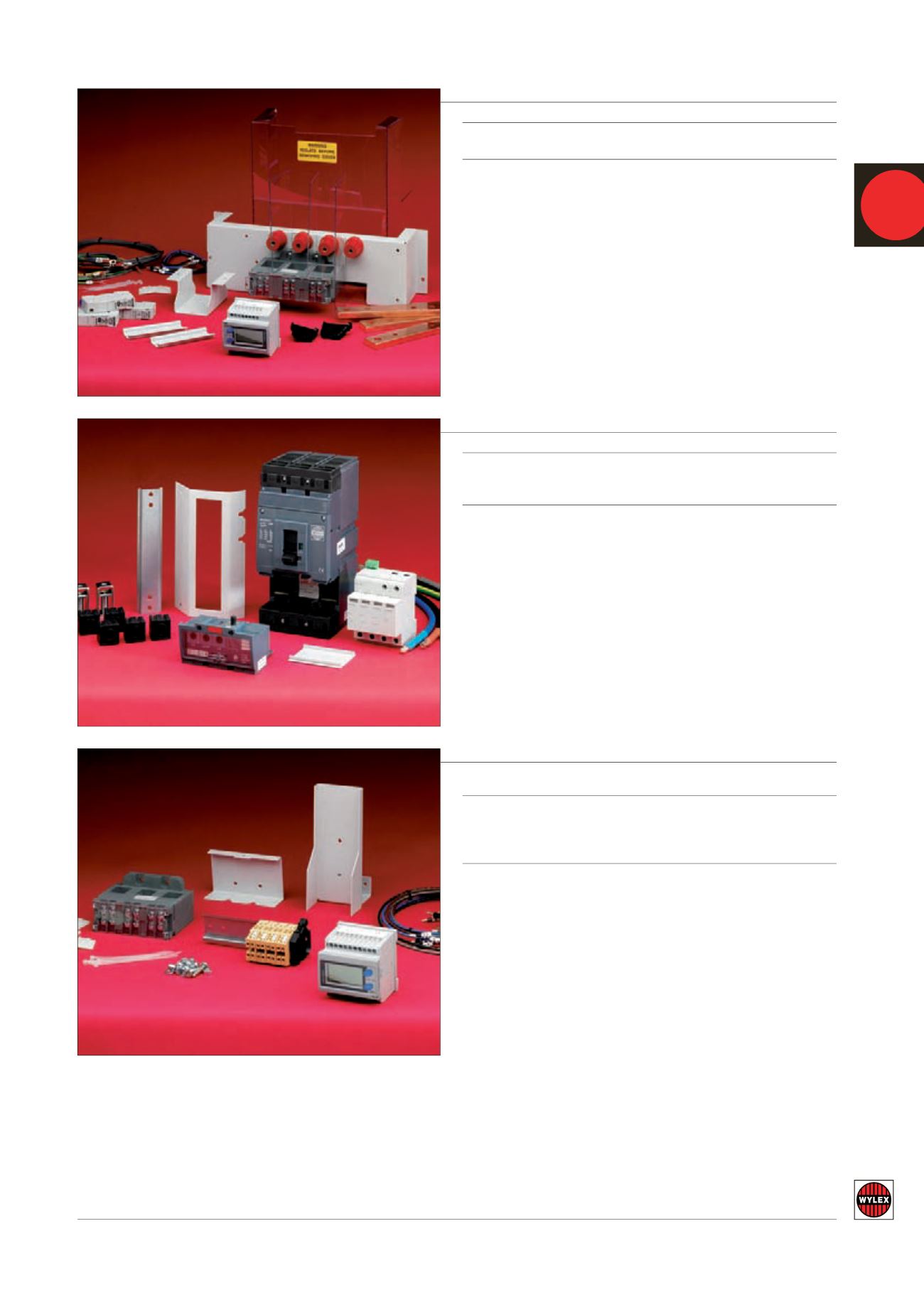

NH250 Panelboard Meter & Surge Arrester Kits
INTEGRAL LIGHTNING & SURGE ARRESTERS
CAT REF. DESCRIPTION
NHPBCSAR1/2 Combination Lightning & SurgeArrester Kit
NHPBLAR1 Lightning Arrester Kit (Type 1)
NHPBSAR2 SurgeArrester Kit (Type 2)
Each kit contains: Lightning, Surge or Combination arrester, MCCB, mounting plate
& cable loom. Supplied loose for assembly and connection by others.
Only one of these three options is possible per panelboard. MCCB mounted in
bottom left hand NHJ position.
OUTGOING METER KITS*
STANDARD
MID
CAT REF.
CAT REF.
DESCRIPTION
NHPBJOMK63 -
63A Energy Meter Kit - G frame
NHPBJOMK125 NHPBJMIDOMK125 125A Energy Meter Kit - G frame
NHPBJOMK160 NHPBJMIDOMK160 160A Energy Meter Kit - J frame
NHPBJOMK250 NHPBJMIDOMK250 250A Energy Meter Kit - J frame
Each kit contains: Digital meter offering Amps,Volts, kWh readout plus pulsed
output, block current transformer (MID option - 3 separate CTs), fuses, mounting
plates & cable looms. Supplied loose for assembly and connection by others.
* Each metering cableway of outgoing meter kits requires:
NHPBOCL
Meter KitVoltage Supply Cable Loom
Current transformer internal dimensions
Standard versions: MID versions:
63A & 125A - 16mmW x 31mm H slot 125A & 160A - 21mm diameter
160A & 250A - 21mmW x 25mm H slot 250A - 28mm diameter
NHPBSAR2
NHPBJOMK250
INTEGRAL INCOMING METER KITS
400A CAT REF.
630A CAT REF.
DESCRIPTION
NHPBJIMK400
NHPBJIMK630
Energy Meter Kit - Standard
NHPBJMIDIMK400 NHPBJMIDIMK630 Energy Meter Kit - MID
Each kit contains: Digital meter offering Amps,Volts, kWh readout plus pulsed
output, block current transformer, fuses, mounting plates & cable looms. Supplied
loose for assembly and connection by others.
Cable Connection Information:
30mm x 10mm copper bar - M10 connection
NHPBJIMK400
