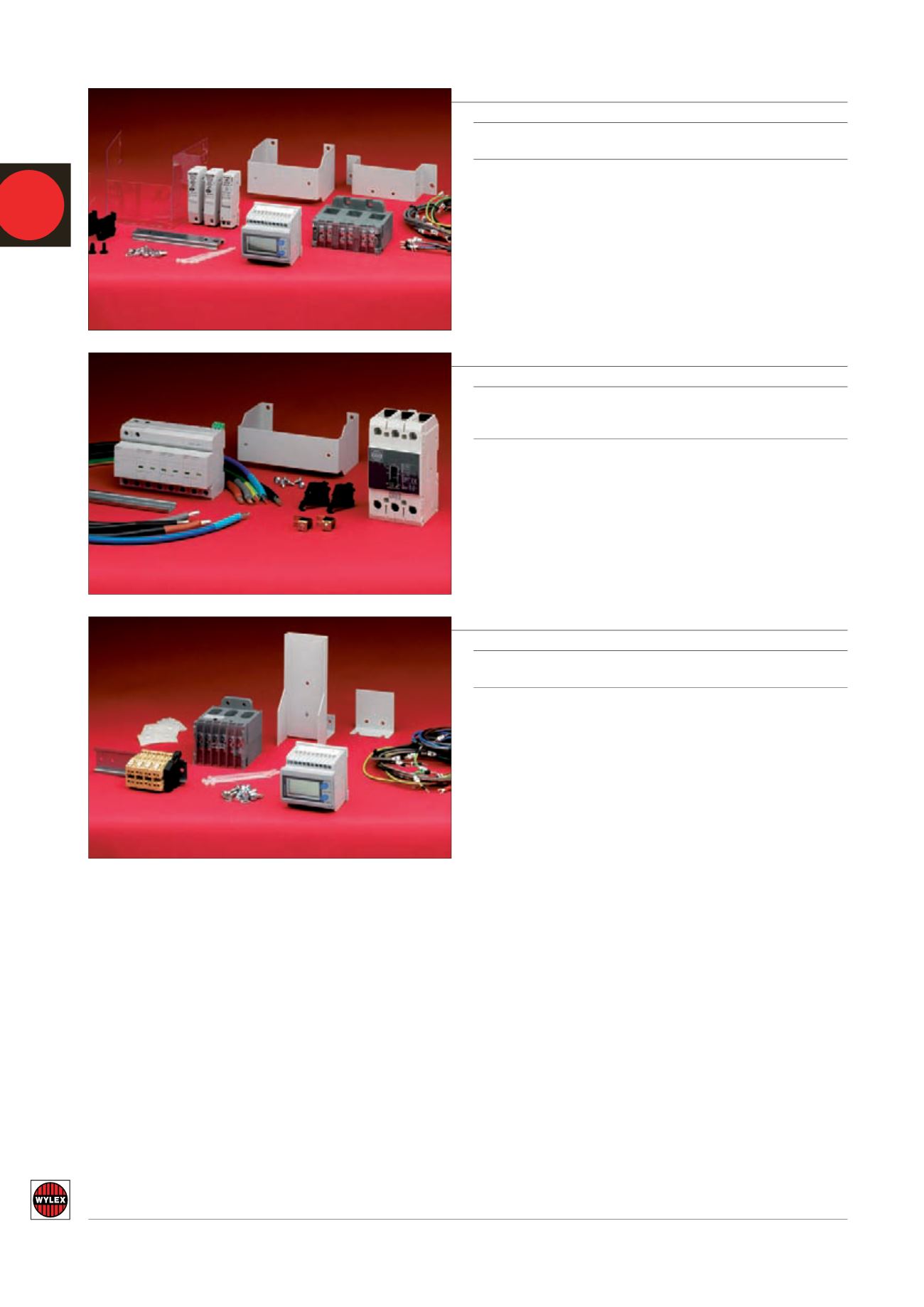

OUTGOING METER KITS *
STANDARD CAT REF. MID CAT REF. DESCRIPTION
NHPB63CTM - 63A Energy Meter Kit
NHPB125CTM NHPB125CTMID 125A Energy Meter Kit
* Each metering cableway of outgoing meter kits requires:
NHPBOCL
Meter KitVoltage Supply Cable Loom
Current transformer internal dimensions:
Standard versions:
MID versions:
63A & 125A - 16mmW x 31mm H slot 125A - 21mm diameter
INCOMING INTEGRAL METER KITS
250A CAT REF.
400A CAT REF.
DESCRIPTION
NHPB250CTINM NHPB400CTINM Energy Meter Kit - Standard
NHPB250CTINMID NHPB400CTINMID Energy Meter Kit - MID
Each kit contains: Digital meter offering Amps,Volts, kWh readout plus pulsed
output, block current transformer (MID option - 3CTs), fuses, mounting plates &
cable looms. Supplied loose for assembly and connection by others.
Current transformer internal dimensions:
StandardVersions: MIDVersions:
250A - 21mmW x 25mm H slot 250A - 28mm diameter
400A - 31mmW x 36mm H slot 400A - 31mmW x 36mm H slot
INTEGRAL LIGHTNING & SURGE ARRESTERS
CAT REF. DESCRIPTION
NHPBCLSA Combination Lightning & SurgeArrester Kit
NHPBLA Lightning Arrester Kit
NHPBSA SurgeArrester Kit
Each kit contains: Lightning, Surge or Combination arrester, MCCB, mounting plate
& cable loom. Supplied loose for assembly and connection by others. Only one of
these three options is possible per panelboard. MCCB mounted in bottom right
hand outgoing way.
NHPB250CTINM
NHPBCLSA
NHPB125CTM
