32 / 81
32

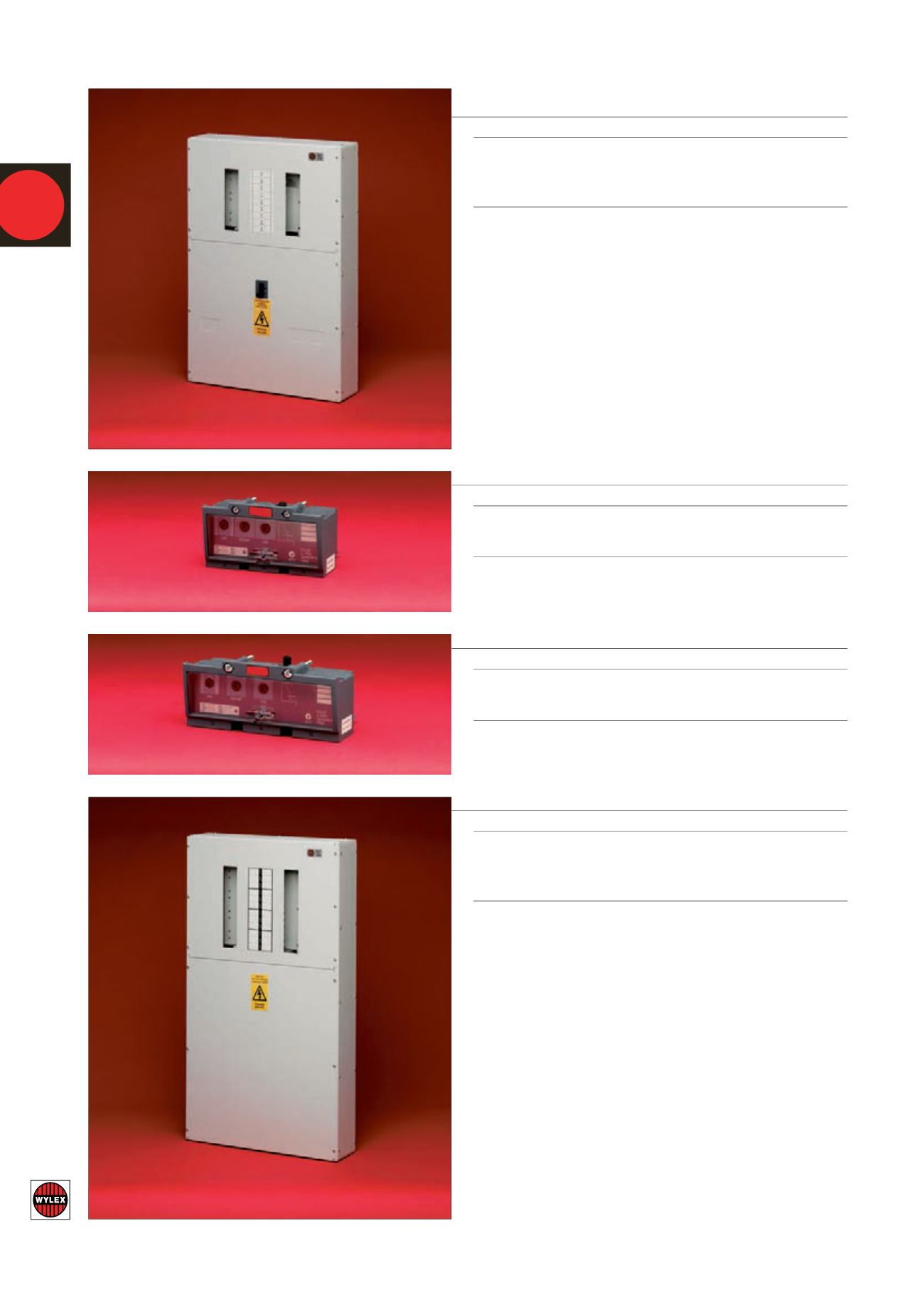

PANELBOARDWITHTP SWITCHING UNIT
(PLUG-IN MODULE REQUIRED)
DESCRIPTION
250A CAT REF.
400A CAT REF.
6Way
NHPBG6SW250
NHPBG6SW400
8Way
NHPBG8SW250
NHPBG8SW400
12Way
NHPBG12SW250 NHPBG12SW400
16Way
NHPBG16SW250 NHPBG16SW400
Fault rating:
25kA Icc
25kA for 1 sec
Max 4c Incoming Cu Cable Size:
150mm
²
see note below
Max cable lug connection:
see note below 32mm wide
DIRECT CONNECTED PANELBOARDS
DESCRIPTION
250A CAT REF.
400A CAT REF.
6Way
NHPBG6DC250
NHPBG6DC400
8Way
NHPBG8DC250
NHPBG8DC400
12Way
NHPBG12DC250 NHPBG12DC400
16Way
NHPBG16DC250 NHPBG16DC400
Fault rating:
25kA Icc
25kA for 1 sec
Max 4c Incoming Cu Cable Size:
see note below see note below
Available lug connection:
on 30mm wide Cu bar
M8
M10
NHPBG6SW250
NHPBG8DC400
NH125 Panelboards
PLUG-IN MODULES FOR 250A INCOMER
250A CAT REF.
DESCRIPTION
NHJ631603ELI
63A - 160A Overcurrent release
NHJ1002503ELI
100A - 250A Overcurrent release
NHJ2503SWDM
250A Switch disconnector
PLUG-IN MODULES FOR 400A INCOMER
400A CAT REF.
DESCRIPTION
NHL1002503ELI
100A - 250A Overcurrent release
NHL1604003ELI
160A - 400A Overcurrent release
NHL630SWDM
400A Switch disconnector
NHJ1002503ELI
NHL1604003ELI
The 400A switching unit accepts cable lug connections up to 32mm wide.
Dependant on the size & type of cable lug selected the potential maximum cable
capacity of the cable lug can be up to 300mm
²
.
