Residual Current Circuit Breakers with
Overload protection (RCBOs)
General Characteristics - Standard
No. of Pole
1P+ Solid Neutral
Specification Reference :
IEC 61009-1 ‘A’ type
Rated Residual Operating Current
IDn 10 & 30mA
Instantaneous Tripping Current
‘B’ & ‘C’ curve
Rated Voltage
Un Vac 240V~
Rated Insulation Voltage
Un Vac 500V
Rated Frequency
50Hz
Rated Short Circuit Capacity Icn
6kA/10kA
Rated Residual Making
Breaking Capacity
IDm 500A
Method of Mounting
(DIN Rail)
Degree of Protection
IP 20
Ambient Working Temperature
-5°C to + 55°C
Mechanical Endurance
(No. of Operations)
3000
Electrical Endurance
(No. of Operations)
2000
Trip Time (milli Second)
<40
Vibration Resistance
3g
General Characteristics - Compact
No of Pole
1P+ Solid Neutral
Specification Reference
IEC 61009 ‘A’ Type
Rated Voltage
Un Vac 240V~
Rated Insulation Voltage
Un Vac 500V
Rated Frequency
50Hz
Rated Short Circuit Capacity Icn
10kA
Degree of Protection
IP 20
Ambient Working Temperature
-5°C to + 55°C
Mechanical Endurance
(No. of Operations)
3000
Electrical Endurance
(No. of Operations)
2000
Trip Time (milli Second)
<40
Vibration Resistance
3g
Max Cable Capacity
Incoming - 35mm2
Outgoing - 10mm2
Recommended Torque
2Nm

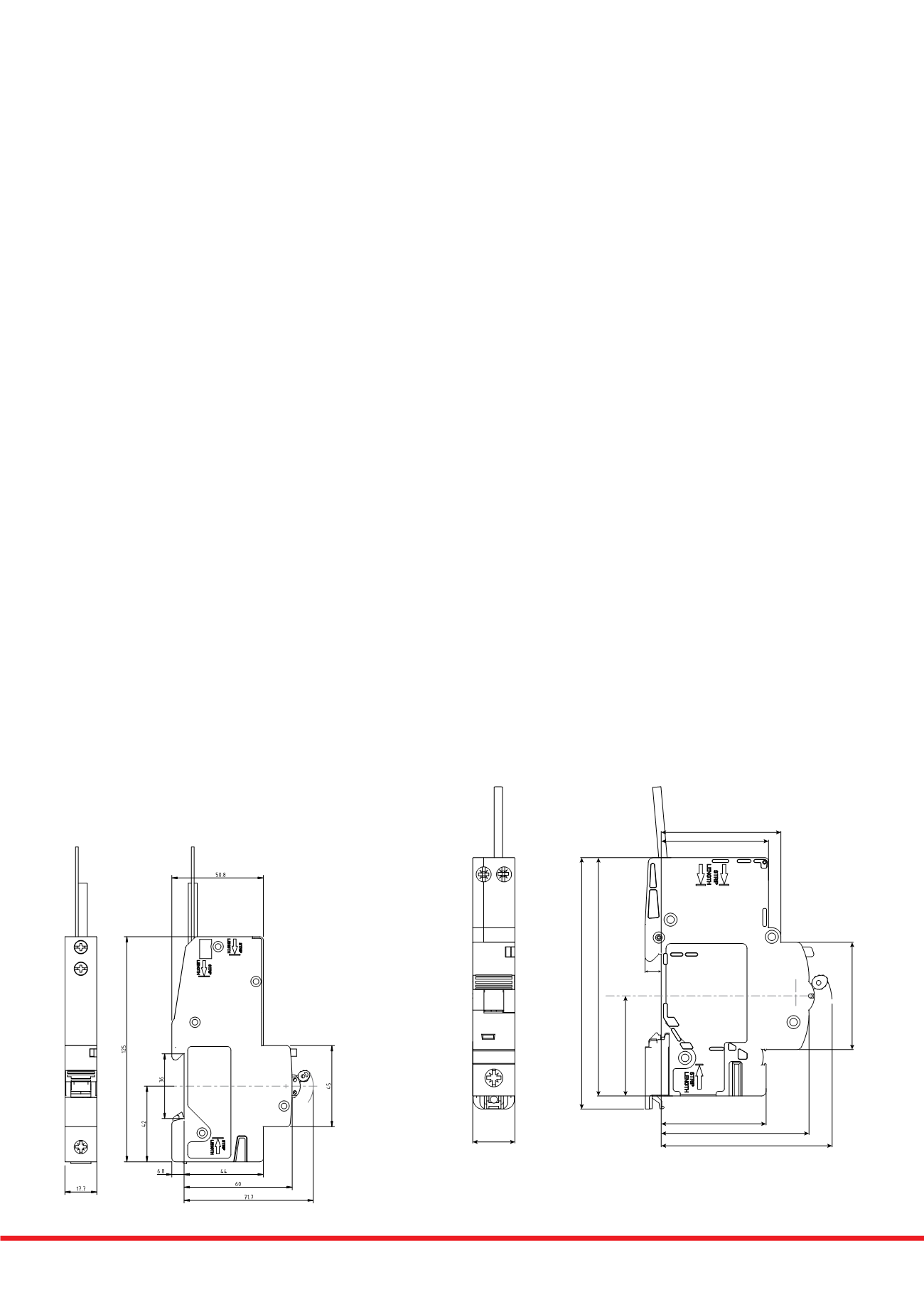

Standard RCBO Dimensions
Compact RCBO Dimensions
763,
45
6.8
105.5
100
62
45
42
50.2
71.7
17.7
