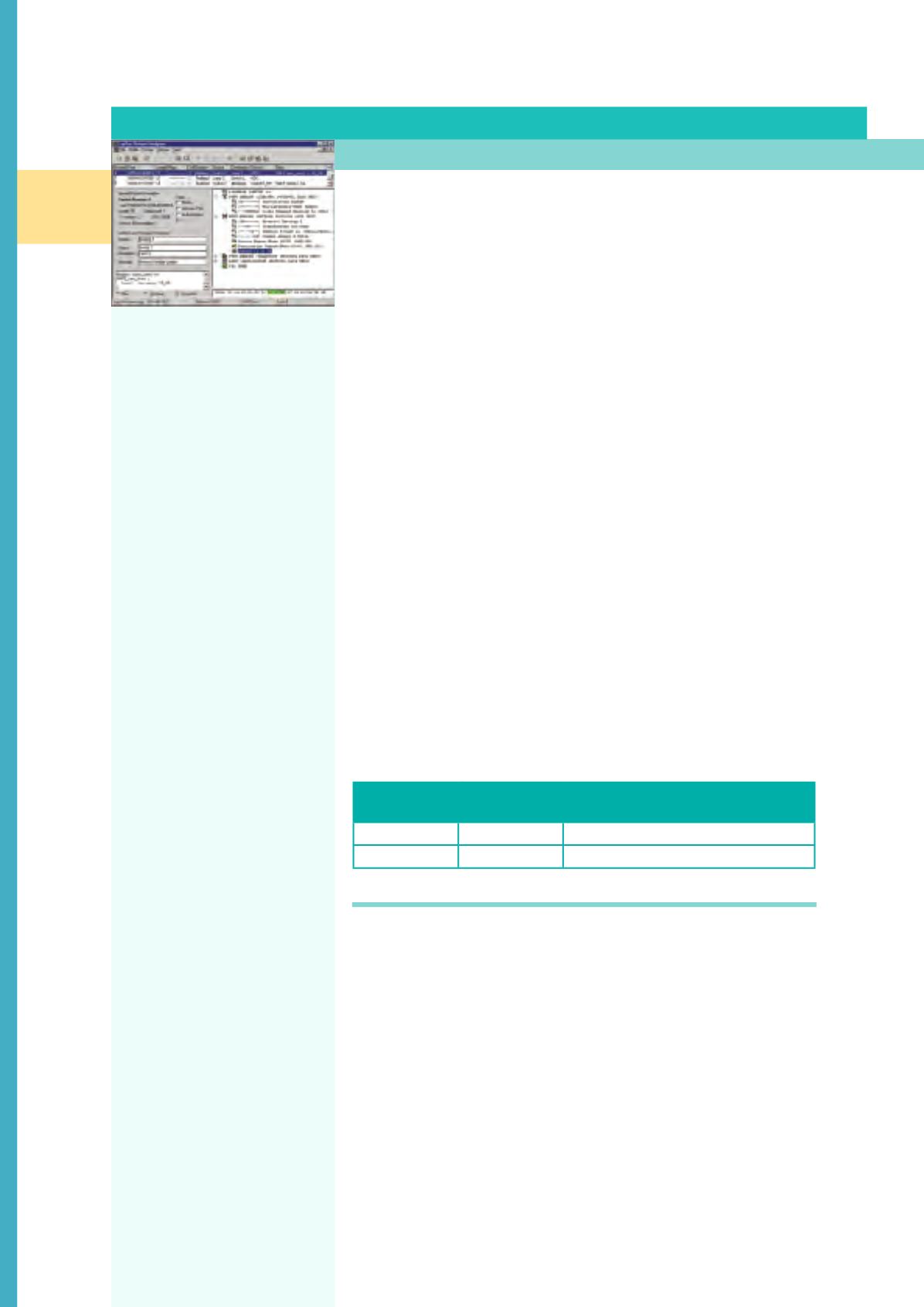

Network Infrastructure
LPA Protocol Analyzer
The family of LPA Protocol Analyzers listens on L
ON
W
ORKS
®
(EIA-709) or
L
ON
W
ORKS
®
over IP (EIA-852) networks and displays all recorded packets on
a PC screen. Thanks to its extended recording capability even intermittent
faults can be detected and recorded. The interpretation of an LNS
®
database
allows the display of meaningful node names and network variable names.
Together with L-IP Internet Routers or NIC709-IP network interfaces, the
LPA software can record packets even from remote network channels.
The intuitive and easy to use LPA software runs on all NIC709’s and the LPA-
IP software runs on the NIC-852. Each LPA or LPA-IP software license must
be registered for one NIC.
For remote protocol analysis, the LPA software can be registered for an
NIC709-IP, and the LPA-IP software can be registered for a NIC-852 to
analyze the channel behind an L-IP or a NIC709-IP. The PC running either
the LPA or the LPA-IP software is connected through its Ethernet port over
the Intranet/Internet/VPN with the NIC709-IPs or the L-IP routers. Up to
8 channels can be analyzed concurrently using NIC709-IPs and up to 32
channels can be analyzed using L-IPs. The software runs under Windows
2000/XP.
LPA-IP
•
Protocol analyzer software for EIA-852 (IP)
•
NIC852 USB key for the PC
LPA-SET-USB
•
Protocol analyzer software for EIA-852 (IP) and for EIA-709
•
NIC852 USB key for the PC
•
NIC709-USB key for the PC
LPA-SET-IP
FUNCTIONAL FEATURES
•
Runs on Windows 2000/XP
®
•
Supports the LOYTEC
Multiplexed Network Interface
Technology (MNI)
•
The LPA software supports
both EIA-709 and L
ON
M
ARK
®
IP-852 on Ethernet
•
Remote LPA function with
LPA-IP and L-IP
•
Online packet monitoring
•
High resolution packet time-
stamping
•
Comprehensive packet filter
functions on each layer of the
network protocol
•
Packet interpretation down to
bit-level
•
Conversion of network
addresses and variables into
symbolic names
•
Interpretation of SNVTs
(Standard Network Variable
Types), network management,
and diagnostic messages
•
LNS database interpretation
•
Error tracking in packets with
protocol errors
•
Various forms of packet
visualization
•
Extensive packet statistics
(short packets, CRC errors,
packets/s, etc.)
•
Extended packet recording
capability
•
Storing and exporting packet
logs (e.g. to Excel spread-
sheets)
DESCRIPTION
9-073-0046-0 LON
®
protocol analyzer (LPA-IP)
9-073-0047-0 LON
®
protocol analyzer(LPA-SET-USB)
TAC
Part No.
Loytec
Part No.
Description
9-073-0046-0 LPA-IP
LON
®
protocol analyzer (LPA-IP)
9-073-0047-0 LPA-SET-USB LON
®
protocol analyzer (LPA-SET-USB)
