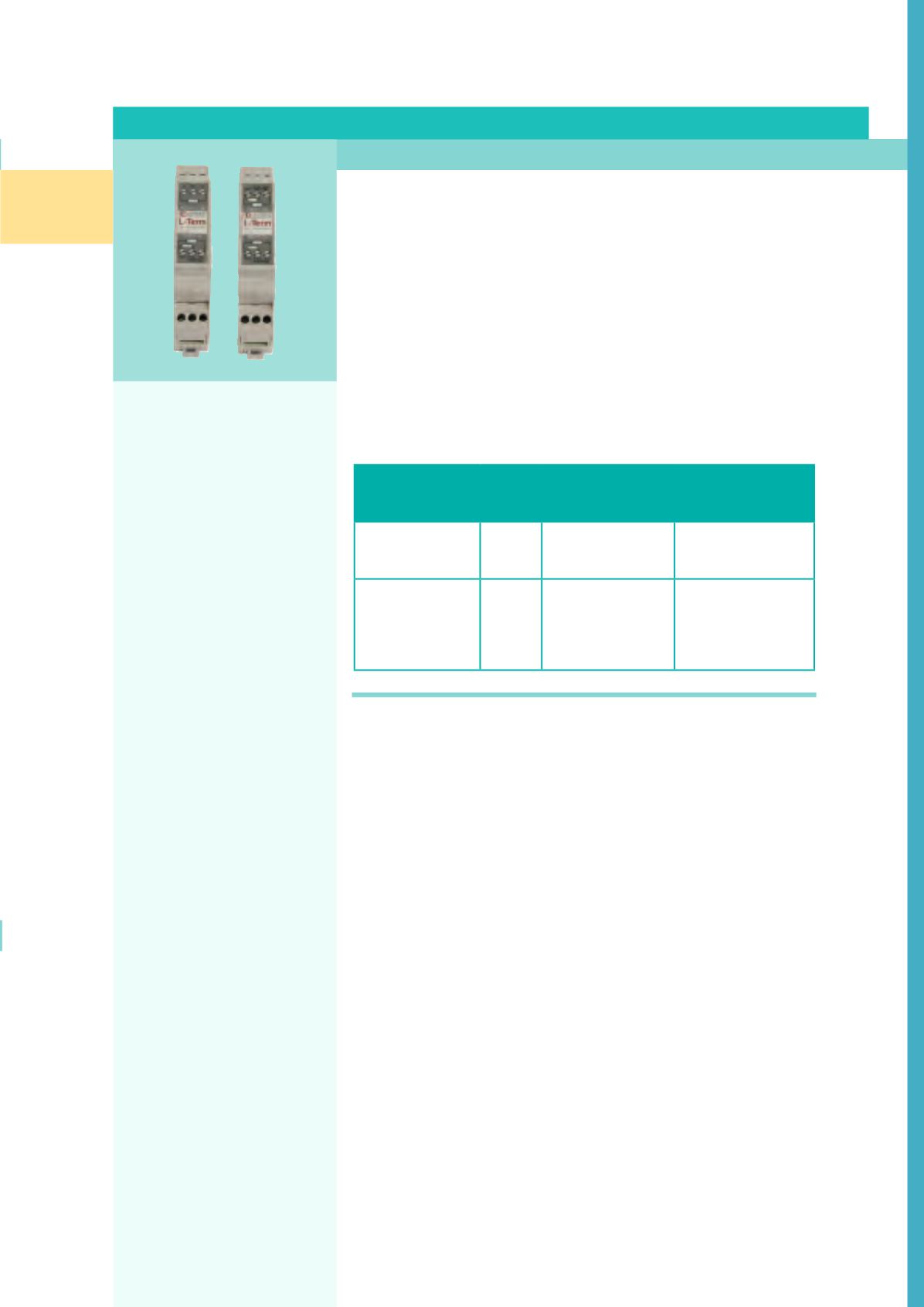

Network Infrastructure
DESCRIPTION
9-073-0068-0 LON
®
term. for 2 TP/FT-10, LT-33
9-073-0069-0 LON
®
term. TP-1250 /-10, LT-13
FUNCTIONAL FEATURES
•
Supports bus and free
topology termination
•
TP/FT-10 side can also be
used to terminate link power
channels
•
screw terminals
(0.5 - 2.5 mm
2
)
•
17 L x 90 W x 58mm H
(0.7” x 3.5” x 2.3”)
•
1 TE DIN-rail (EN 50 022)
mountable
TP/FT-10,TP/LPT-10, and TP/XF-1250 networks need to be terminated us-
ing a defined network terminator. L-Term offers two standard network termi-
nators in one slim housing, which makes them a perfect solution to be used
with the active network infrastructure products (e.g. L-IP, L-Switch, etc.).
The LT-33 network terminator can be used to terminate two TP/FT-10 and
TP/LPT-10 channels in bus or in free topology.
The LT-13 network terminator can be used to terminate one TP/XF-1250
and one TP/FT-10 or TP/LPT-10 channel.
L
ON
W
ORKS
®
Terminal Units
TAC
Part No.
Loytec
Part
No.
Description
Alternative
Description
9-073-0068-0
LT-33 LON
®
terminal for
2 TP/FT-10, LT-33
LON
®
terminal, 2
x TP/FT-10 (bus or
free topology)
9-073-0069-0
LT-13 LON
®
terminal TP-
1250/-10, LT-13
LON
®
terminal, 1
x TP/XF-1250, 1 x
TP/FT-10
(bus or free
topology)
