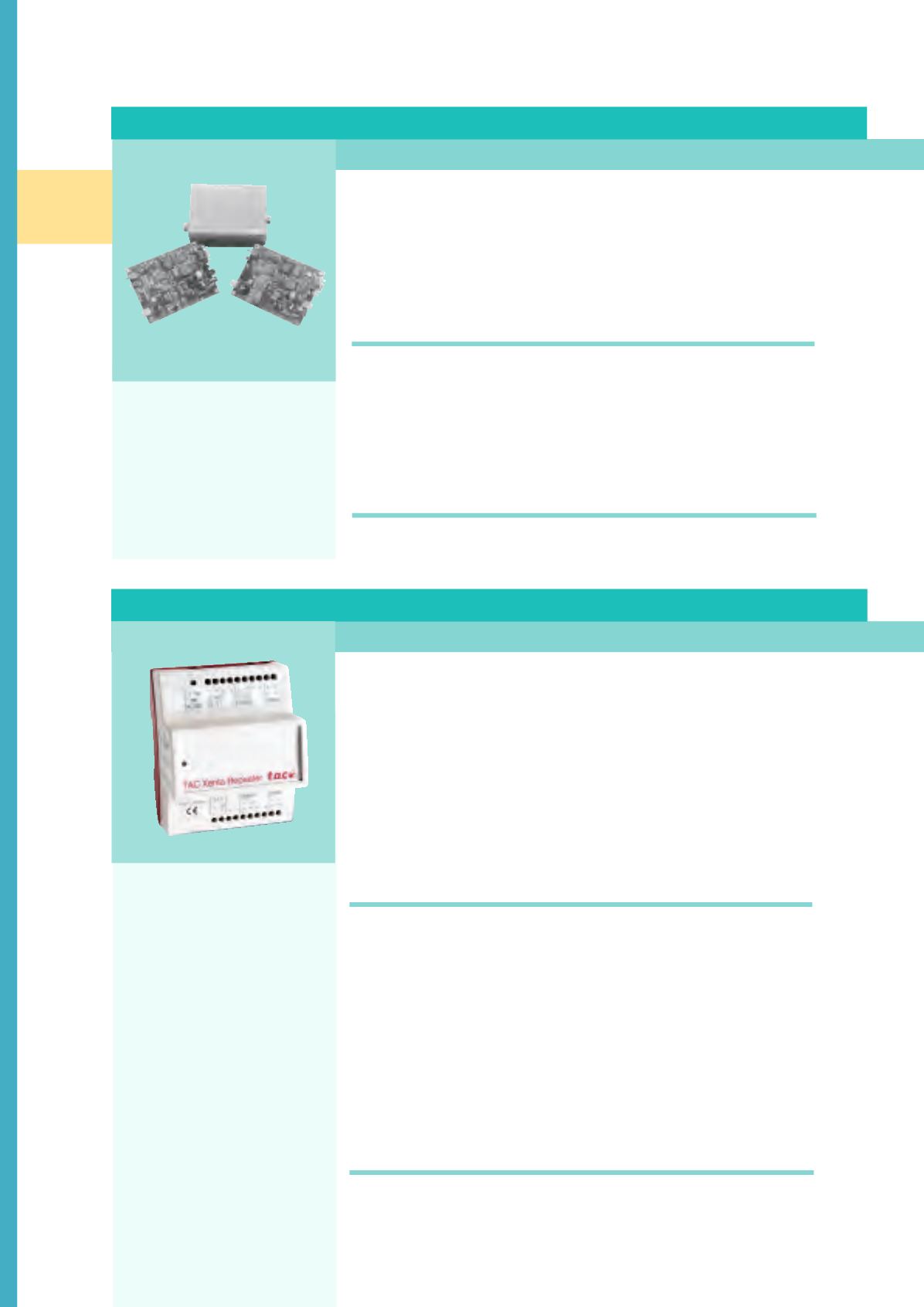

Serial L
ON
W
ORKS
®
Adapter
External L
ON
W
ORKS
®
interface for serial connection between equipment such
as PCs and modems and the L
ON
W
ORKS
®
network. Can be wall mounted.
•
Interface between L
ON
W
ORKS
®
and RS-232 interface
•
External device, no plug-in slot in PC necessary
SPECIFICATIONS
Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 - 30 V AC/DC
Power consumption . . . . . . . . . . . . . . . . . . . . . . . . .250 mA
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138 x 101 x 34mm
(5.4” x 5” x 1.3”)
Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-pole DB-9, EIA-232
Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .L
ON
W
ORKS
®
, FTT-10
DESCRIPTION
9-073-0012-0 SLTA-10 FTT-10
Network Infrastructure
TAC Xenta L
ON
W
ORKS
®
Repeater
FTT-10, 24 V
A passive signal amplifier for extending the maximum bus length (twisted
pair) and for setting up networks with more than 64 nodes.
•
Passive signal amplification
•
Completely network transparent
•
Modular device design via TAC Xenta 400 enclosure
•
Din rail or wall mounting
SPECIFICATIONS
Operating voltage . . . . . . . . . . . . . . . . . . . . 24 V AC ±20%, 50 / 60 Hz
Power consumption . . . . . . . . . . . . . . . . . . . < 1.5 VA
Approved. ambient temp . . . . . . . . . . . . . . . 0 - 50°C
Max. no. of nodes . . . . . . . . . . . . . . . . . . . . 64 (FTT-10 transceiver)
Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . FTT-10, screw terminal
Dimensions incl. base . . . . . . . . . . . . . . . . . . 90 x 110 x 77mm
(3.5” x 4.3” x 3”)
Enclosure rating . . . . . . . . . . . . . . . . . . . . . . IP 20
For further specifications, see technical data sheet.
DESCRIPTION
0-073-0912-0 TAC Xenta FTT-10 Repeater 24V
0-073-0902-0 TAC Xenta 400 terminal part
FUNCTIONAL FEATURES
•
Easy access to a LonWorks
network from an RS232 port
•
24 V AC/DC powered
FUNCTIONAL FEATURES
•
Easy mounting on DIN rail
•
No configuration needed
•
Extends the network
•
Extends the number of nodes
to 128 on a FTT-10 channel
