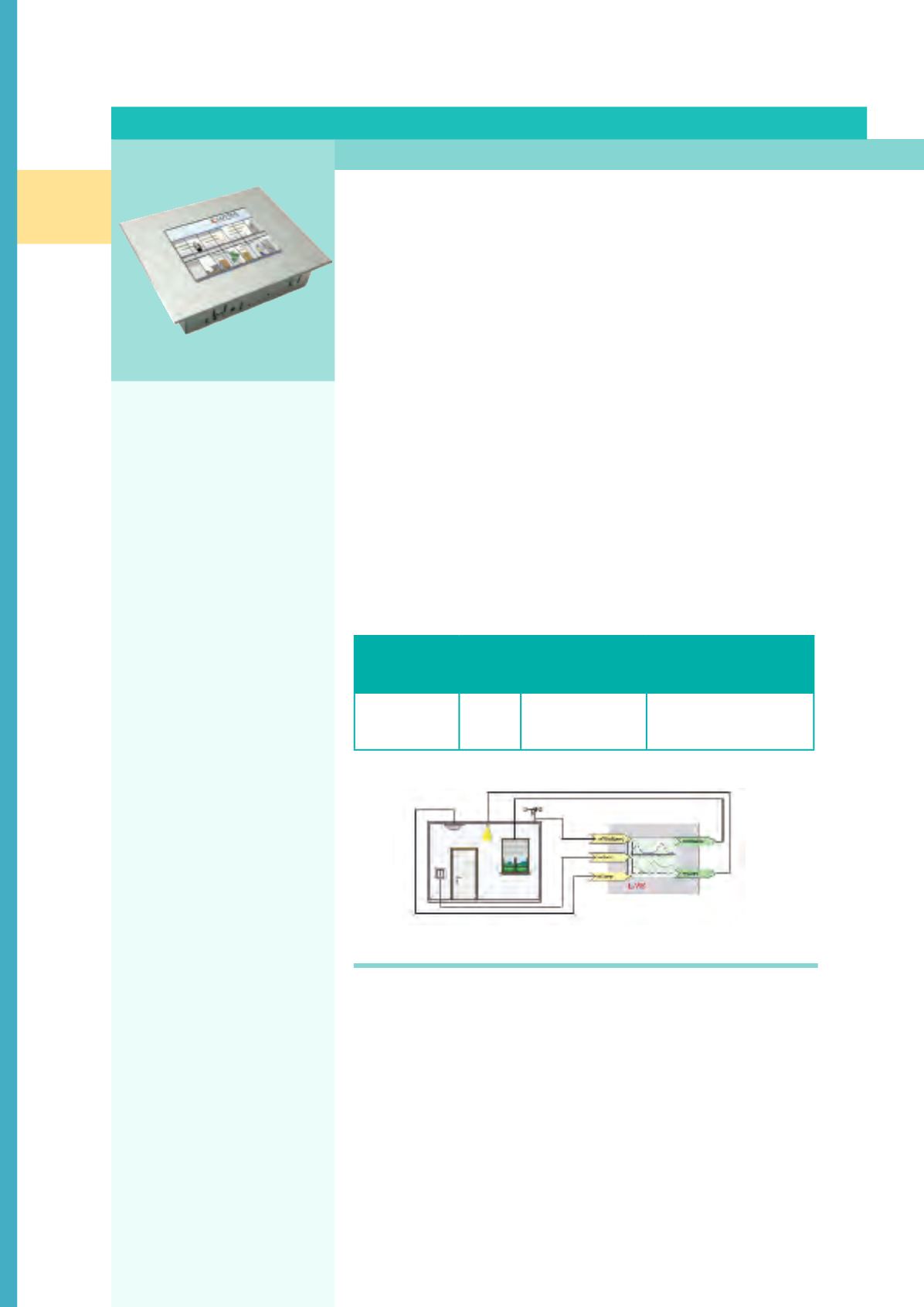

Network Infrastructure
DESCRIPTION
9-073-0070-0 LVIS-3E100
L
ON
W
ORKS
®
LCD Display
L-VIS impresses by its timeless design, harmonic integration into modern and
historical architecture as well as its extremely user friendly concept.
Any information can be shown in a pleasing style on the high resolution
320x240 color LCD touch display. The touch display offers easy navigation
through the menu structure, but is also used to set temperatures, select light
scenarios, move sun blinds, or send updates to network variables in the net-
work. Network variables are dynamically created using LNS 3.x based tools
(e.g. NL-220, ALEX, LonMaker
®
, etc.). The LNS plug-in supplied with the
unit is used to create the menu structure and to design graphical pages in no
time, which can be downloaded into L-VIS via the network connection. The
LCD touch display shows numbers, text, bar charts, symbols, graphics, trend
logs, and many other items in a clear way.
L-VIS can also be used in a switch cabinet. It can monitor and display impor-
tant system parameters like energy consumption, alarms or the temperature
in cold-storage rooms. Additionally L-VIS can control devices on the network
by sending out network variables.
L-VIS can be connected to a TP/FT-10 or IP-852 Ethernet channel. The unit
is fully compatible with the EIA-709 and the EIA-852 standards.
FUNCTIONAL FEATURES
•
Control and display panel for
L
ON
W
ORKS
®
ANSI/EIA-709
networks
•
Graphical user interface with
touch display
•
Clear and user friendly
navigation menus
•
High resolution 320x240
color LCD touch display with
backlight, 256 colors (VGA)
•
Representation of user defined
graphics, numbers, text, bar
charts, trend logs, and bitmaps
•
Visualization of individual data
points (NVs)
•
Control of individual data
points (NVs)
•
Access control with PIN code
•
Network ports: FT-10 and EIA-
852 Ethernet (IP-852)
•
Compatible with LNS
applications in the fast VNI
mode, e. g. NL220
®
, ALEX,
LonMaker
®
•
Up to 512 input or output
network variables can be
processed
•
Up to 512 destination
addresses can be used
•
Input voltage: 9-24V AC or DC
•
Dimensions: W=210mm (8.3”),
H=165mm (6.5”), D=60mm
(2.4”)
TAC
Part No.
Loytec
Part
No.
Description
Alternative Description
9-073-0070-0 LVIS-
3E100
LON
®
LCD display,
LVIS-3E100
L
ON
W
ORKS
®
LCD Display
LVIS-3E100 FT-10 and
Ethernet
Sample L-VIS graphic
