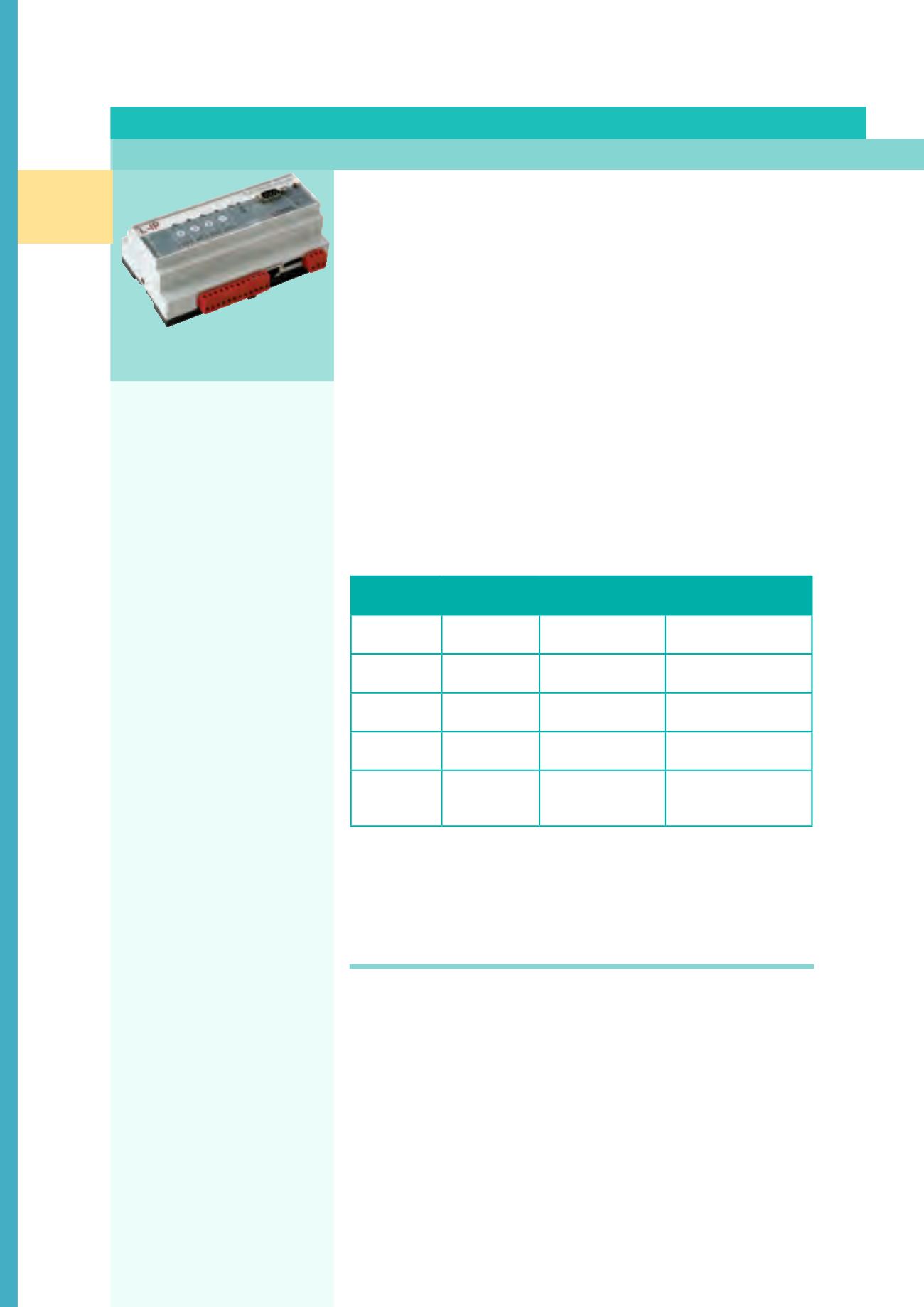

Network Infrastructure
L
ON
W
ORKS
®
(EIA-709) – IP Routers
Gateway
The L-IP fills the gap between L
ON
W
ORKS
®
(EIA-709) installations and IP net-
works. It can tunnel L
ON
W
ORKS
®
packets back and forth through an arbitrary
IP-based network, such as a LAN, an Intranet, or even the Internet. The L-IP
connects to the IP network via an Ethernet channel. Available L
ON
W
ORKS
®
transceivers include FT-10 and TP-1250.
The installation of an L-IP router requires little effort. The IP configuration
can either be obtained via DHCP or entered manually. The user only needs
to provide the IP address of an IP configuration server. If operated behind
a router with network address translation (NAT or masquerading), the L-IP
supports Auto-NAT to work with dynamic public IP addresses.
When using the built in IP configuration server, the user can edit and backup
the IP channel configuration through the built-in web server. The configura-
tion is stored continuously and the device operates completely standalone.
DESCRIPTION
9-073-0044-0 LON
®
router over IP (LIP-1ECTB)
9-073-0043-0 LON
®
Multiport gatew (LP-13333CT)
9-073-0063-0 LON
®
router over IP (LIP-3ECTB)
9-073-0064-0 LON
®
router over IP (LIP-33ECTB)
9-073-0072-0 LON
®
router over IP (LIP-3333ECTB)
TAC
Part No.
Loytec
Part No.
Description
Alternative Ports
9-073-0044-0 LIP-1ECTB
L
ON
W
ORKS
®
network
Interface NIC-USB
NIC709-USB USB port:
FT, RS-485, TP-1250
9-073-0063-0 LIP-3ECTB
LON
®
router over IP
(LIP-3ECTB)
LIP-3ECTB 1 x Ethernet /
1 x FT-10
9-073-0064-0 LIP-33ECTB LON
®
router over IP
(LIP-33ECTB)
LIP-33ECTB 1 x
Ethernet, 2 x FT-10
9-073-0072-0 LIP-3333ECTB LON
®
router over IP
(LIP-3333ECTB)
LIP-3333ECTB 1 x
Ethernet, 4 x FT-10
9-073-0043-0 LP-13333CT LON
®
Multiport
gateway (LP-
13333CT)
LIP-1333ECTB 1 x TP/
XF1250, 4 x FT-10
FUNCTIONAL FEATURES
•
Routes packets between
ANSI/EIA-709 and IP networks
(10/100MBits/s Ethernet)
•
LIP-3ECTB supports one FT-10
channel, LIP-1ECTB supports
one TP-1250 channel, LIP-
33ECTB supports 2 FT-10
channels, LIP-3333ECTB
supports 4 TP-10 channels
•
Tunneling of L
ON
W
ORKS
®
(ANSI/EIA-709) packets
through IP (Ethernet) networks
•
Configured Router Mode
support
•
Easy installation, Auto-NAT,
roaming, DHCP
•
Remote LPA support with
LPA-IP
•
Built in WEB server for LIP and
IP-852 channel configuration
•
SNTP support for time
synchronization
•
Network diagnostic LEDs
