Operator Panels

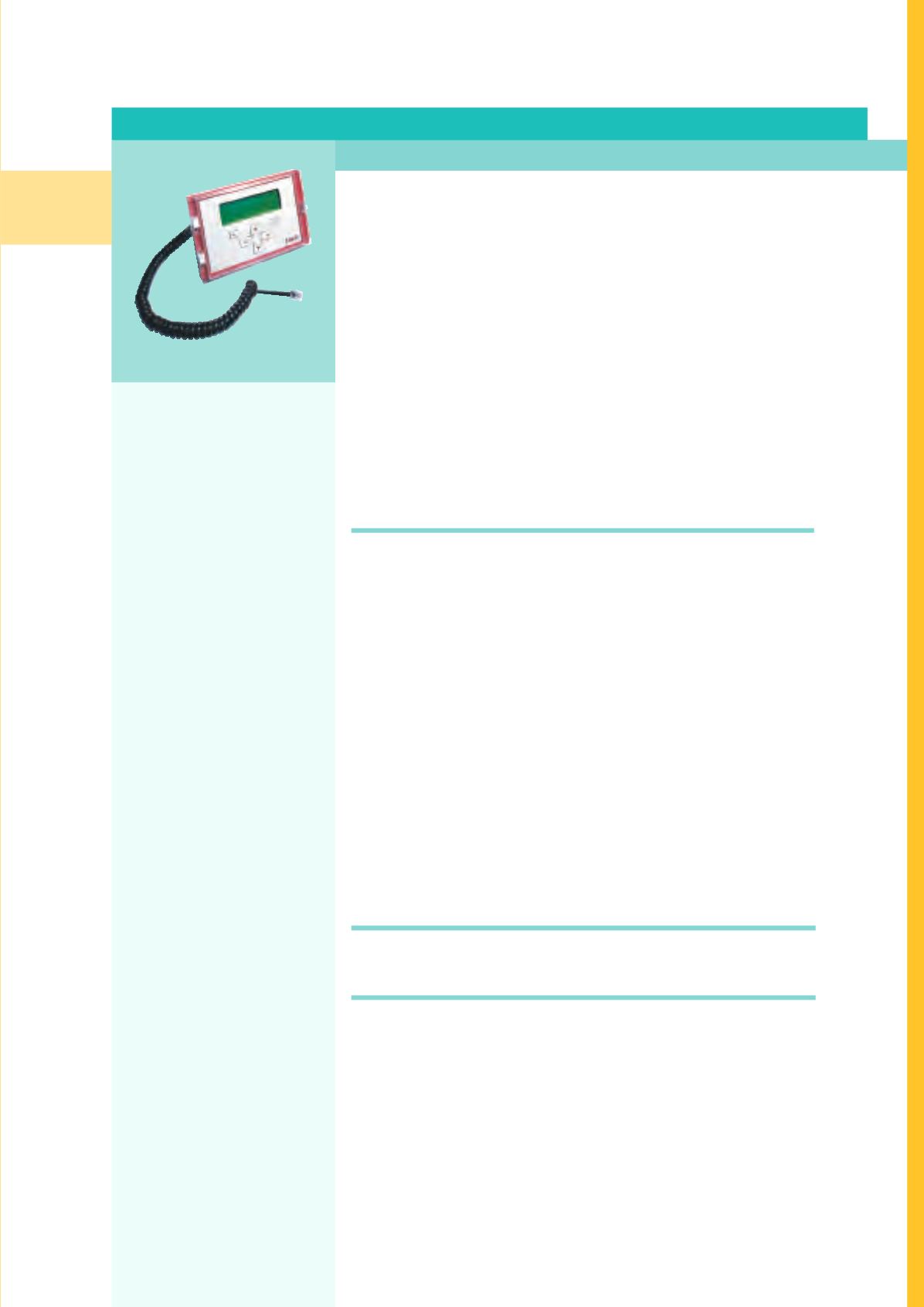

TAC Xenta Operator Panel
For convenient local operation of TAC Xenta controllers. Input is via 6 control
keys and information is displayed in the clear LCD display. The LCD display’s
background lighting can be switched off if required by changing the relevant
parameter. The operator panel is connected to the controller with a plug-
and-socket connection and supplied with power through the cable connec-
tor. It can also be directly connected to the LonWorks
®
network.
The user can access all controllers connected to the network from one
connection. The operator panel allows the current operating status to be
checked and allows changes to be made to setpoints, time schedules etc.,
without connecting to a central system. In addition to allowing mobile
deployment, the unit also supports the convenient plug-in installation to a
TAC Xenta controller or can be mounted into the switchgear cabinet door.
Modern and functional design. Compliant with TAC Xenta 100, TAC Xenta
280, TAC Xenta 300 and TAC Xenta 401.
SPECIFICATIONS
Operating voltage . . . . . . . . . 24 V AC/DC from TAC Xenta or external
Power consumption . . . . . . . . max. 0.5 W
Dimensions incl. base . . . . . . 114 x 96 x 34mm (4.5” x 3.8” x 1.3”)
Protocol . . . . . . . . . . . . . . . . . FTT-10, LonTalk
Transmission rate . . . . . . . . . . 78 kbits/s
Ambient Temperature
Storage. . . . . . . . . . . . . . . . . . –20 °C to +50 °C (–4 °F to +122 °F)
Operation . . . . . . . . . . . . . . . 0 °C to +50 °C (32 °F to +122 °F)
Humidity . . . . . . . . . . . . . . . . max. 90% RH non-condensing
Display . . . . . . . . . . . . . . . . . . 4 X 20 characters alpha-
numerical, backlit
Type of protection . . . . . . . . . IP 20 / IP 43
For further specifications, see technical data sheet.
DESCRIPTION
0-073-0907-2 TAC Xenta OP Operator Panel
0-073-0904-0 TAC Xenta OP mounting kit panel
ACCESSORIES
0-073-0904-0 TAC Xenta OP mounting kit panel
FUNCTIONAL FEATURES
•
Local access to entire network
•
Intuitive navigation
•
Access levels for differentiated
control and supervision
•
Portable and easy to plug in on
any TAC Xenta 280/300/400
•
Monitors variables in a TAC
Xenta 100
