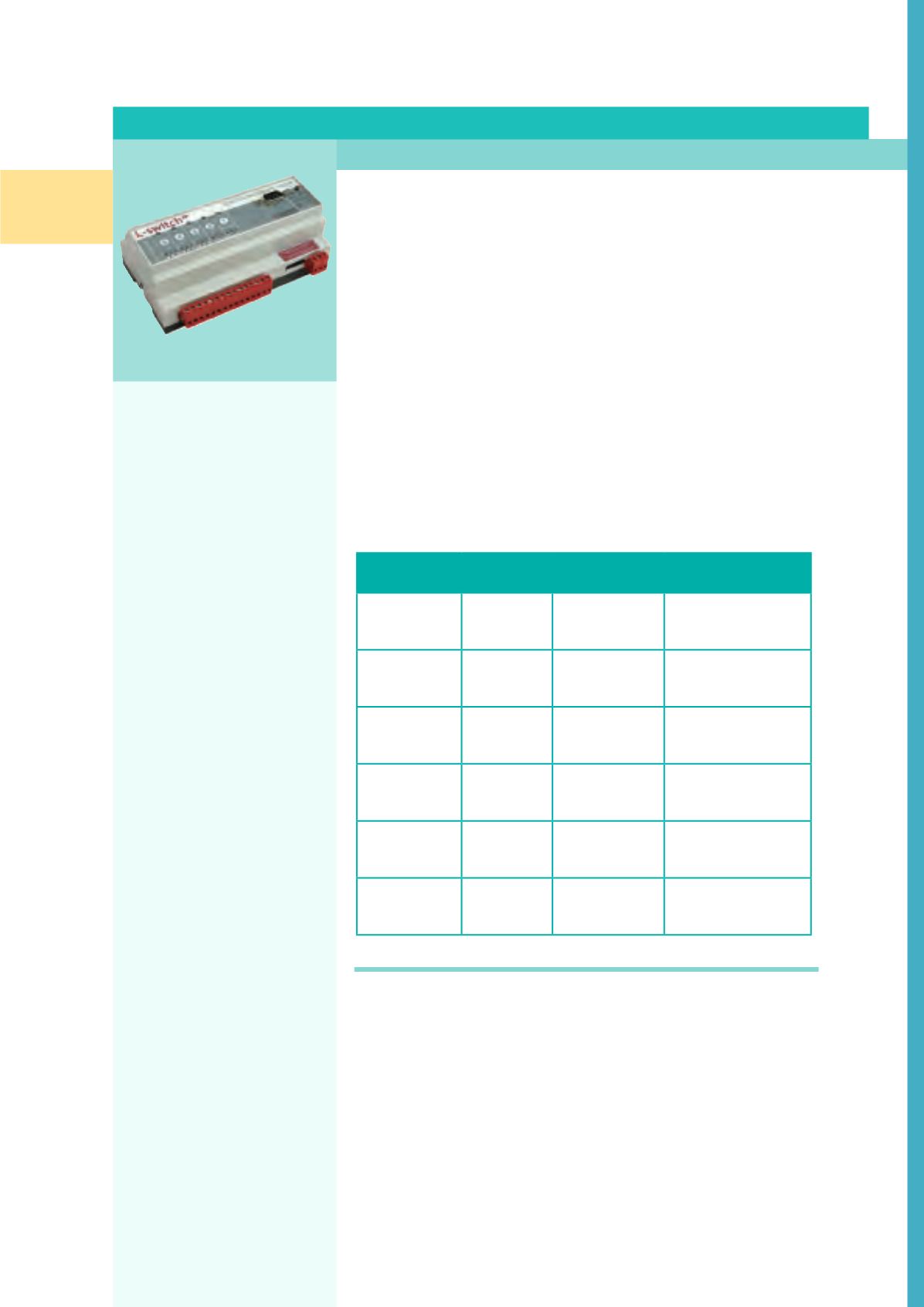

Network Infrastructure
L
ON
W
ORKS
®
Routers
The L-Switch Router is the solution to interconnect multiple L
ON
W
ORKS
®
(EIA-
709) channels. It provides up to five ports and routes packets between these
ports.
In spite of its small size the L-Switch router provides best class performance
and flexibility in use. In order to provide the optimal router configuration
the L-Switch supports 2 to 5 ports as well as the 2 operating modes “Smart
Switch Mode” and “Configured Router Mode”.
The Plug & Play installation capability of the L-Switch allows connection of
L-Switch to the network without any further configuration.
The Smart Switch technology automatically detects the bit-rates of the con-
nected channels, learns the configuration of the network (domains, subnet/
node addresses, group addresses) and forwards the packets between the
different ports of the L-Switch router.
DESCRIPTION
9-073-0038-0 LON
®
Multiport switch(LS-33300C)
9-073-0039-0 LON
®
Multiport switch(LS-13300C)
9-073-0040-0 LON
®
Multiport switch(LS-13333C)
9-073-0041-0 LON
®
Multiport switch(LS-11333C)
9-073-0049-0 LON
®
Multiport switch(LS-33CB)
9-073-0050-0 LON
®
Multiport switch(LS-13CB)
TAC
Part No.
Loytec
Part No.
Description
Alternative
Description
9-073-0038-0 LS-33300C LON
®
Multiport
switch
(LS-33300C)
LS-33300CB 3 x
FT-10
9-073-0039-0 LS-13300C LON
®
Multiport
switch
(LS-13300C)
LS-13300CB 1 x TP-
1250 / 2 x FT-10
9-073-0040-0 LS-13333C LON
®
Multiport
switch
(LS-13333C)
LS-13333CB 1 x TP-
1250 / 4 x FT-10
9-073-0041-0 LS-11333C LON
®
Multiport
switch
(LS-11333C)
LS-11333CB 2 x TP-
1250 / 3 x FT-10
9-073-0049-0 LS-33CB LON
®
Multiport
switch
(LS-33CB)
LS-33CB 2 x FT-10
9-073-0050-0 LS-13CB LON
®
Multiport
switch
(LS-13CB)
LS-13CB 1 x TP-1250
/ 1 x FT-10
FUNCTIONAL FEATURES
•
For physical separation and
logical connection of up to
5 ANSI/EIA-709 network
segments
•
Can be used as configured
router
•
Can be used as learning switch
or repeater
•
Forwarding decision based
on subnet/node and group
addresses
•
Processes up to 3500 packets/
sec
•
Supports multiple transceivers:
FT-10/LPT-10, TP-1250
•
Diagnostic LEDs for each
channel showing network
activity, overload, and error
conditions
•
DIN-rail (EN 50 022) or wall
mountable
