Presentation
Incomer
PD391301
Masterpact NT1000 3P
Drawout, front connection
Supply via Canalis
Distribution
Linergy busbars
Outgoing devices
Compact NSX250
Vertical
Fixed, front connection
Toggle
Supply
Polypact distribution block
Connection
Direct via cables
Compact NSX250
Horizontal
Fixed, front connection
Toggle
Supply
Prefabricated connection
Connection
Transferred to cable compartment,
W = 400 mm
Compact NSX400
Horizontal
Fixed, front connection
Toggle
Supply
Prefabricated connection
Connection
Transferred to cable compartment,
W = 400 mm
Multi 9 devices
Supply
80 AMulticlip
Comb busbars
Cable running
Cable straps
Trunking
Connection
Terminal block in the cable
compartment, W = 300 mm
Motor protection devices
Supply
Comb busbars
PD390407
Cable running
Cable straps
Trunking
Connection
Terminal block in the cable
compartment, W = 300 mm
Enclosure
Cubicle for devices
W = 800/650 mm
D = 400 mm
Cable compartment
W = 300/400 mm
D = 400 mm

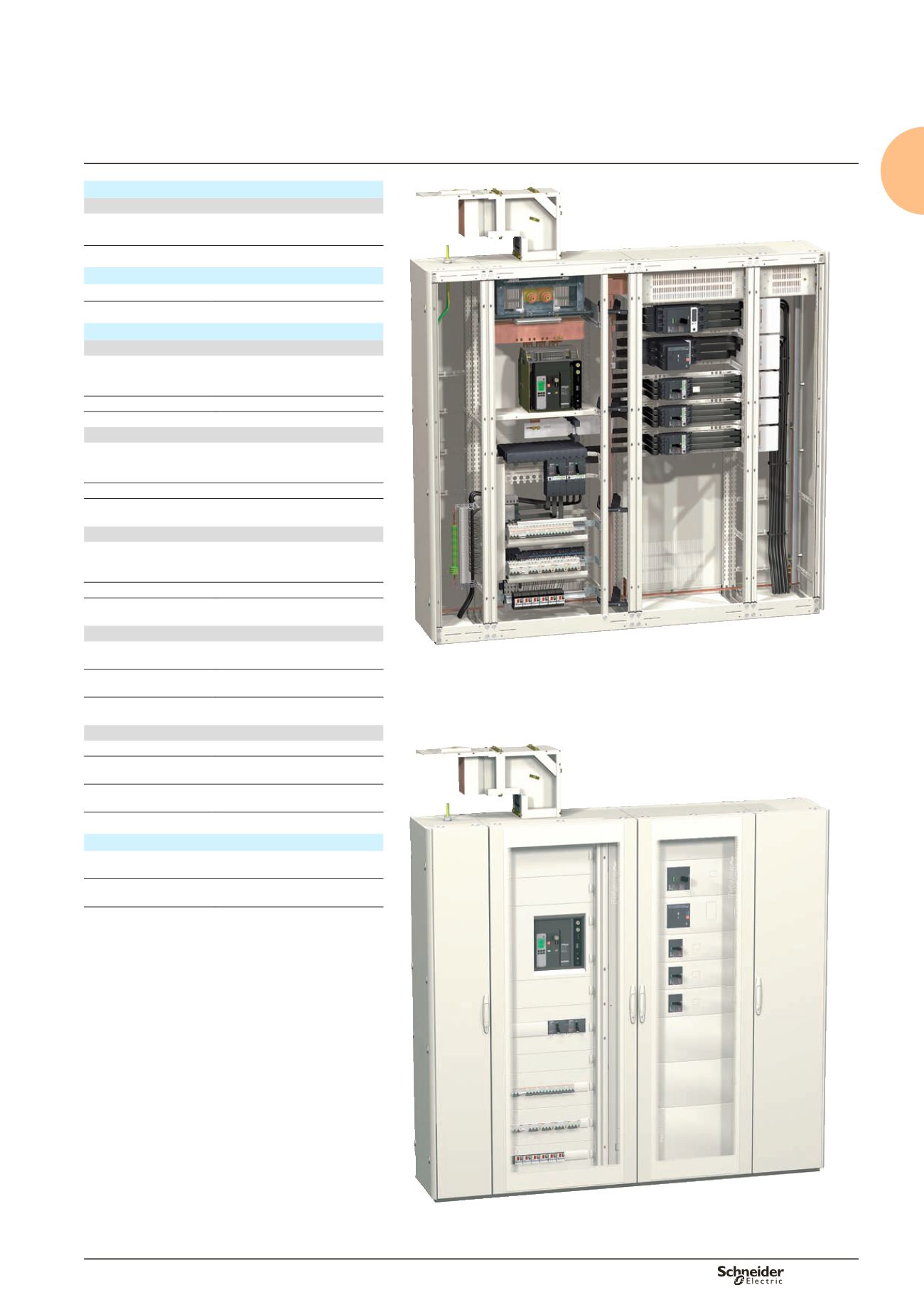

Examples of switchboard
configurations
