Incomer
Masterpact NW20 4P
Drawout
Upstream terminals: vertical rear connection
Downstream terminals: front connection
Supply via Canalis from the top
Distribution
Double vertical flat 10 mm busbars
Horizontal flat 10 mm busbars
Enclosure
Cubicle for devices
W = 800/800 mm
D = 600 mm
Cable compartment
W = 300 mm
D = 600 mm
Outgoing devices
Compact NSX
Horizontal
Fixed, front connection
Toggle
Supply
Flexible bars
Connection
Direct via cables
Compact NSX250
Vertical
Fixed, front connection
Toggle
Supply
Polypact distribution block
Connection
Direct via cables
Compact NSX400
Horizontal
Fixed, front connection
Rotary handle
Supply
Flexible bars
Connection
Transferred to cable compartment, W = 300 mm
Multi 9 devices
Supply
200 AMulticlip
Cable running
Trunking
Connection
Terminal block in the cable compartment, W = 300 mm
Motor protection devices
Supply
Comb busbars
Cable running
Cable straps
Presentation
DD383729

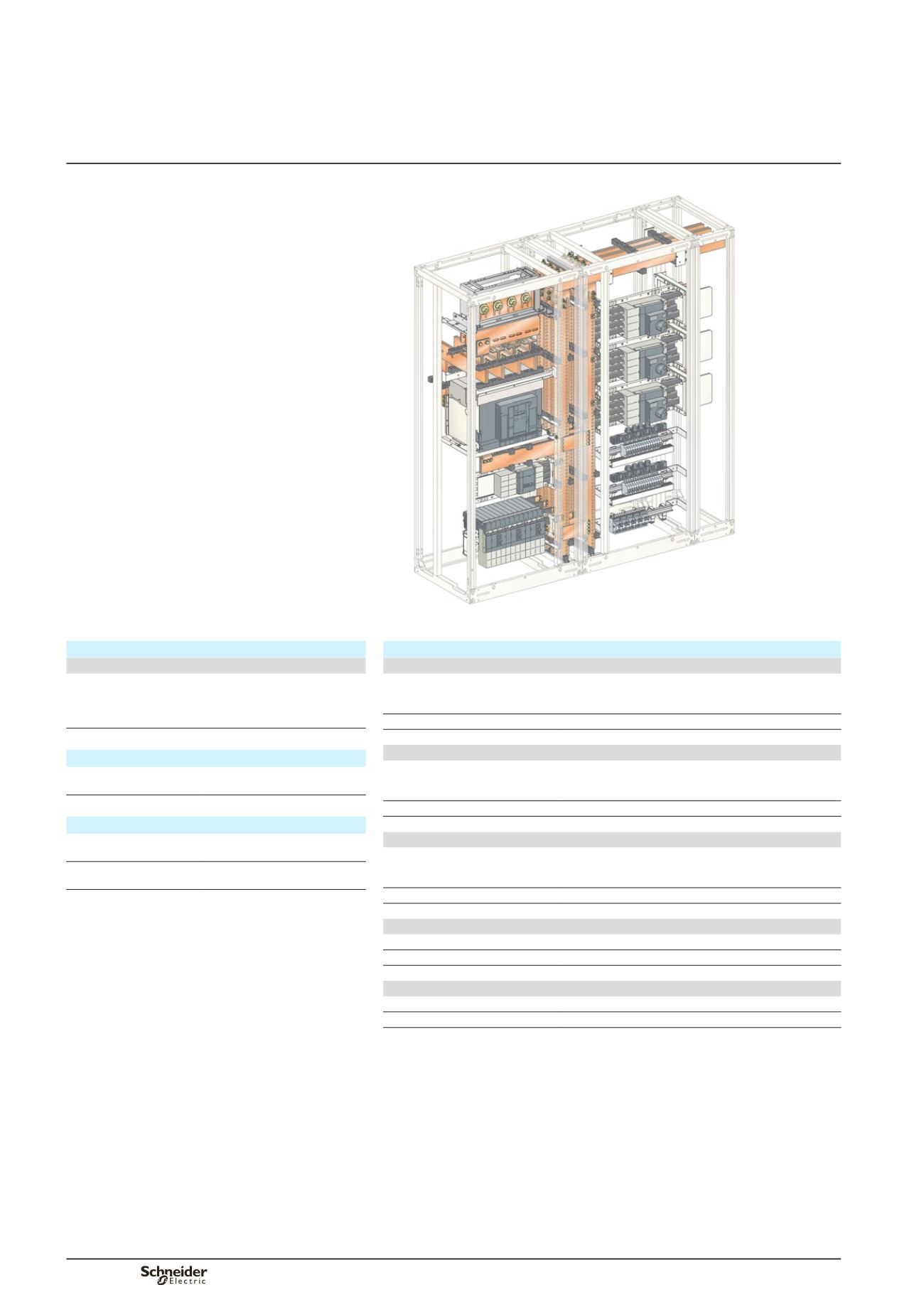

Examples of switchboard
configurations
