Incomer
Masterpact NW32 4P
Fixed
Upstream terminals: front connection
Downstream terminals: vertical rear connection
Supply via cables from the bottom
Distribution
Vertical Linergy busbars
Double horizontal flat 10 mm busbars
Enclosure
Cubicle for devices
W = 800/800 mm
D = 1000 mm
Outgoing devices
Compact NSX250
Vertical
Fixed, rear connection
Toggle
Supply
Polypact distribution block
Connection
Direct via cables
Compact NSX250
Horizontal
Fixed, rear connection
Toggle
Supply
Prefabricated connection
Connection
Direct via cables
Compact NSX400
Horizontal
Fixed, rear connection
Toggle
Supply
Prefabricated connection
Connection
Direct via cables
Multi 9 devices
Supply
200 AMulticlip
Cable running
Trunking
Motor protection devices
Supply
Comb busbars
Cable running
Cable straps
Presentation
DD384058

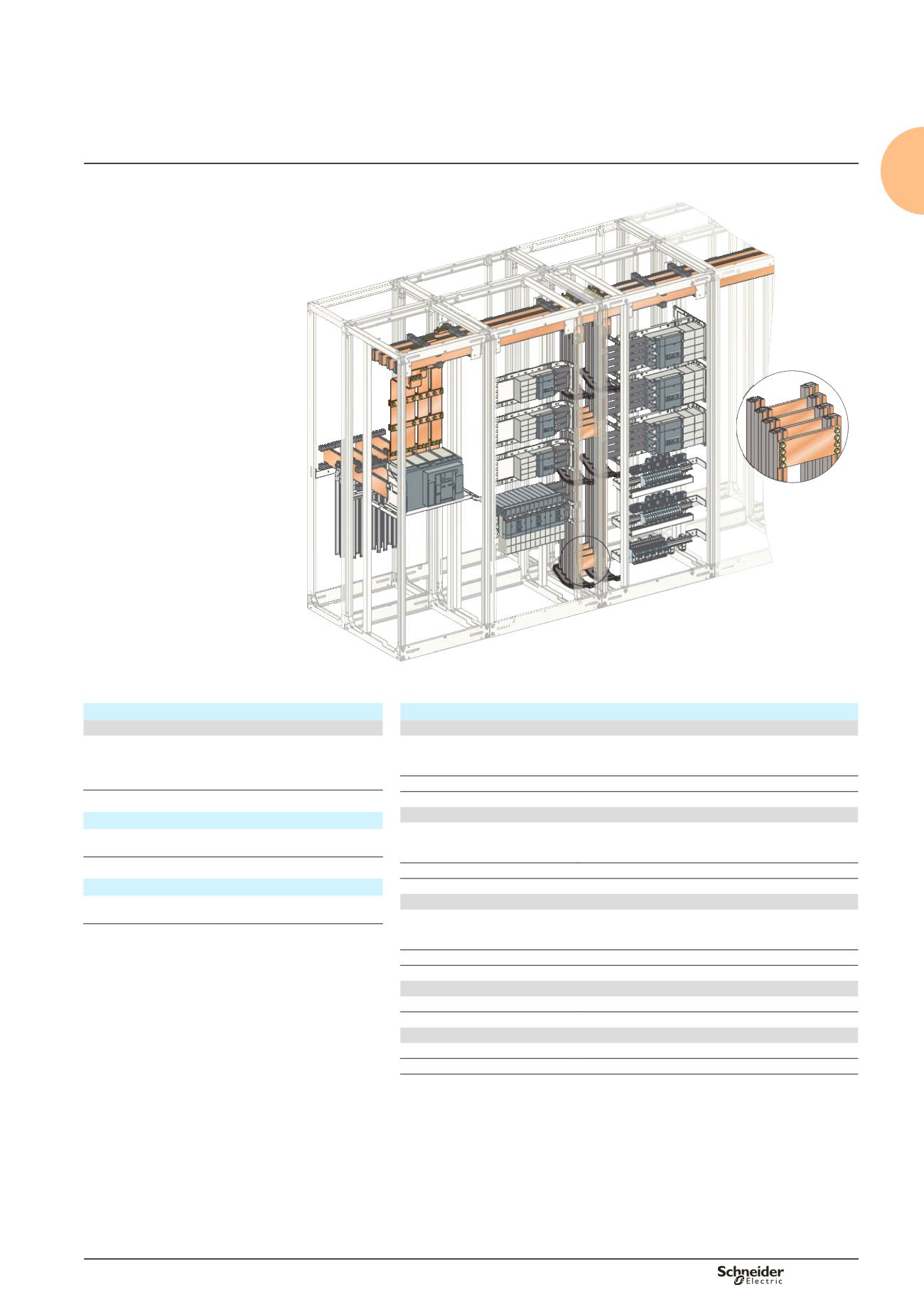

Examples of switchboard
configurations
