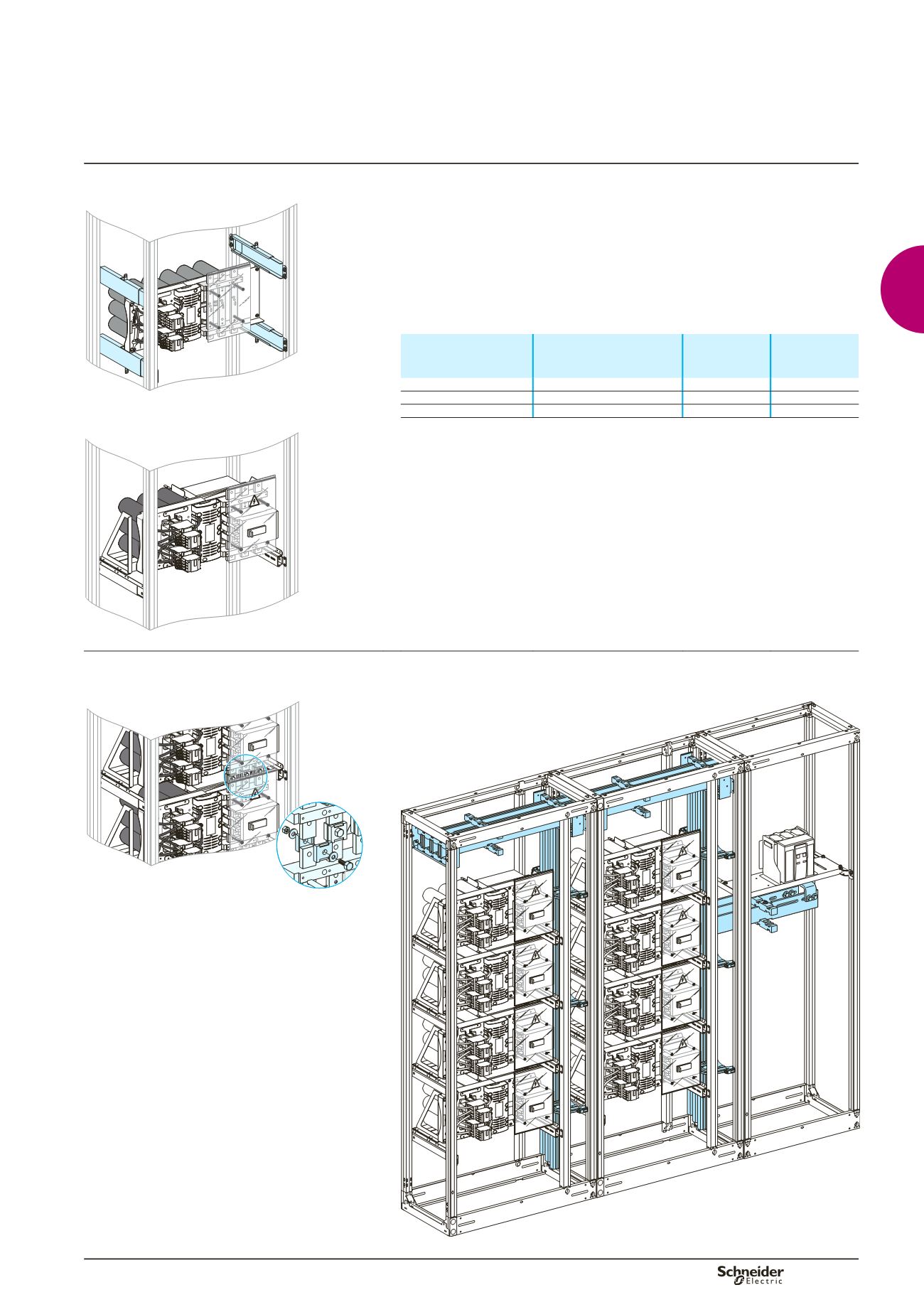

A-59
Device installation
Prisma Plus cubicles can be used for installation of the new “Varpact” power factor
correction modules designed to improve power system quality and reduce
consumption of reactive energy.
These modules are made up of capacitors, contactors and special protection against
internal faults. Depending on the version, they come equipped with front busbars or
not.
The following table indicates the maximum number of Varpact modules that can be
installed in one cubicle (D=400 mm or 600 mm) without exceeding temperature rise
limits, as well as the catalogue numbers of the necessary mounting accessories.
DD383660
Type of equipment
No. of power factor
correction modules
per cubicle
Mounting
plate cat. no.
Set of captive
nuts
Varpact Classic
5
51670 + 51635
08921
Varpact Classic and Comfort installation.
Varpact Comfort
5
51670 + 51635
08921
Varpact Harmony
4
b
08921
DD383628
Varpact Harmony installation.
Electrical connections
The power factor correction modules equipped with busbars can be interconnected
by jointing the bars (figure 1). Modules without busbars can be supplied using
Linergy type vertical busbars (figure 2).
DD383629
DD383699
Electrical connections between modules.
(Figure 1).
6Hz
6Hz
CD
EF
(Figure 2).
Power factor correction
equipment
Varpact
Functional units
Others
