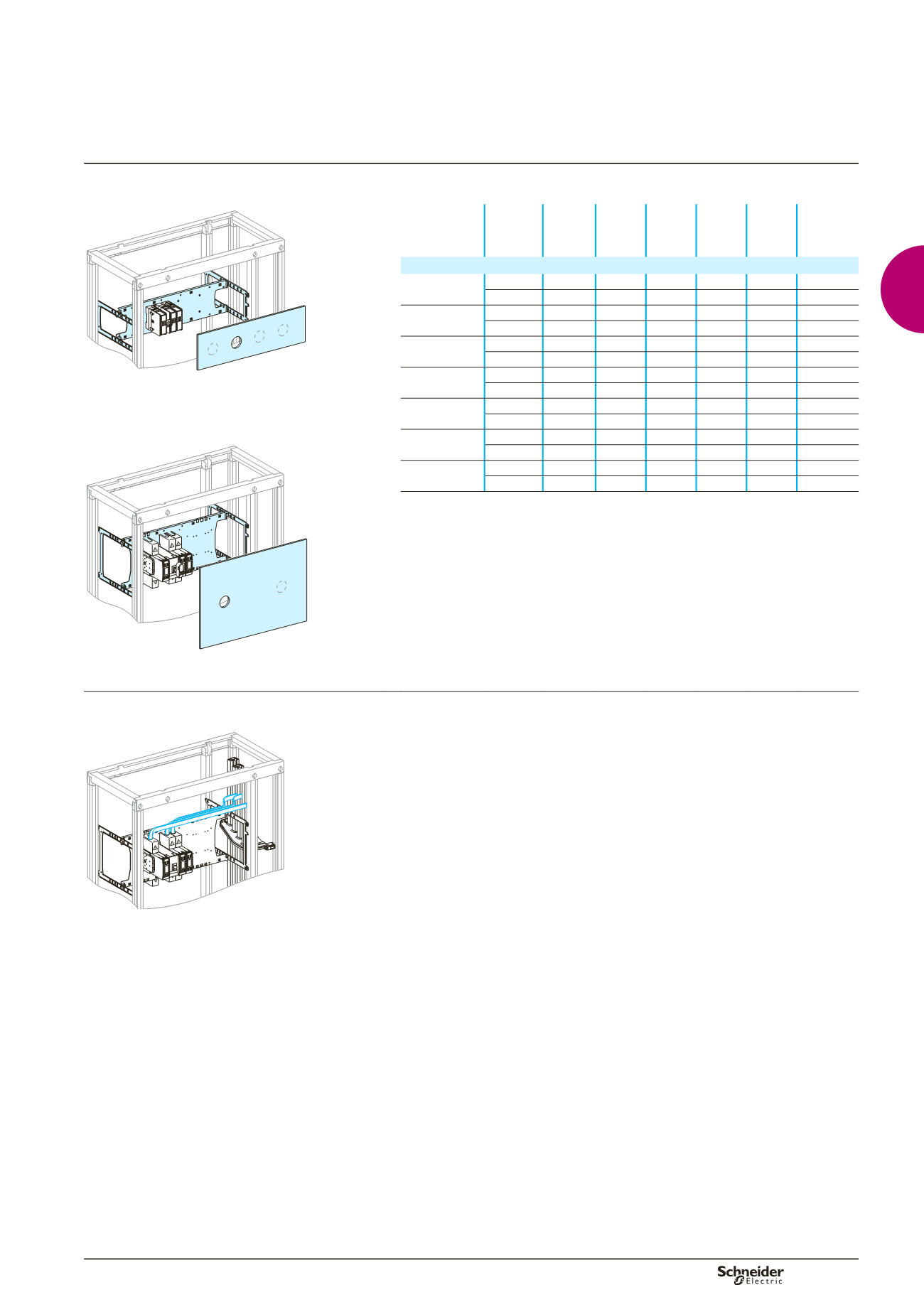

A-57
Functional units
Installation
Dd383586
Device
No. of
devices
per row
No. of
vertical
modules
Mounting
plate
Cut-out
front
plate
Upst.
front
plate
Downst.
front
plate
Long
terminal
shields (qty
per device)
Switch-disconnecteur fuses
INF32/40
4 x 3P 3
03540 03312
3 x 4P 3
03540 03313
INF63
3 x 3P 5
03541 03314
49658
2 x 4P 5
03541 03315
49658 x 2
INF100/160
2 x 3P 5
03541 03315
49659 x 6
2 x 4P 5
03541 03315
49659 x 8
INF250
1 x 3P 9
03542 03728 03801 03802
49255 x 6
1 x 4P 9
03542 03728 03801 03802
49255 x 8
INF400
1 x 3P 9
03542 03728 03801 03802
49255 x 6
1 x 4P 9
03542 03728 03801 03802
49255 x 8
Dd383587
INF630
1 x 3P 11
03542 03728 03802 03803
49257 x 6
1 x 4P 11
03542 03728 03802 03803
49257 x 8
INF800
1 x 3P 11
03542 03728 03802 03803
49257 x 6
1 x 4P 11
03542 03728 03802 03803
49257 x 8
Busbar connection
Linergy or flat busbars
Connection made by the customer.
Choice of flex ble bars to be used for the connection for INF
y
630 A: see page B-54.
Dd383588
Fupact INF
Vertical
Extended rotary handle
Fusegear
