A-60
Device installation
Based on Prisma Plus modular design, the Varplus² system kit can be used to install
power factor correction equipment in 650 mm wide cubicles.
The table below indicates the type of mounting plate to be used according to
installation requirements.
DD383663
Type of installation
Cubicle depth
Mounting plate
cat. no.
Ver ical installation
400 or 600 mm
03975
Horizontal installation
400 or 600 mm
03978
Reactive power Q per Varplus² functional unit depending on voltage.
The following table indicates the maximum permissible reactive power per functional
unit (corresponding to three Varplus² capacitors).
Voltage
Q (kvar)
230 V
30 kVar

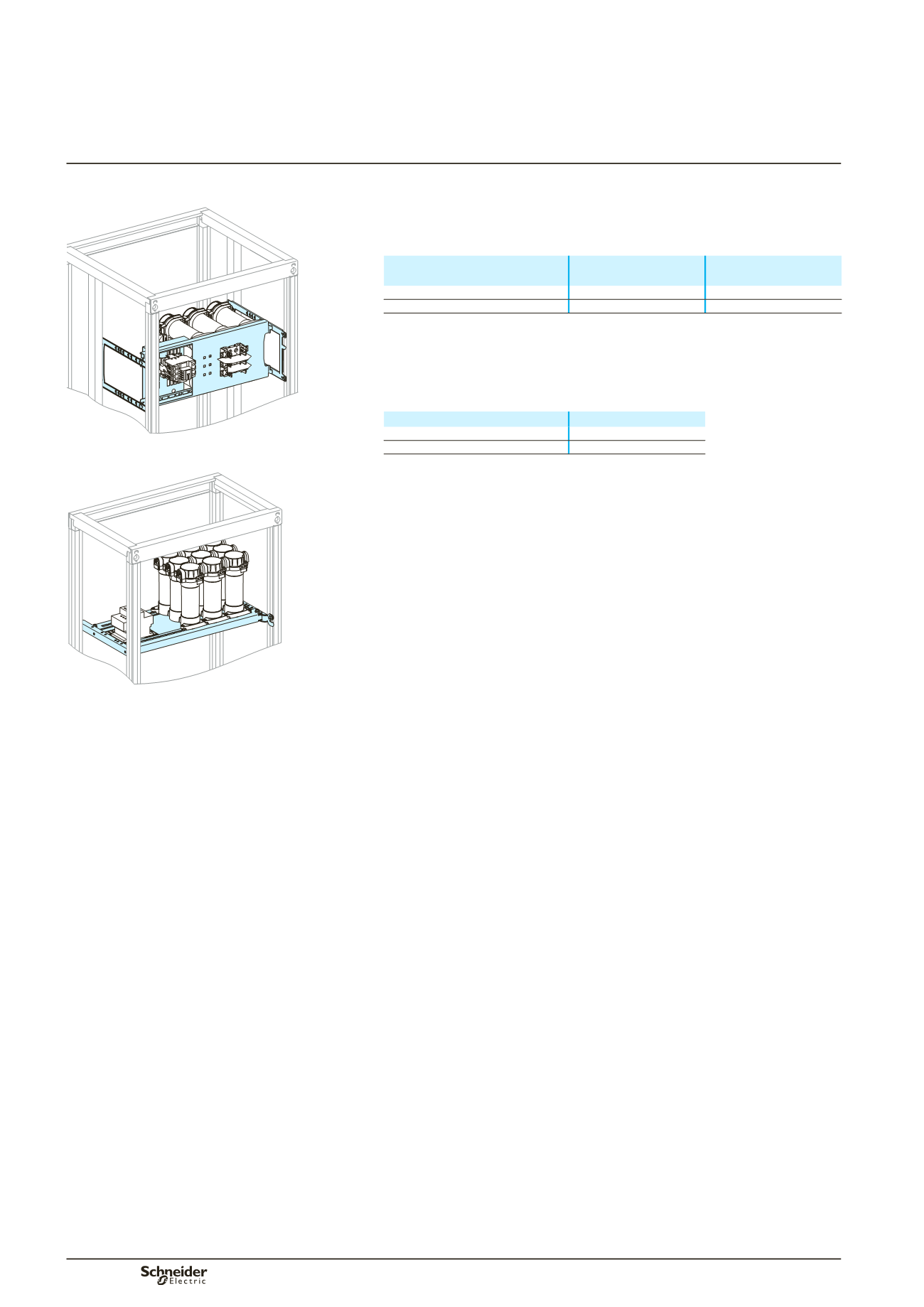

Vertical installation mounting plate Varplus (03975).
400 V
60 kVar
DD383726
Horizontal installation mounting plate Varplus (03978).
Power factor correction
equipment
Varplus
Functional units
Others
