A-61

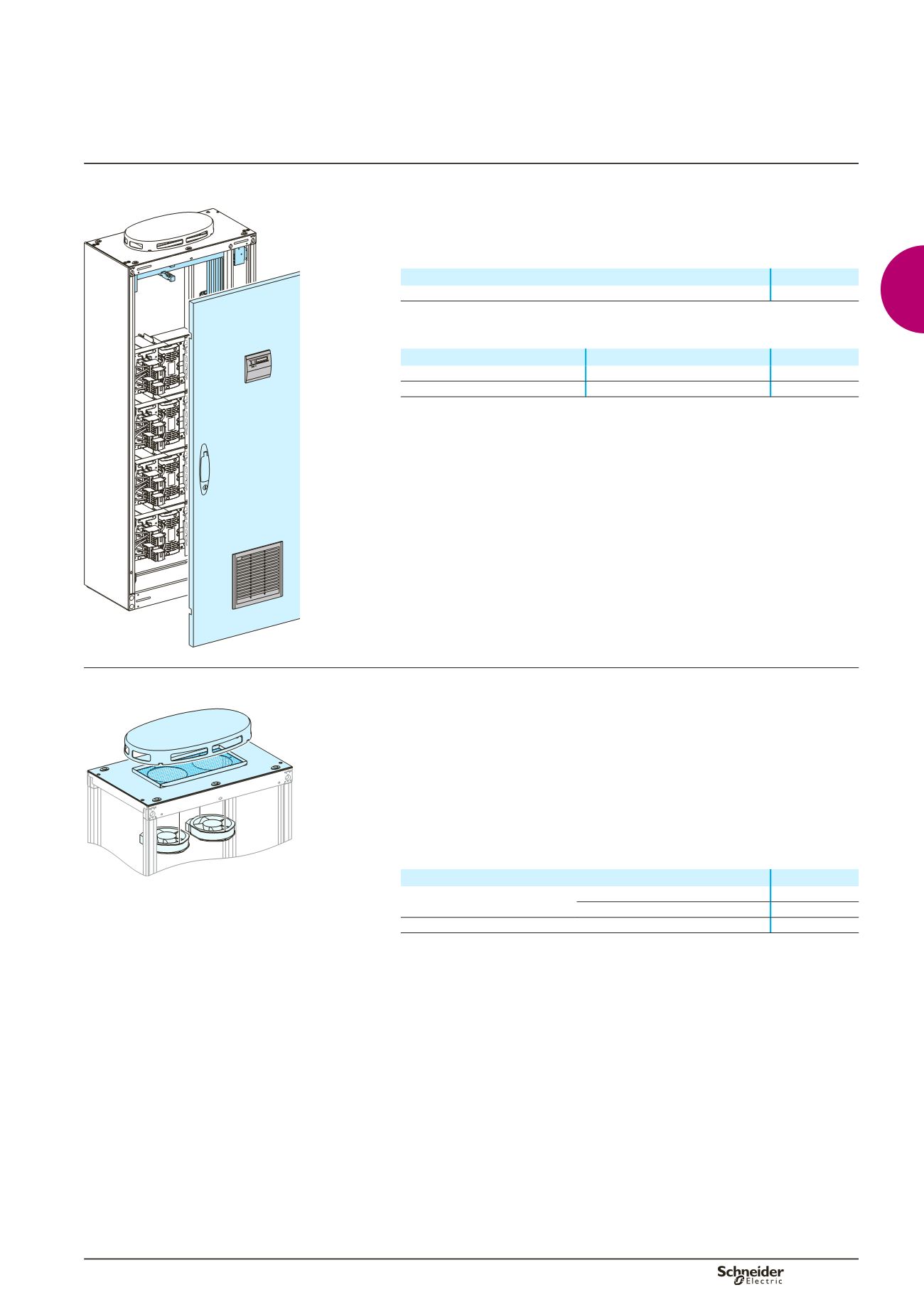

Door with cut-outs
Power factor correction equipment is mounted in special, 650 mm wide cubicles that
are 400 or 600 mm deep.
Standard cover panels are used.
However, a special door is used (hinges on left only) that has cut-outs, one for the
Varlogic power factor controller and another in the bottom for a filter.
DD384061
Designation
Cat. no.
Door with cut-outs
03970
When several cubicles are combined to build a form 2 switchboard, inter-cubicle
partitions must be used.
Cubicle depth
Partition designation
Cat. no.
400 mm
Inter-cubicle partition, D = 400 mm
04911
600 mm
Inter-cubicle partition, D = 600 mm
04931
(1)
(1)
For inter-cubicle partitioning of 600 mm depth cubicles, order partitions 04931 + 04911.
Note:
for further details, see page B-36.
IP30 / IP31 roof
A roof with a cut-out ensures natural ventilation of the equipment.
It can also be equipped with one or two fans.
It is supplied with a cover to protect the fans against dust, condensation or falling
objects.
It is available in 400 and 600 mm depths.
Selection guide
switchboard IP
y
3x
Varpact Classic or Comfort equipment > 180 kvar and Varpact Harmony - two fans
are required
switchboard IP > 3x
two fans are required, whatever the type of equipment.
Cat. no. selection
b
v
b
v
DD382315
Designation
Cat. no.
Roof with cut-out + cover,
W = 650 mm
D = 400 mm
08476
D = 600 mm
08676
Fan
08986
Fan characteristics
Power rating: 35 W
Input voltage: 230 V
Throughput via outlet grill: with standard filter: 300 m
3
/hr
with fine filter: 220 m
3
/hr
Noise level: 52 dB.
Power factor correction
equipment
Functional units
Others
