3.31

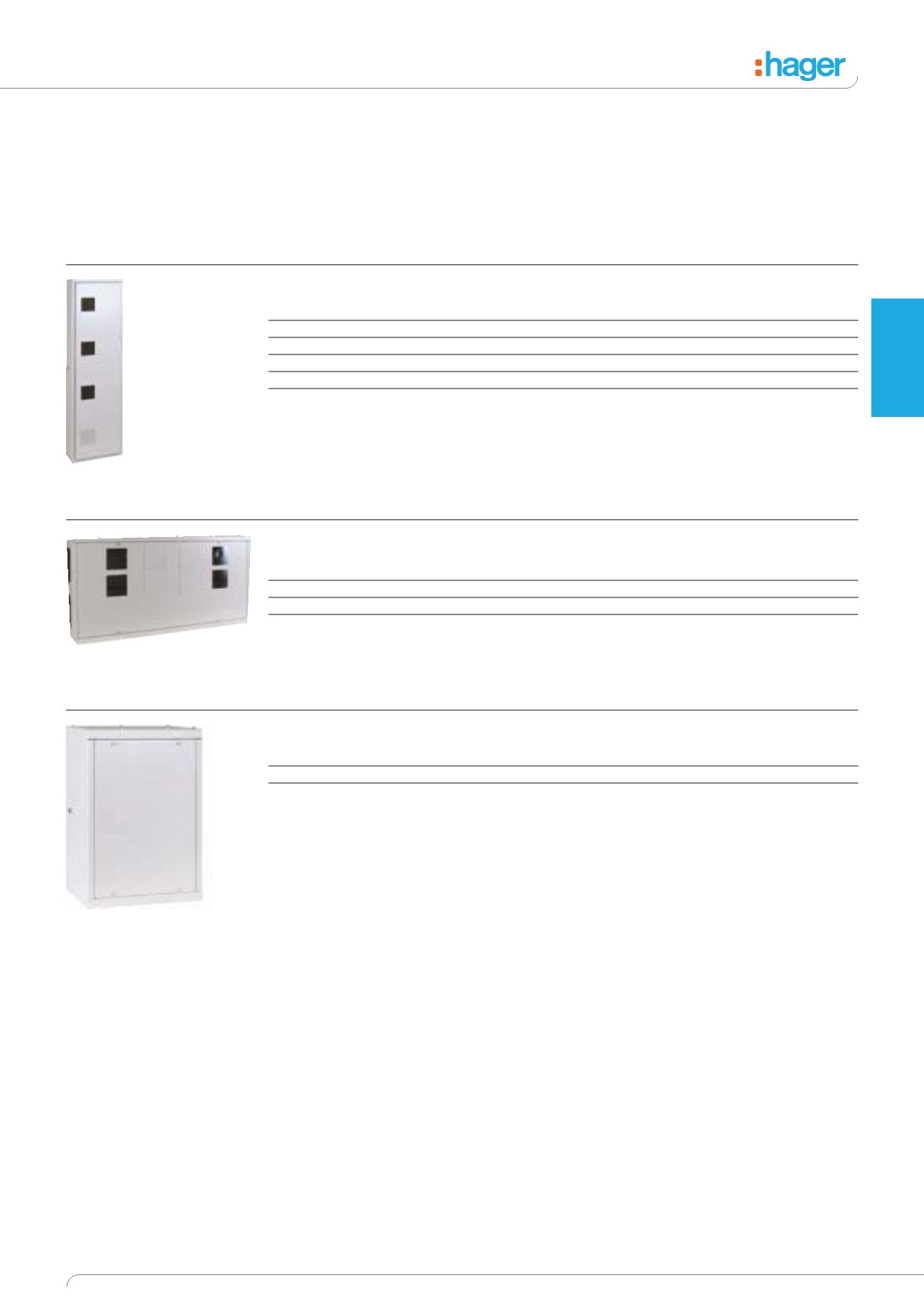

Meter Enclosures for JF Panelboards
When selecting outgoing
metering, the panelboard
metering system is easily
configured by selecting a side,
top or combination that matches
the panelboard.
(e.g. for the JF406 board, you
can select a JF12504SM side
mounted meter enclosure that
can house 4 JFM01 panel
mounted meters). When using
both side and top/bottom
meter enclosures, corner filler
enclosures are available.
For enclosure dimensions see
page 3.50.
Please contact us for any
non-standard requirements or
assembly.
For our full range of pluggable
meters see page 5.25.
Side meter enclosures (Blanking plates not included)
Suitable for board type:
Spaces for Meters
Cat ref.
6/8 Way JF Board
4 x Din 96 Cut-Outs
JF12504SM
12 Way JF Board
6 x Din 96 Cut-Outs
JF14006SM
16 Way JF Board
8 x Din 96 Cut-Outs
JF15508SM
18 Way JF Board
9 x Din 96 Cut-Outs
JF17009SM
Blanking Plate DIN 96
JF96BP
Top/Bottom Meter Enclosures
Description
Spaces for Meters
Cat ref.
300mm Enclosure
4 x DIN 96 Cut-Outs
JF3004TM
450mm Enclosure
8 x DIN 96 Cut-Outs
JF4508TM
Blanking Plate DIN 96
JF96BP
Corner Filler Enclosures
Description
Cat ref.
300mm Corner Filler Side Enclosure
JF300CF
450mm Corner Filler Side Enclosure
JF450CF
JF450CF
JF4508TM
JF12504SM
