General Catalogue • Commercial Distribution

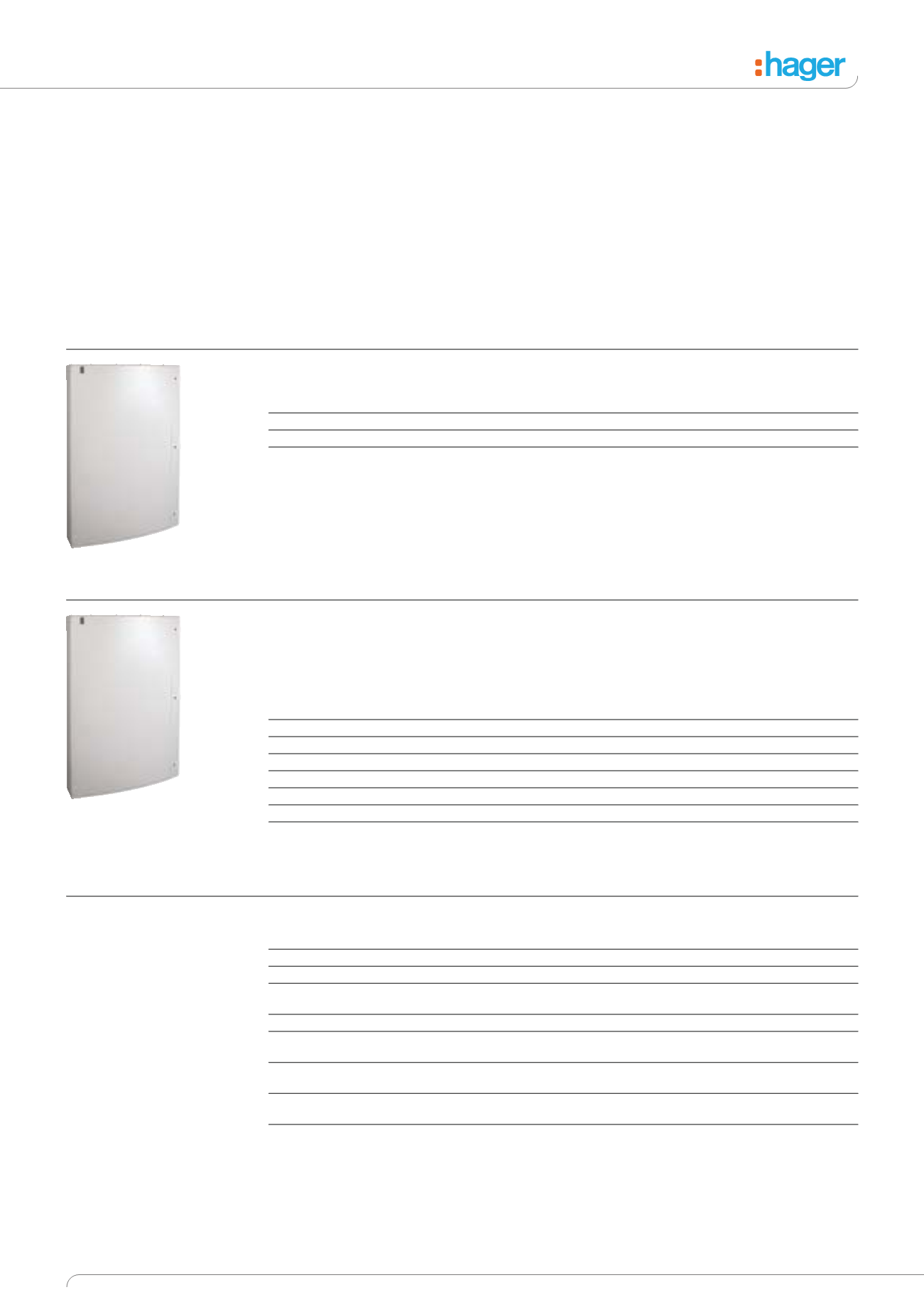

Invicta 3 Panelboard System (630A / 800A Rated)
630A / 800A Incoming 125 / 250A Outgoing
Construction
Enclosure manufactured from
1.2/1.5mm DC01M cold reduced
mild steel, phosphate pretreated
and powder coated to 00A01
BS4800.
Removable gland plates are
provided top and bottom for
ease of installation.
The removal of the gland plates
and cable spreader also allows
the mounting of DIN rail
extension boxes and meter
packs.
Specification
Complies with BS EN 61439-2.
Enclosure degree of protection:
IP3X
Internal separation.
Form 3A.
8, 12, 18 TP outgoing ways.
Form 3B type 2 is achieved using
the outgoing terminal shield (see
MCCB accessories in Section 4.
Incomers
Switch Disconnector 630A/800A.
MCCB 400A/630A.
Direct connection 800A.
M12 hexagonal bolt.
Busbar Ratings
Busbar rated current: 800A
Busbar rated short time
withstand current 35kA for
1x direct connection
(unconditional).
Outgoing MCCBs
Single pole up to 125A - 70mm
2
flexible.
Single pole up to 125A - 95mm
2
solid.
Triple pole up to 250A -150mm
2
flexible.
Incomers Cable capacity
400A – 2 x 240mm
2
630A – 2 x 240mm
2
/ 2 x 300mm
2
For dimensions see page 3.48.
Invicta 3 Panelboards (630A / 800A Incoming, 125A Outgoing)
Description
Cat ref.
Cat ref.
Plain door
Glazed door
8 Way
JF608B
1
JF608BG
1
12 Way
JF812B
JF812BG
18 Way
JF818B
JF818BG
1 Max allowed incomer of 630A on this panelboard
Invicta 3 Panelboards (630A / 800A Incoming, 125A / 250A Outgoing)
These boards will accept a range of MCCB frame sizes:
• 125A frame: 16-125A SP/TP
• 250A frame: 80-250A TP only
Description
Cat ref.
Cat ref.
Plain door
Glazed door
6 Way (2 x 250A
n
+ 4 x 125A
o
)
JF60204B
2
JF60204BG
2
8 Way (2 x 250A
n
+ 6 x 125A
o
)
JF80206B
JF80206BG
8 Way (4 x 250A
n
+ 4 x 125A
o
)
JF80404B
JF80404BG
12 Way (2 x 250A
n
+ 10 x 125A
o
)
JF80210B
JF80210BG
12 Way (4 x 250A
n
+ 8 x 125A
o
)
JF80408B
JF80408BG
18 Way (4 x 250A
n
+ 14 x 125A
o
)
JF80414B
JF80414BG
18 Way (6 x 250A
n
+ 12 x 125A
o
)
JF80612B
JF80612BG
2 Max allowed incomer of 630A on this panelboard
Incomer Kits
Description
Cat ref.
4 Pole 400A Load Break Switch 25kA
JF844BSW
3
4 Pole 630A Load Break Switch 25kA
JF864BSW
3
4 Pole 800A Load Break Switch *Select the required 800A rated panelboard 50kA
*800LBS
(e.g. JF80206BG) and add the suffix 800LBS e.g. JF80206BG800LBS
800A Direct Connection Kit 4 Pole
JF884BD
3
3 Pole 400A MCCB Incomer Kit 50kA
JF843BM
Electronic LSI MCCB, Ir adjustable 0.4 – 1.0 x In
4 Pole 400A MCCB Incomer Kit
JF844BM
Electronic LSI MCCB, Ir adjustable 0.4 – 1.0 x In
3 Pole 630A MCCB Incomer Kit 50kA
JF863BM
Electronic LSI MCCB, Ir adjustable 0.4 – 1.0 x In
4 Pole 630A MCCB Incomer Kit 50kA
JF864BM
Electronic LSI MCCB, Ir adjustable 0.4 – 1.0 x In
3 A 300mm cable spreader box recommended (see page 3.29).
JF60204B
JF608B
