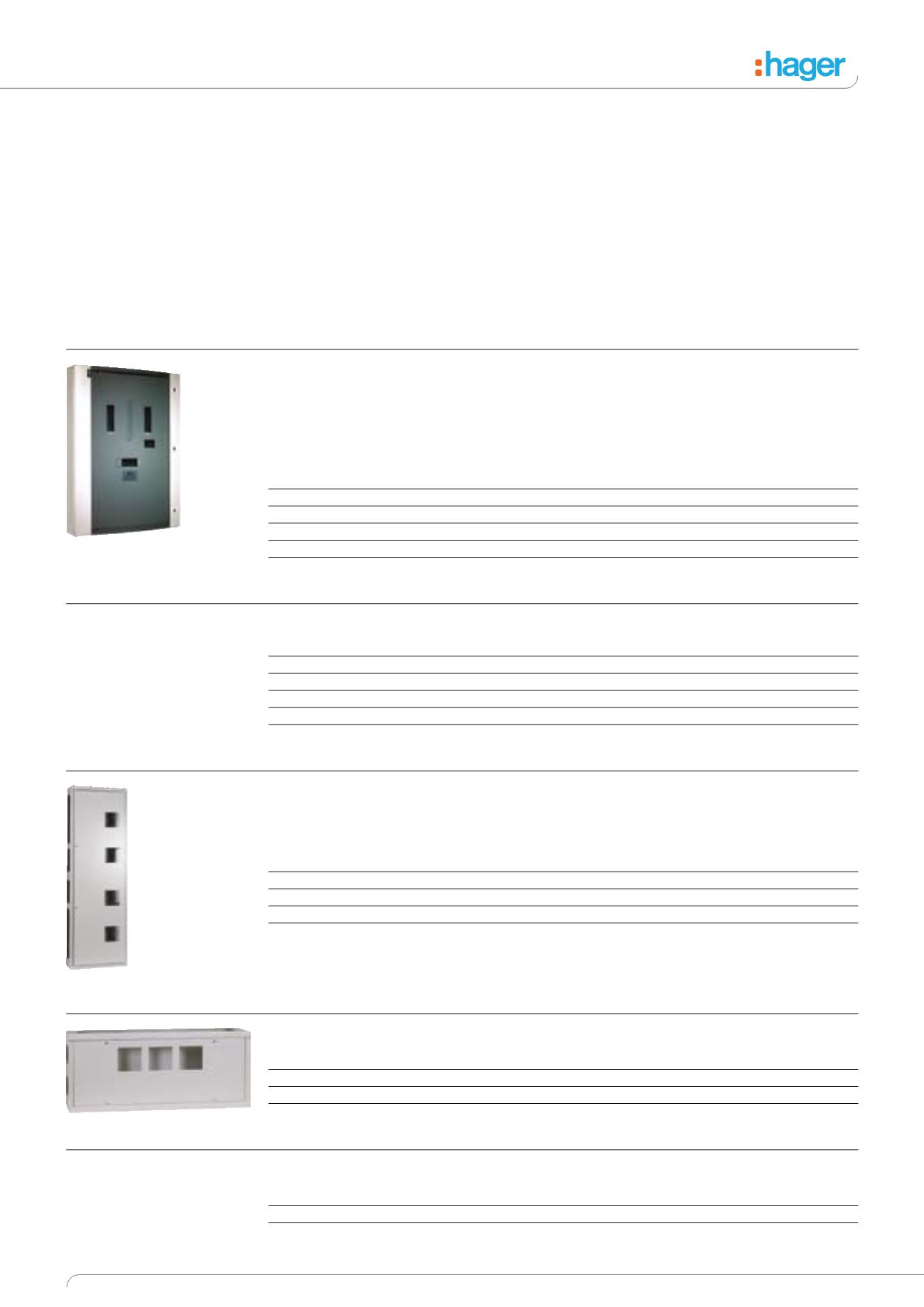

General Catalogue • Commercial Distribution
Invicta 3 Panelboard System (250A Rated)
250A Incoming 125A Outgoing
Invicta 3 Panelboards (250A Incoming 125A Outgoing)
Comprises of enclosure, pan
assembly, twin neutral and earth
bar.
Supplied without incoming kit
(one of the incomer kits listed
below must be used).
Note: when selecting JN meter
enclosures, add a ‘CE’ suffix
to the below references, e.g.
JN208BCE
Cat ref.
Cat ref.
Description
Plain door
Glazed door
4 Way
JN204B
JN204BG
6 Way
JN206B
JN206BG
8 Way
JN208B
JN208BG
12 Way
JN212B
JN212BG
16 Way
JN216B
JN216BG
Side Meter Enclosure (blanking plates not included)
Note: when selecting JN meter
enclosures, add a ‘CE’ suffix to
the panel board references, e.g.
JN208BCE. These come with
pre-cut side cable entries.
Suitable for board type
Spaces for Meters
Cat ref.
4 Way JN Board
2 x DIN 96 Cut-Outs
JN9502SM
6/8 Way JN Board
4 x DIN 96 Cut-Outs
JN11004SM
12 Way JN Board
6 x DIN 96 Cut-Outs
JN12506SM
16 Way JN Board
8 x DIN 96 Cut-Outs
JN15508SM
Top/Bottom Meter Enclosure
Description
Spaces for Meters
Cat ref.
300mm Enclosure
3 x DIN 96 Cut-Outs
JN3003TM
450mm Enclosure
6 x DIN 96 Cut-Outs
JN4506TM
Blanking Plate
JF96BP
Corner Filler Enclosures
Description
Cat ref.
300mm Corner Filler Side Enclosure JN
JN300CF
450mm Corner Filler Side Enclosure JN
JN450CF
Incomer Kits
For other options contact our Technical Service Centre on 01952 675689
Description
Cat ref.
3 Pole 250A MCCB Incomer Kit (Adj. Thermal 0.63, 0.8, 1) 40kA (Magnetic 5, 7, 9, 11 x I n )
JN223BM
4 Pole 250A MCCB Incomer Kit (Adj. Thermal 0.63, 0.8, 1) 40kA (Magnetic 5, 7, 9, 11 x I n )
JN224BM
3 Pole 250A Non-Auto MCCB Incomer Kit
JN223BS
4 Pole 250A Non-Auto MCCB Incomer Kit
JN224BS
250A Direct Connection Kit
JN224BD
Options
Key lock, meter pack, DIN rail,
extension box, spreader box.
Construction
Enclosures manufactured from
1.2mm DC01M cold reduced
mild steel, phosphate pretreated
and powder coated to 00A01
BS4800.
Specification
Complies with BS EN 61439-2.
Enclosure degree of protection:
IP3X
Internal separation Form 3A.
4, 6, 8, 12, 16 Triple Pole
outgoing ways.
Cable Capacity Incomers
3 and 4 pole incomers.
Cable capacity 150mm
2
max lug width 25mm.
Direct connection kit.
M8 bolt.
(Larger cables can be connected
by using extended connections,
see page 4.38 MCCB section).
Outgoers
1 & 3 pole MCCB 70mm
2
flexible.
1 & 3 pole MCCB 95mm
2
solid.
Busbar Ratings
Busbar rated current 250A
continuous.
Busbar rated short-time
withstand current 25kA for 1s
direct connected (unconditional).
Each JN board is available with
side cable entries to enable
the fitting of the JN meter
enclosures. Just add a ‘CE’
suffix. e.g. JN204BCE
Outgoing MCCBs
Adjustable thermal options on TP
Form 3B type 2 is achieved using
the outgoing terminal shield (see
MCCB accessories 4.34).
For accessories see page 3.25.
For dimensions see page 3.45.
For a full list of protection
devices see section 4 of this
catalogue (Protection Devices).
JN204BG
JN11004SM
JN3003TM
