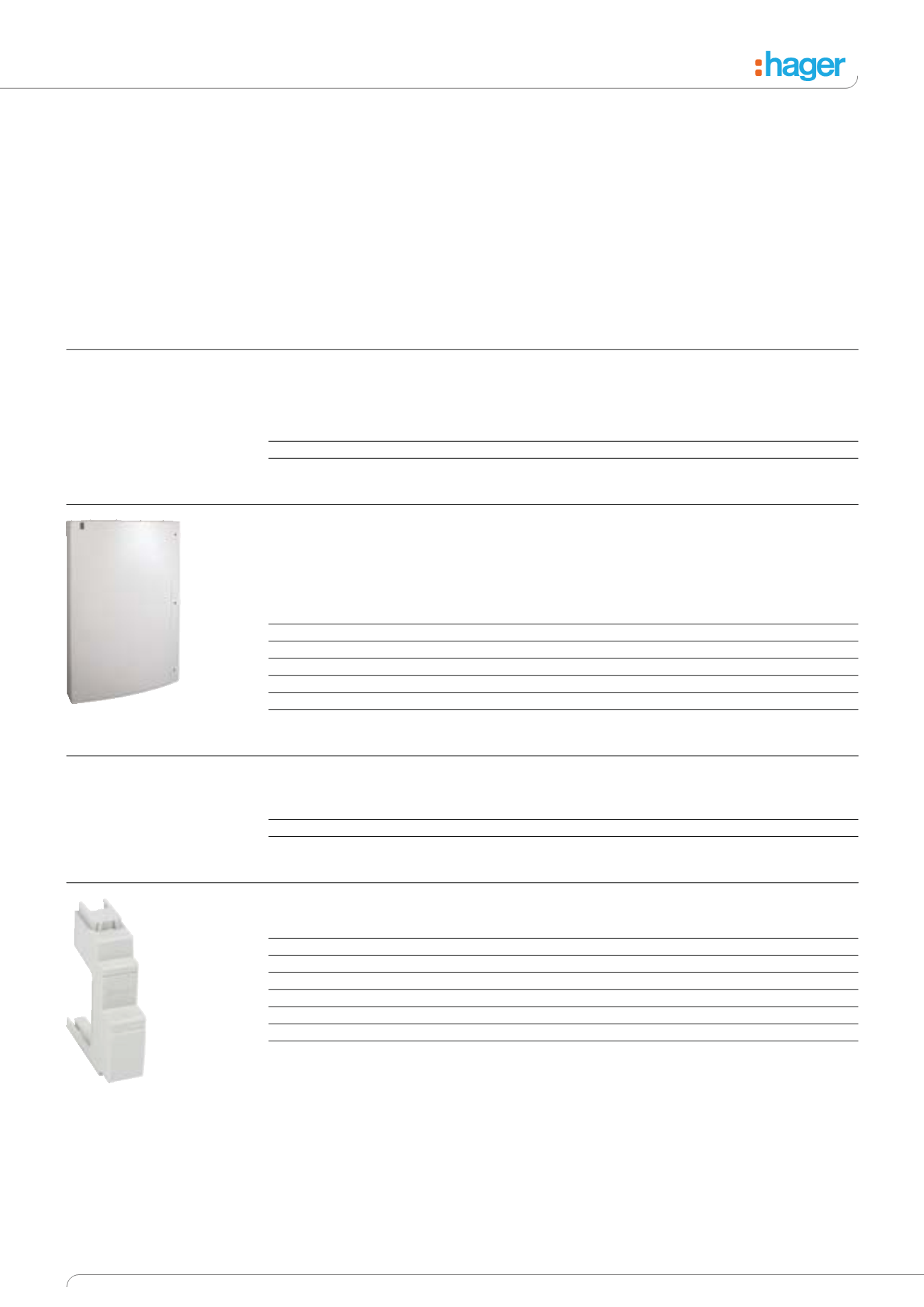

General Catalogue • Commercial Distribution
Invicta 3 Panelboard system (800A MCCB)
800A Incoming 125 / 250A Outgoing
The Hager range of 800A panel
boards has been designed to
complement our Invicta 3
distribution system.
The 800A MCCB incomer board
is designed specifically for
applications where an adjustable
800A MCCB incomer device is
required.
Construction
The enclosure is manufactured
from 1.2/1.5mm DC01M cold
reduced mild steel, phosphate
treated and powder coated to
00A01 BS4800.
Busbar Rated current: 800A
35kA for 1 sec.
Removable gland plates are
provided top and bottom for
ease of installation”
Specification
Complies with BS EN 61439-2
Enclosures degree of protection:
IP3X
Internal Separation: Form 3A
Form 3B type 2 is achieved using
the outgoing terminal shield (see
MCCB accessories on page
4.42).
Cable Capacity
Outgoing devices
125A frame (16 - 125A)
Flexible: min 6mm2, max 70mm2
Rigid: min 6mm2, max 95mm2
250A frame (100 - 250A)
Lug connection: max width
25mm, M8.
Incomers Cable capacity
400A – 2 x 240mm
2
630A – 2 x 240mm
2
/ 2 x 300mm
2
Lug connection bar width 44mm
2 x M12 holes
For dimensions see page 3.49.
For a full list of protection
devices see section 4 of this
catalogue (Protection Devices).
Invicta 3 Panelboards (800A Incoming 125A Outgoing)
Max. 125A outgoing devices
Description
Cat ref.
Cat ref.
Plain door
Glazed door
12 Way
JHF812B
JHF812BG
18 Way
JHF818B
JHF818BG
Invicta 3 Panelboards (800A Incoming 125A / 250A Outgoing)
These boards will accept two MCCB frame sizes
125A frame: 16 - 125A
250A frame: 100 - 250A
Description
Cat ref.
Cat ref.
Plain door
Glazed door
8 Way (2 x 250A
n
+ 6 x 125A
o
)
JHF80206B
JHF80206BG
8 Way (4 x 250A
n
+4 x 125A
o
)
JHF80404B
JHF80404BG
12 Way (2 x 250A
n
+ 10 x 125A
o
)
JHF80210B
JHF80210BG
12 Way (4 x 250A
n
+ 8 x 125A
o
)
JHF80408B
JHF80408BG
18 Way (4 x 250A
n
+ 14 x 125A
o
)
JHF80414B
JHF80414BG
18 Way (6 x 250A
n
+ 12 x 125A
o
)
JHF80612B
JHF80612BG
Incomer Kits
Description
Cat ref.
Plain door
800A 3 Pole MCCB Incomer Auto 50kA
JHF883BM
800A 4 Pole MCCB Incomer Auto 50kA
JHF884BM
Accessories
Description
Cat ref.
Locking Kit for MCCB Incoming Device (All Ratings)
HXD039H
Allen Key Set
JF296A
End Plate for Invicta 3 800A Range
JFPLATE
Key lock with one key
JK222PK
x125 Frame 1 pole blank (3x blanks required per triple pole)
JN001BP
x250 Frame 3 pole blank (1x blank required per triple pole)
JF003BP
Outgoer Locking Kit (fits to toggle for up to 3 padlocks max ø 8mm
2
)
HXA039H
For a full list of protection devices see section 4 of this catalogue (Protection Devices).
