General Catalogue • Commercial Distribution
Fuse Combination Switches 20 - 800A
SPSN, TP&N, TPSN
Description
The Hager range of fuse
combination switches provides
individual protection and control
of circuits.
The enclosures up to 100A have
been designed to provide
adequate cabling space without
the need for additional cable
spreader boxes.
Operation of the device is
through a door mounted rotary
handle which is mechanically
interlocked to prevent access to
live conductors when the switch
is in the on position. The handle
is padlockable in the off position.
All versions will accept standard
BS 88 fuse links and can be
converted to switch
disconnector by fitting copper
links.
Utilisation category
AC22B - 630 - 800A
AC23A - 20 - 630A
Product features
Complies with:
BS EN 60947-3
IP31.
Note:
Maximum rated
fuse links are fitted in
all fuse combination
switches.
Cable Capacity
20A = 16mm
2
32A = 16mm
2
63A = 25mm
2
100A = 95mm
2
125A = 95mm
2
160A = 95mm
2
200A = 240mm
2
250A = 240mm
2
315A = 240mm
2
400A = 240mm
2
630A = 2 x 300mm
2
800A = 2 x 300mm
2
For dimensions see page 3.51.
For technical information see
page 3.52.
Fuse Combination Switches Single Pole and Switched Neutral
Description
Cat ref.
Cat ref.
Cable extension
boxes if required
20A Fuse Combination Switch SP&SN
JFB202U
-
32A Fuse Combination Switch SP&SN
JFB203U
-
63A Fuse Combination Switch SP&SN
JFD206U
-
100A Fuse Combination Switch SP&SN
JFE210U
JZA701
Fuse Combination Switches Triple Pole and Neutral
Description
Cat ref.
Cat ref.
Cable extension
boxes if required
20A Fuse Combination Switch TP&N
JFB302U
-
32A Fuse Combination Switch TP&N
JFB303U
-
63A Fuse Combination Switch TP&N
JFD306U
-
100A Fuse Combination Switch TP&N
JFE310U
JZA701
125A Fuse Combination Switch TP&N
JFG312U
JZA701
160A Fuse Combination Switch TP&N
JFG316U
JZA701
200A Fuse Combination Switch TP&N
JFG320U
JZA701
250A Fuse Combination Switch TP&N
JFG325U
JZA701
315A Fuse Combination Switch TP&N
JFH331U
JZA702
400A Fuse Combination Switch TP&N
JFH340U
JZA702
630A Fuse Combination Switch TP&N
JFI363U
JZA703
800A Fuse Combination Switch TP&N
JFI380U
JZA703

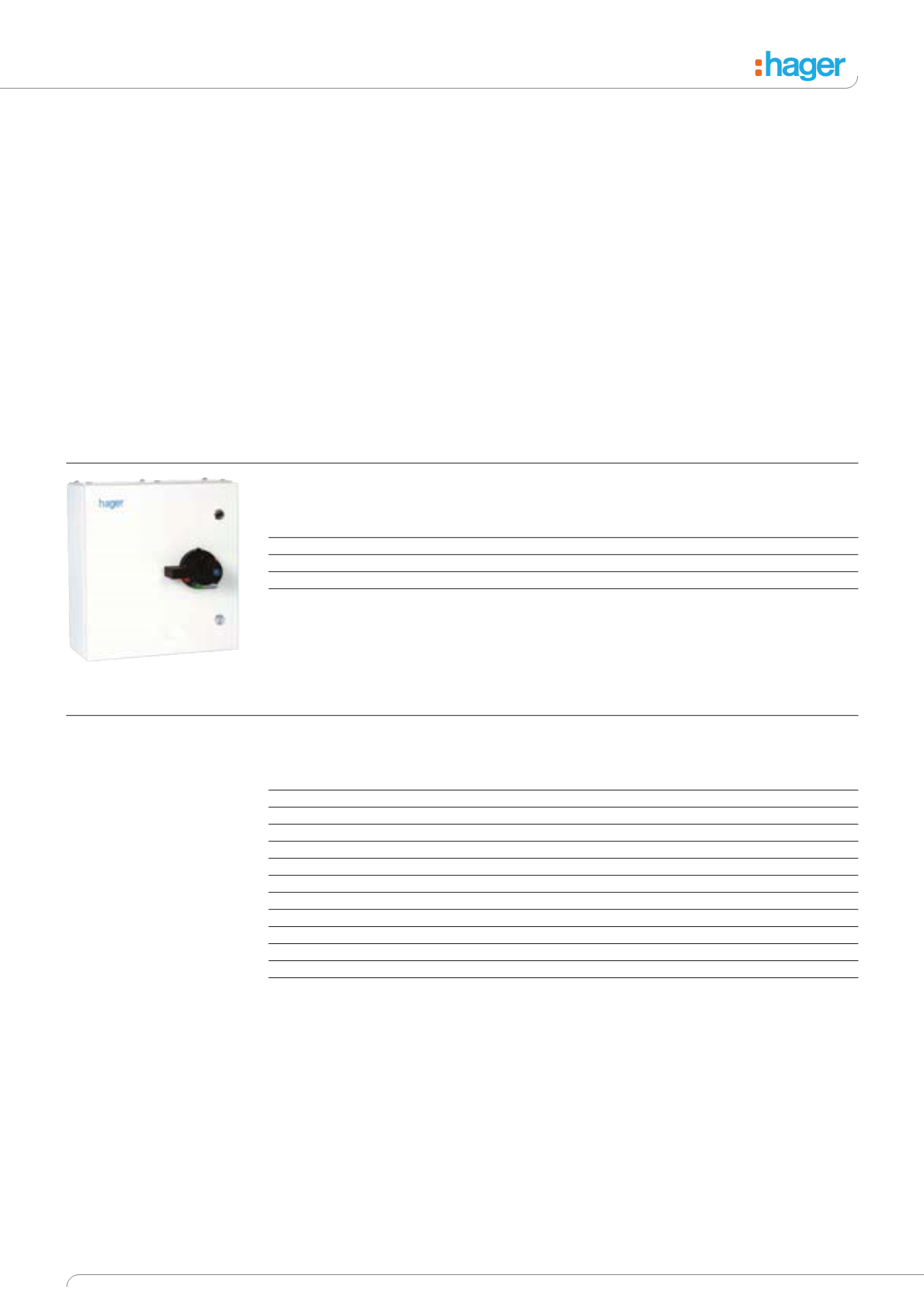

JFD206U
