General Catalogue • Commercial Distribution
Switch Disconnectors 20-800A
TP&N, TP&SN
Description
The Hager range of switch
disconnector has been designed
to provide individual protection
and control of circuits up to
800A.
The enclosures have been
designed to provide adequate
cabling space without the need
for additional cable spreader
boxes.
Operation of the device is
through a door mounted rotary
handle which is mechanically
interlocked to prevent access to
live conductors when the switch
is in the on position. The
handle is padlockable in the off
position.
Utilisation category
AC-21
AC-22
Product features
Complies with:
BS EN 60947-3
IP31.
Cable Capacity
20A = 16mm
2
32A = 16mm
2
63A = 50mm
2
100A = 50mm
2
125A = 50mm
2
160A = 95mm
2
200A = 95mm
2
250A = 150mm
2
315A = 185mm
2
400A = 240mm
2
630A = 2 x 300mm
2
800A = 2 x 300mm
2
For technical information see
page 3.57.
Switch Disconnectors TP&N
Rating
Cat ref.
Cat ref.
Cable extension
boxes if required
160A
JAC316
JZA700
200A
JAE320
JZA701
250A
JAE325
JZA701
315A
JAG331
JZA701
400A
JAG340
JZA701
630A
JAH363
JZA702
800A
JAH380
JZA702

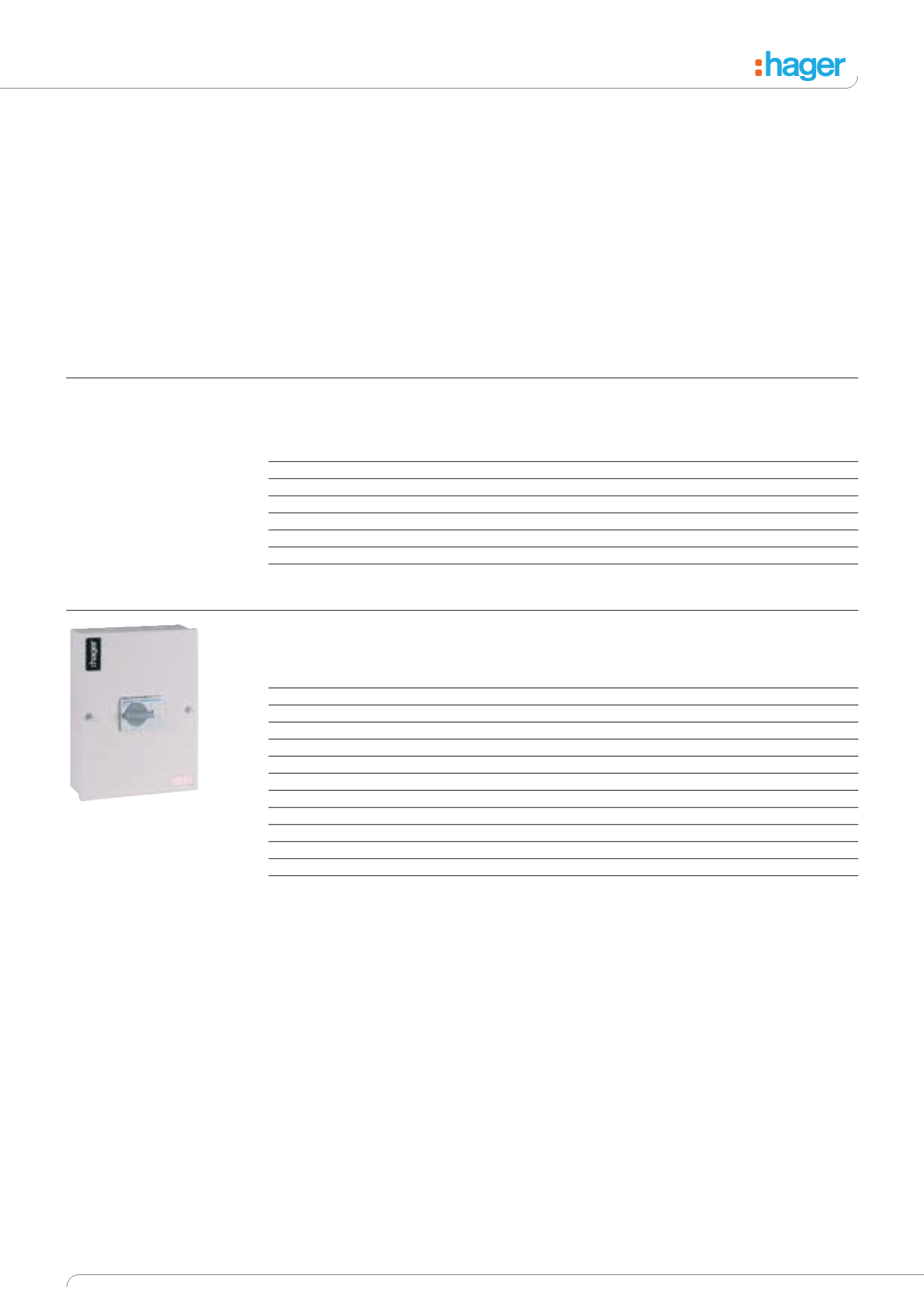

Switch Disconnectors TP&SN
Rating
Cat ref.
Cat ref.
Cable extension
boxes if required
20A
JAB402B
-
32A
JAB403B
-
63A
JAB406B
-
100A
JAB410B
-
125A
JAC412B
-
160A
JAC416
JZA700
200A
JAE420
JZA701
250A
JAE425
JZA701
315A
JAG431
JZA701
400A
JAG440
JZA701
630A
JAH463
JZA702
800A
JAH480
JZA702
JAB402B
