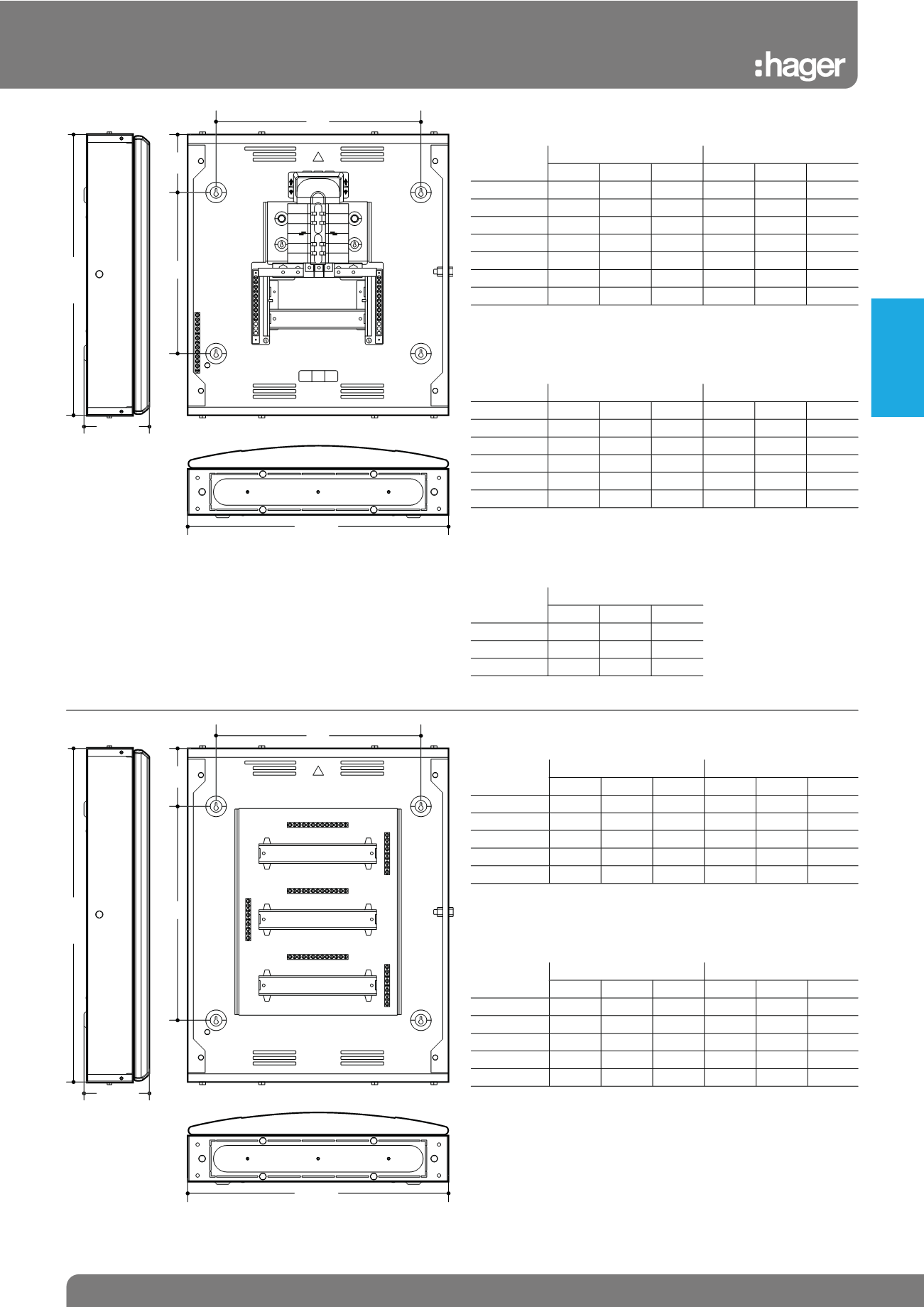

Invicta 3 Dimensions
Primary Boards & Side DIN Boxes
125A Primary Boards
Dimensions (mm) Fixing Centres (mm)
Height Width Depth A B C
JK104B/BG 500 465 132.5 365 100 300
JK106B/BG 550 465 132.5 365 100 350
JK108B/BG 625 465 132.5 365 100 425
JK112B/BG 850 465 132.5 365 100 650
JK116B/BG 950 465 132.5 365 100 750
JK118B/BG 1100 465 132.5 365 100 900
JK124B/BG 1250 465 132.5 365 100 1050
250A Primary Boards
Dimensions (mm) Fixing Centres (mm)
Height Width Depth A B C
JK208B/BG 950 465 165.5 365 100 750
JK212B/BG 1100 465 165.5 365 100 900
JK216B/BG 1250 465 165.5 365 100 1050
JK218B/BG 1400 465 165.5 365 100 1200
JK224B/BG 1550 465 165.5 365 100 1350
125A Side DIN Boxes
Dimensions (mm) Fixing Centres (mm)
Height Width Depth A B C
JK104BDFG 500 465 132.5 365 100 300
JK106BDFG 550 465 132.5 365 100 350
JK108BDFG 625 465 132.5 365 100 425
JK112BDFG 850 465 132.5 365 100 650
JK116BDFG 950 465 132.5 365 100 750
250A Side DIN Boxes
Dimensions (mm) Fixing Centres (mm)
Height Width Depth A B C
JK208BDFG 950 465 165.5 365 100 750
JK212BDFG 1100 465 165.5 365 100 900
JK216BDFG 1250 465 165.5 365 100 1050
JK218BDFG 1400 465 165.5 365 100 1200
JK224BDFG 1550 465 165.5 365 100 1350
Contactor Incomers
Dimensions (mm)
Height Width Depth
JK10634C 300 465 165.5
JK11004C 450 465 234.5
JK21604C 450 465 234.5
L1 L2 L3
L1
L2
L3
L1
L2
L3
ISOLATESUPPLY
BEFOREREMOVINGCOVER
UN LOCK UNLOCK
L1 L2 L3
Depth
B
C
A
Height
Width
Depth
B
C
A
Height
Width
