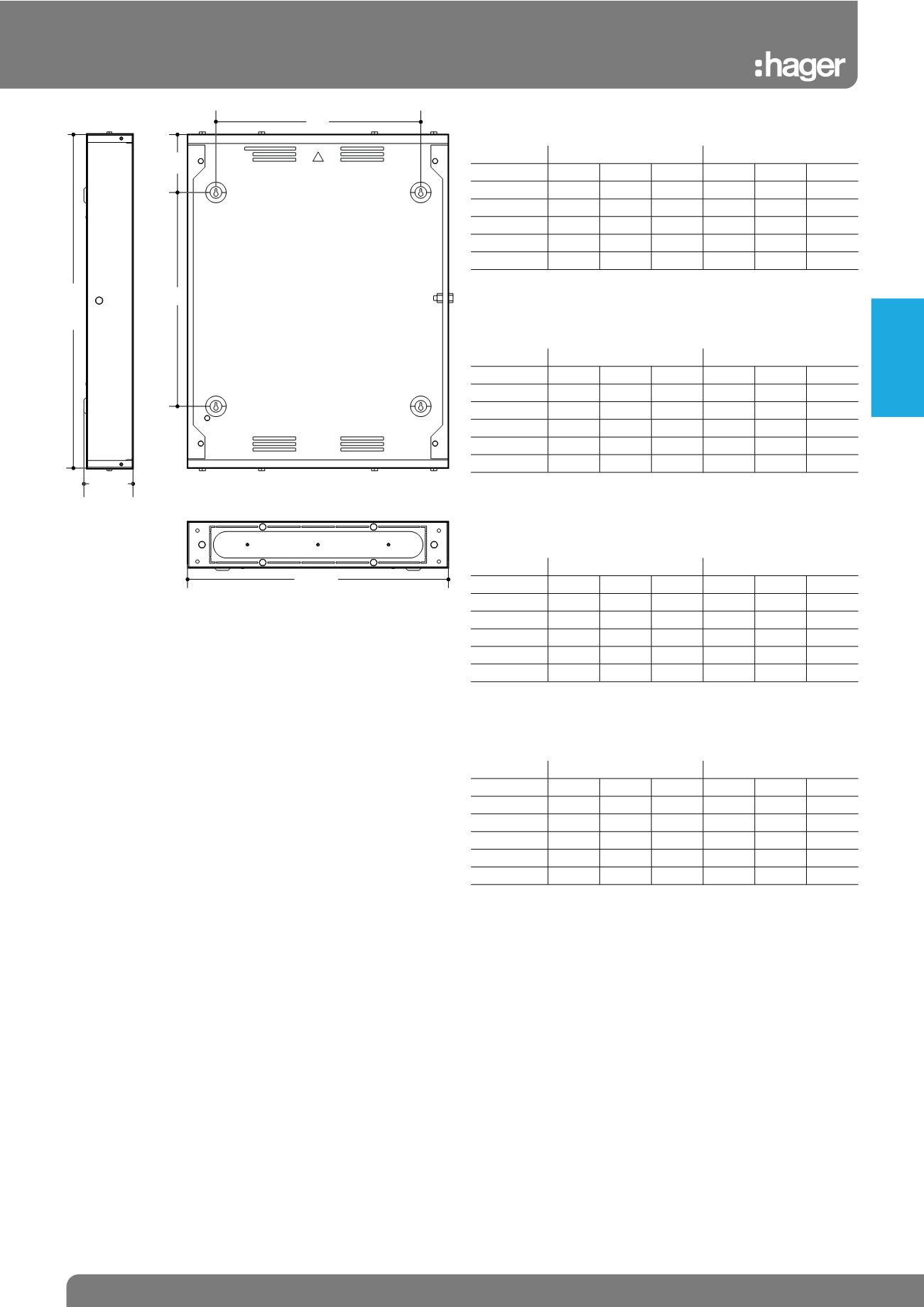

Invicta 3 Dimensions
Side Extension Boxes
3.43 Sales Service Centre • 01952 675612 Technical Support Helpline • 01952 675689
125A Half Width Side Extension Boxes
Dimensions (mm) Fixing Centres (mm)
Height Width Depth A B C
JK104BSH 500 232.5 91.5 170 100 300
JK106BSH 550 232.5 91.5 170 100 350
JK108BSH 625 232.5 91.5 170 100 425
JK112BSH 850 232.5 91.5 170 100 650
JK116BSH 950 232.5 91.5 170 100 750
250A Half Width Side Extension Boxes
Dimensions (mm) Fixing Centres (mm)
Height Width Depth A B C
JK208BSH 950 232.5 124.5 170 100 750
JK212BSH 1100 232.5 124.5 170 100 900
JK216BSH 1250 232.5 124.5 170 100 1050
JK218BSH 1400 232.5 124.5 170 100 1200
JK224BSH 1550 232.5 124.5 170 100 1350
125A Side Extension Boxes
Dimensions (mm) Fixing Centres (mm)
Height Width Depth A B C
JK104BSF 500 465 91.5 365 100 300
JK106BSF 550 465 91.5 365 100 350
JK108BSF 625 465 91.5 365 100 425
JK112BSF 850 465 91.5 365 100 650
JK116BSF 950 465 91.5 365 100 750
250A Side Extension Boxes
Dimensions (mm) Fixing Centres (mm)
Height Width Depth A B C
JK208BSF 950 465 124.5 365 100 750
JK212BSF 1100 465 124.5 365 100 900
JK216BSF 1250 465 124.5 365 100 1050
JK218BSF 1400 465 124.5 365 100 1200
JK224BSF 1550 465 124.5 365 100 1350
Depth
B
C
A
Height
Width
