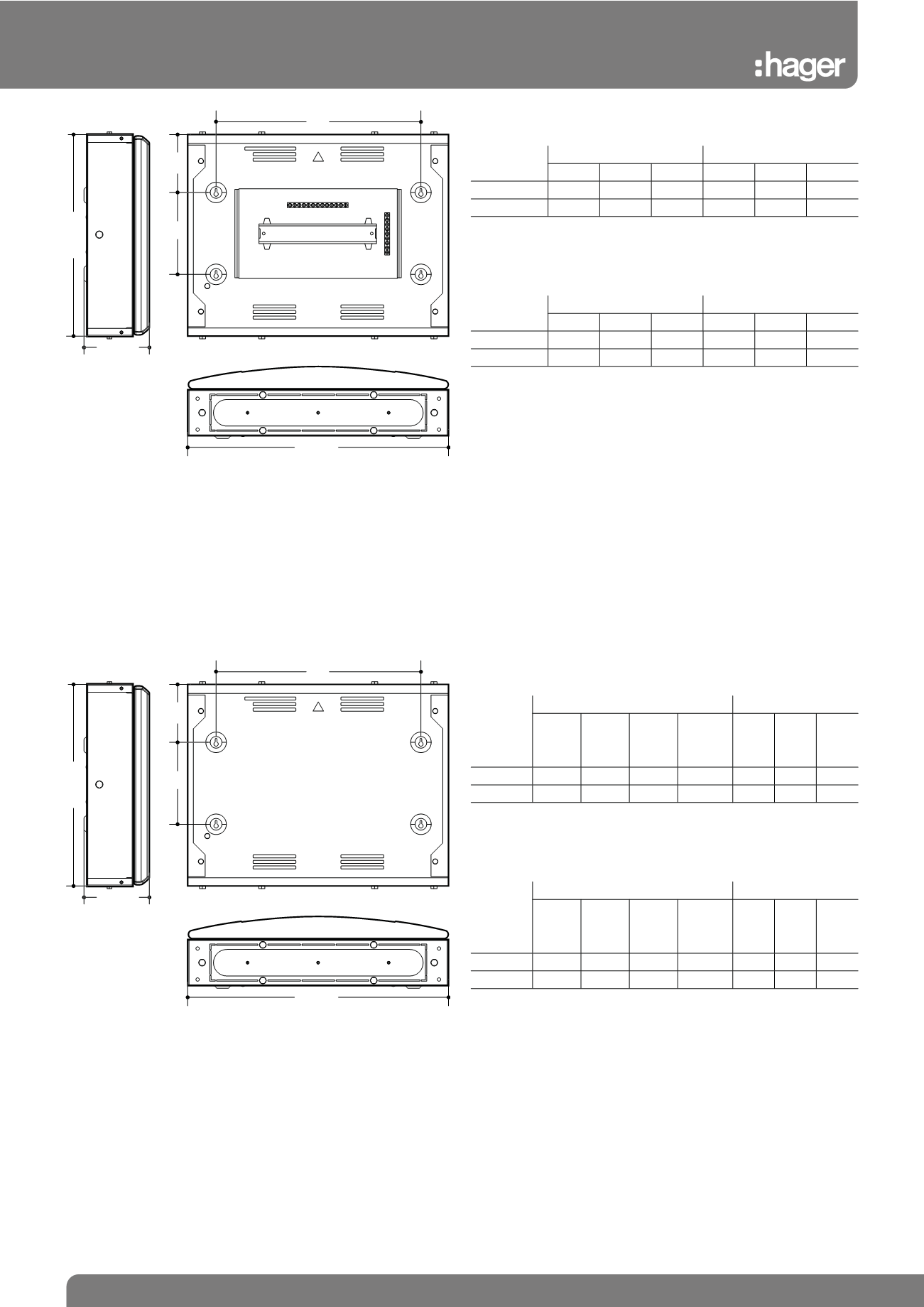

Invicta 3 Dimensions
DIN Extension & Cable Spreader Boxes
3.42
General Catalogue • Commercial Distribution • Technical
125A Cable Spreader Boxes
Dimensions (mm)
Fixing Centres (mm)
Height Width Depth
without
door
Depth
with
optional
door
A B C
JK101SE 300 465 91.5 132.5 365 150 -
JK102LE 450 465 91.5 132.5 365 80 290
250A Cable Spreader Boxes
Dimensions (mm)
Fixing Centres (mm)
Height Width Depth
without
door
Depth
with
optional
door
A B C
JK201SE 300 465 124.5 165.5 365 150 -
JK202LE 450 465 124.5 165.5 365 80 290
125A DIN Extension Boxes
Dimensions (mm)
Fixing Centres (mm)
Height Width Depth A
B C
JK116E/EG 300 465 132.5 365 150 -
JK132E/EG 450 465 132.5 365 80
290
250A DIN Extension Boxes
Dimensions (mm)
Fixing Centres (mm)
Height Width Depth A
B C
JK216E/EG 300 465 165.5 365 150 -
JK232E/EG 450 465 165.5 365 80
290
Depth
B
C
A
Height
Width
Depth
B
C
A
Height
Width
