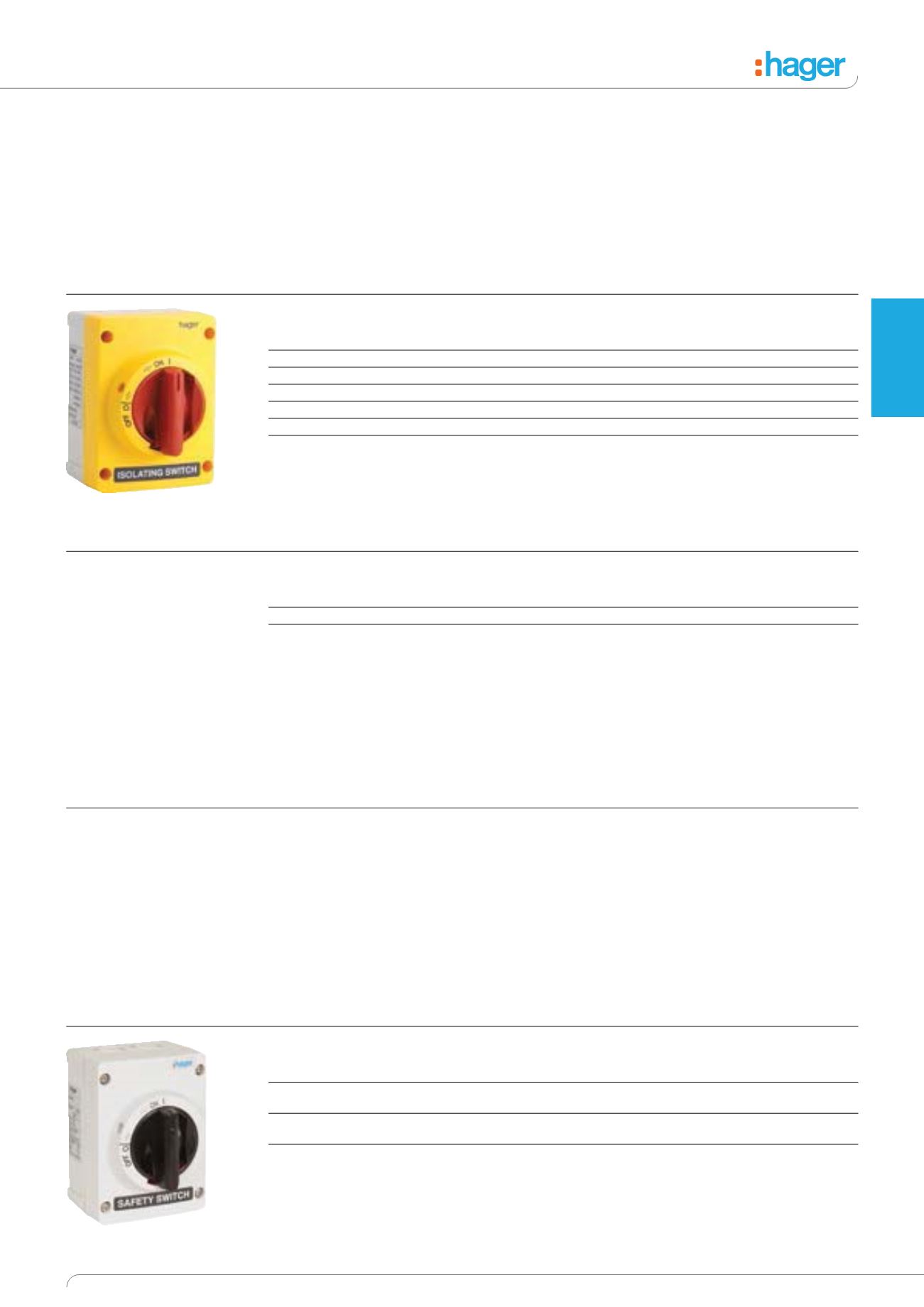

IP65 Switch Disconnectors AC
IP65 Switch Disconnectors DC
Description
The Hager range of switch
disconnectors suites with the
existing commercial offer, giving
a range of enclosed switch
disconnectors to IP65 for
individual isolation.
The devices are padlockable in
three positions and offer plenty
of cabling space. Clip on
auxiliary contacts can be fitted
retrospectively.
Product features
Complies with: BS EN 60947-3
IP65 to BS EN 60529
Range:
TPN 10, 16, 25, 40, 63 & 80A
Utilisation category
AC-21
AC-22
Cable Capacity
20 - 40A = 16mm2
63 - 100A = 35mm2
For technical information see
page 3.57.
IP65 Switch Disconnectors Triple Pole and Neutral
In AC 21 In AC 22 Cat ref.
20A 10A JG00S
25A 16A JG01S
40A 25A JG02S
63A 40A JG03S
80A 63A JG04S
100A 80A JG05S
Auxiliary Changeover Contacts
Description Cat ref.
1 NO / 1 NC JG10A
3 NO / 2 NC JG20A
JG440DC
Description
These DC switches are
used in applications such as
photovoltaic installations where
they isolate the incoming side of
the inverter.
They are supplied in grey with a
black handle so that it is easy to
distinguish them from the yellow/
red AC switches used on the
outgoing side of the inverter.
Product Features
Complies with: BS EN 60947-3
IP65 to BS EN 60529
An interlock ensures that the
cover cannot be removed in both
the ON and PADLOCKED OFF
positions.
Cable Capacity
20 - 40A = 16mm2
63 - 100A = 35mm2
DC Switches
Rating Utilisation Category Cat ref.
12A at 500V DC-21B, 10A at 600V DC-21B DC-21B JG416DC
8A at 800V DC-21B, 6A at 440V DC-22B
16A at 500V DC-21B, 12A at 600V DC-21B DC-21B JG425DC
10A at 800V DC-21B, 6A at 440V DC-22B DC-22B
20A at 500V DC-21B, 16A at 600V DC-21B DC-21B JG440DC
12A at 800V DC-21B, 16A at 440V DC-22B DC-22B
JG01S
