General Catalogue • Commercial Distribution
Enclosed MCCBs & Switch Fuses
The Hager range of enclosed
MCCBs has been designed for
individual circuit protection.
The devices are mounted in IP31
enclosures, with cable knock
outs top and bottom.
Both single and triple pole
devices are equipped with fully
rated neutral links.
4 Pole versions are available and
4 pole plus RCCB add-on are
avialble.
Construction
MCCB
Single pole 63 - 125A (3 ratings)
Triple pole 63 - 125A (3 ratings)
Four pole 63 - 125A (3 ratings)
MCCB-RCCB
Four pole + RCCB 63A & 100A
(2 ratings)
Non-Auto MCCB
Triple pole 125A
Four pole 125A
Specification
Complies with BS EN 61439-2
Cable Capacity
63 - 125A
Flexible: min 6mm2, max 70mm2
Rigid: min 6mm2, max 95mm2
RCCB add-on adjustable from
0.03A, 0.1A, 0.3A, 1A, 3A, 6A
Time delay - Instananious, 60ms,
150ms, 300ms, 500ms, 1s
For Enclosed MCCB technical
details and dimensions see page
3.56.
For Switch Fuse dimensions see
page 3.53.
Enclosed MCCBs Single Pole and Neutral
I n A
I cu
Cat ref.
63A
18kA
JG25BM
100A
18kA
JG28BM
125A
18kA
JG31BM
Enclosed MCCBs Triple Pole and Neutral
I n A
I cu
Cat ref.
63A (40A-50A 63A)
18kA
JG26BM
100A (63A-80A-100A)
18kA
JG29BM
125A (80A-100-125A)
18kA
JG32BM
125A
Non-Auto
JG34BS
Enclosed MCCBs Four Pole
I n A
I cu
Cat ref.
63A (40A-50A 63A)
18kA
JG27BM
63A (40A-50A 63A) + RCCB add-on
18kA
JG27BR
100A (63A-80A-100A)
18kA
JG30BM
100A (63A-80A-100A) +RCCB add-on
18kA
JG30BR
125A (80A-100-125A)
18kA
JG33BM
125A
Non-Auto
JG35BS

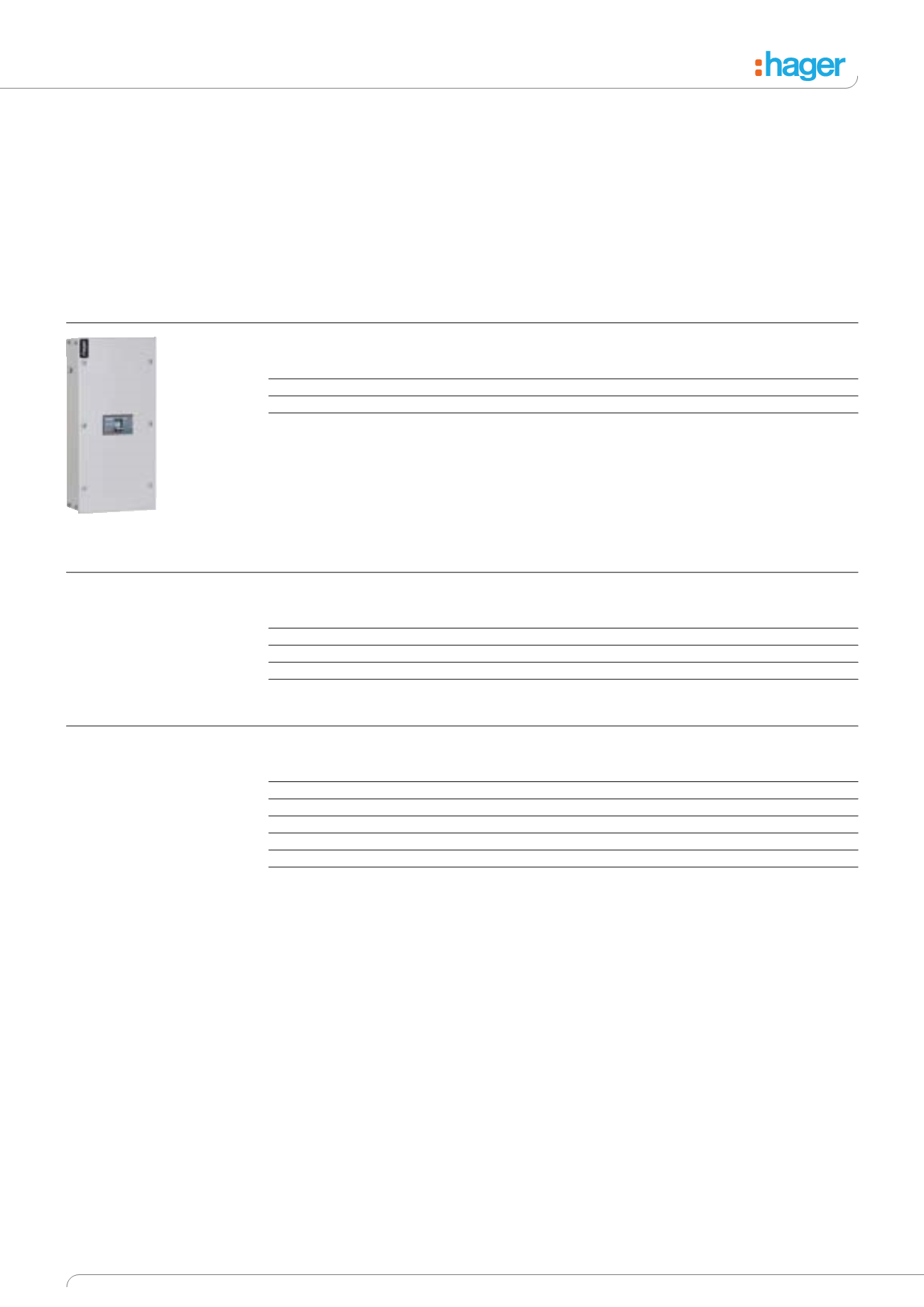

JG31BM
