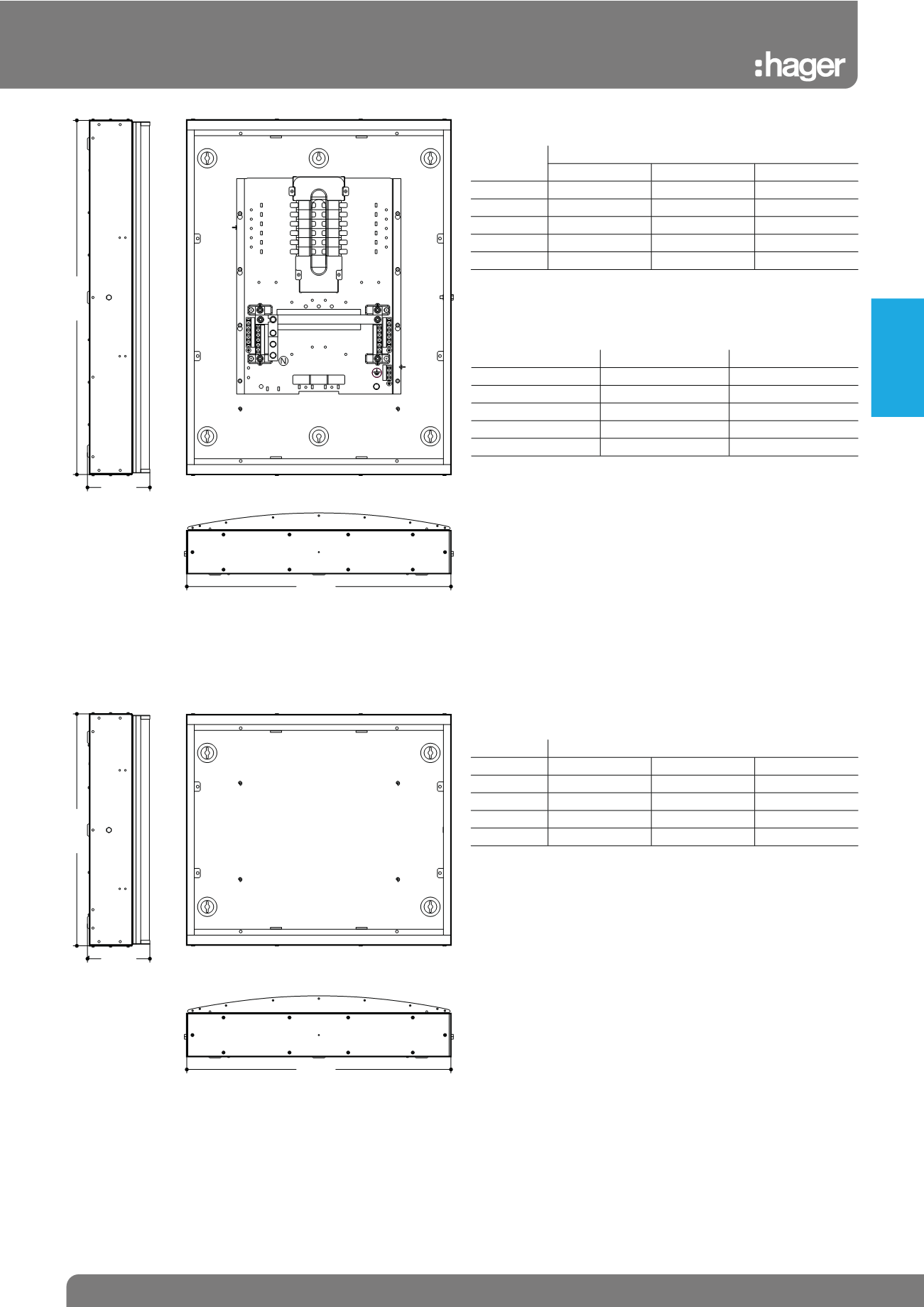

Invicta 3 Panelboard System (250A Rated)
Dimensions
3.47
Sales Service Centre • 01952 675612 Technical Support Helpline • 01952 675689
Primary Boards
Dimensions (mm)
Height
Width
Depth
JN204B/G 950
710
160
JN206B/G 1100
710
160
JN208B/G 1100
710
160
JN212B/G 1250
710
160
JN216B/G 1550
710
160
Terminals
Neutral
Earth
Bond
2 x 6 x 50mm
2 x 6 x 50mm
1 x 3 x 50mm
2 x 9 x 50mm
2 x 9 x 50mm
1 x 3 x 50mm
2 x 12 x 50mm 2 x 12 x 50mm 1 x 3 x 50mm
2 x 18 x 50mm 2 x 18 x 50mm 1 x 3 x 50mm
2 x 24 x 50mm 2 x 24 x 50mm 1 x 3 x 50mm
Cables outgoing ways:
25 - 50mm
2
CSA Flex
25 - 70mm
2
CSA Solid
MCCB Connections
250A M8
Earth
250A M8
Neutral
250A M8
Extension Boxes
Dimensions (mm)
Height
Width
Depth
JN201BE/G 300
710
160
JN203BE/G 450
710
160
JN205BE 300
710
125
JN206BE 450
710
125
1
2
3
4
5
6
1
2
3
4
5
6
7
8
9
10
11
12
7
8
9
10
11
12
B1
B2
B3
ISOLATEBEFORE
REMOVINGCOVER
ISOLATEBEFORE
REMOVINGCOVER
L1 L2 L3
L1
L2
L3
L1
L2
L3
Width
Height
Depth
Width
Height
Depth
