Invicta 3 Panelboard System (800A Rated)

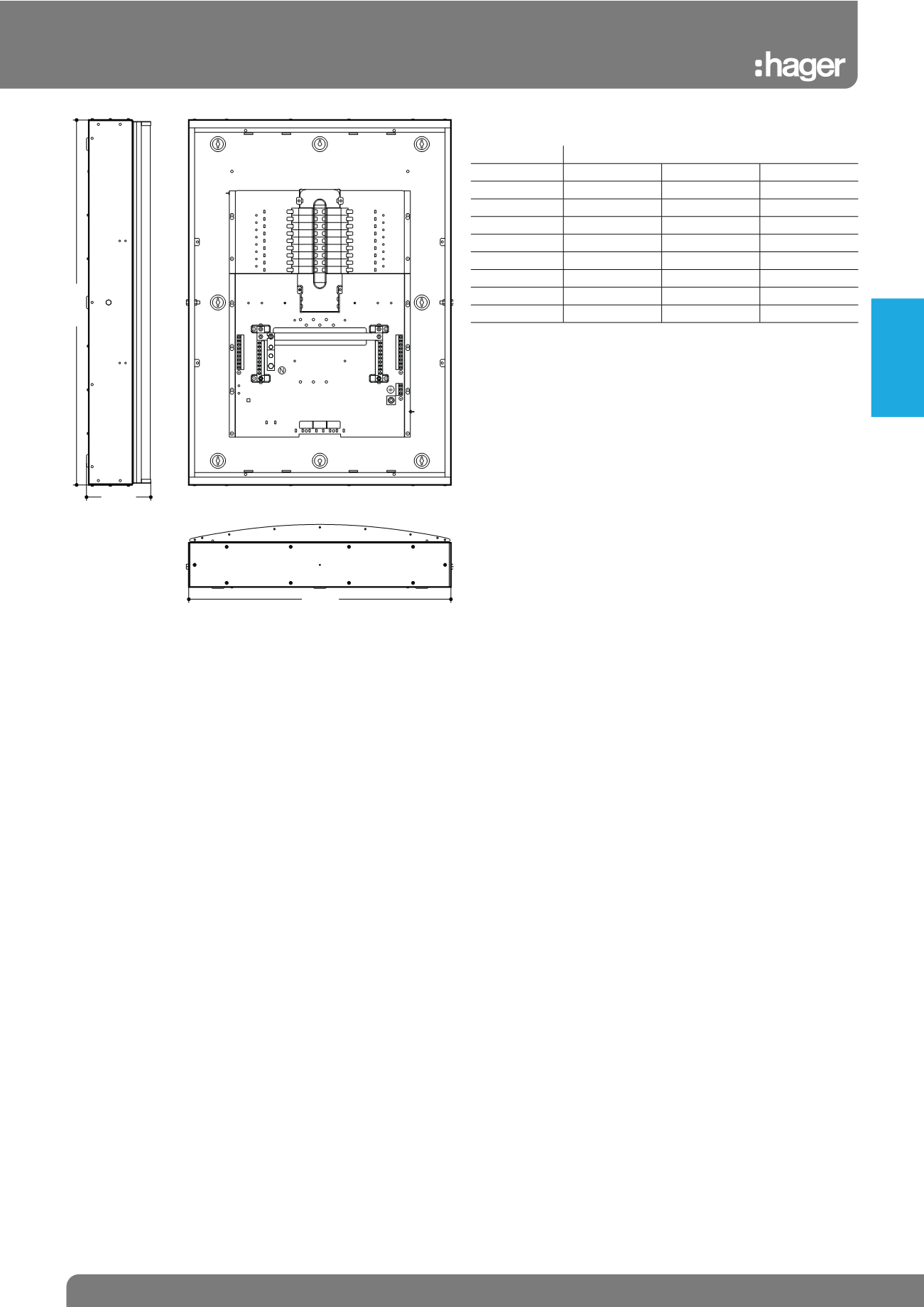

Dimensions
3.49
Sales Service Centre • 01952 675612 Technical Support Helpline • 01952 675689
Primary Boards
Dimensions (mm)
Height
Width
Depth
JHF812B/G 2050
900
220
JHF818B/G 2200
900
220
JHF80206B/G 1900
900
220
JHF80404B/G 1900
900
220
JHF80210B/G 2050
900
220
JHF80408B/G 2050
900
220
JHF80414B/G 2200
900
220
JHF80612B/G 2200
900
220
