General Catalogue • Commercial Distribution

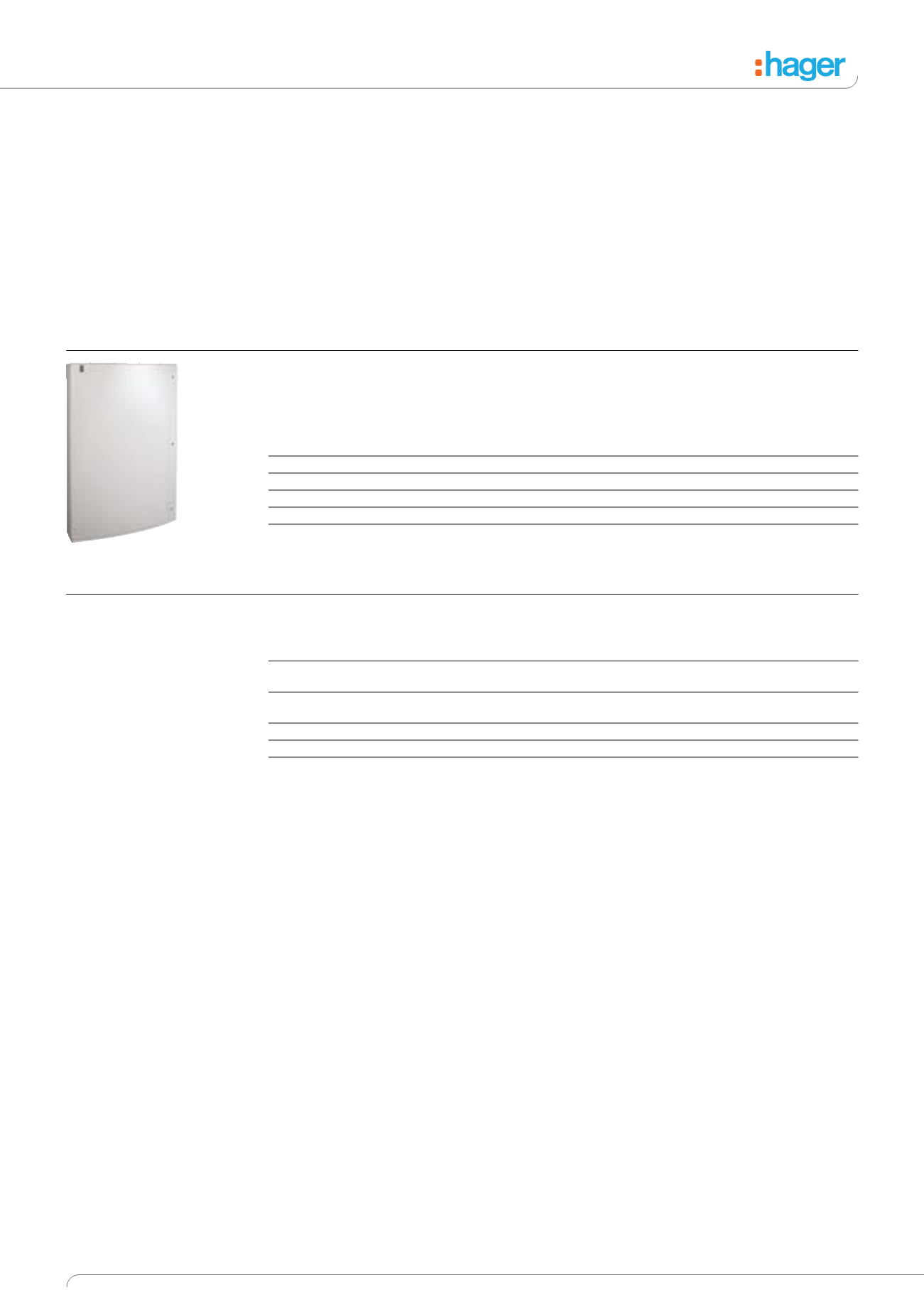

Invicta 3 Panelboard System (400A Rated)
400A Incoming 125A Outgoing
Invicta 3 Panelboards (400A Incoming 125A Outgoing)
Comprises of enclosure, pan assembly, neutral bar and earth bar.
Supplied without incoming kit (one of the incomer kits listed below must be used).
Description
Cat ref.
Cat ref.
Plain door
Glazed door
6 Way
JF406B
JF406BG
8 Way
JF408B
JF408BG
12 Way
JF412B
JF412BG
16 Way
JF416B
JF416BG
18 Way
JF418B
JF418BG
Incomer Kits
Description
Cat ref.
3 Pole 400A MCCB Incomer Kit 50kA
JF443BM
Electronic LSI MCCB, Ir adjustable 0.4 – 1.0 x In
4 Pole 400A MCCB Incomer Kit 50kA
JF444BM
Electronic LSI MCCB, Ir adjustable 0.4 – 1.0 x In
3 Pole 400A Switch Disconnector (Non-Auto MCCB) Incomer Kit
JF443BS
4 Pole 400A Switch Disconnector (Non-Auto MCCB) Incomer Kit
JF444BS
400A Direct Connection Kit
JF444BD
For other options contact our Technical Service Centre on 01952 675689
Options
Key lock, meter pack, DIN rail,
extension box, spreader box.
Construction
Enclosures manufactured from
1.2/1.5mm DC01M cold reduced
mild steel, phosphate pretreated
and powder coated to 00A01
BS4800.
Specification
Complies with BS EN 61439-2.
Enclosure degree of protection:
IP3X
Internal separation
Form 3A
6, 8, 12, 16, 18 Triple Pole
outgoing ways.
Form 3B type 2 is achieved using
the outgoing terminal shield (see
MCCB accessories on page
4.42).
Cable Capacity Incomers
3 and 4 pole incomers.
Cable capacity 240mm
2
M12 bolt.
Direct connection kit.
M10 hexagonal bolt.
Cable Capacity Outgoers
1 & 3 pole MCCB 70mm
2
flexible.
1 & 3 pole MCCB 95mm
2
solid.
Busbar Ratings
Busbar rated current:
400A continuous
Busbar rated short-time
withstand current 35kA for 1s
direct connected (unconditional)
Outgoing MCCBs
Adjustable thermal options on TP
Form 3B type 2 is achieved using
the outgoing terminal shield (see
MCCB accessories in section 4).
For accessories see page 3.27.
For dimensions see page 3.48.
JF406B
