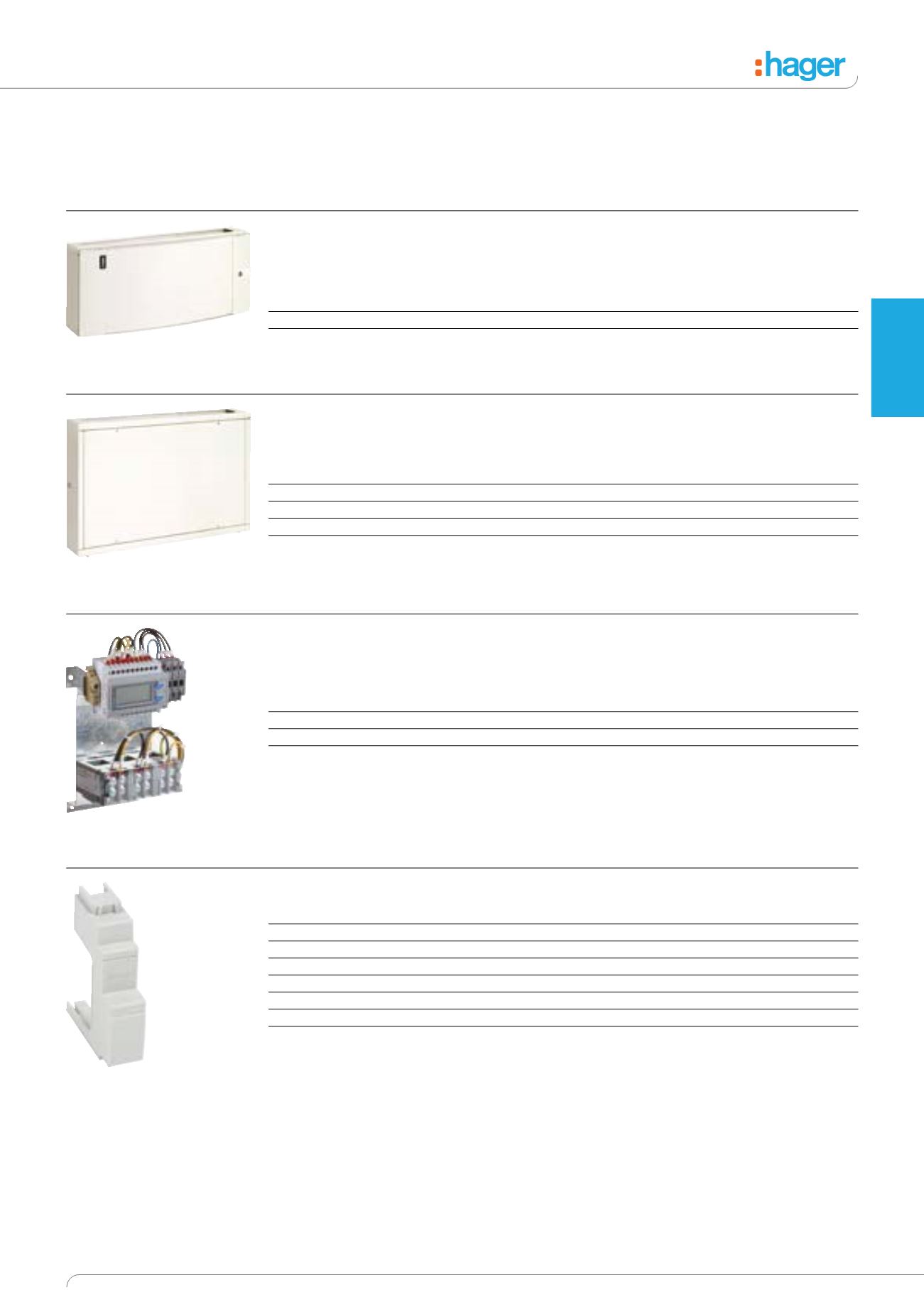

3.25
Invicta 3 Panelboard System (250A Rated)
DIN Extension Boxes, Cable Spreader Boxes & Accessories
DIN Extensions Boxes have plain
or glazed doors and DIN rail
chassis.
Cable spreader boxes are used
for additional cabling space
therefore do not require doors. If
doors are desired optional door
kits are available.
For dimensions see page 3.47.
JK2 side extension boxes can
be used with this range see page
3.19.
DIN Extension Boxes
Supplied with DIN Rail and without gland plate (JN2PLATE)
Description
Cat ref.
Cat ref.
Plain door
Glazed door
1 Row 26 Mod (300mm Height)
JN201BE
JN201BEG
2 Row 52 Mod (450mm Height)
JN203BE
JN203BEG
Cable Spreader Box
Supplied without gland plates (JN2PLATE)
Description
Cat ref.
Small (300mm Height) (Door not included)
JN205BE
Large (450mm Height) (Door not included)
JN206BE
Small Cable Spreader Box Door Kit
JN205DK
Large Cable Spreader Box Door Kit
JN206DK
Meter Pack 250A
Comprises of a digital multi function meter, 3 x control circuit fuse carriers, wiring harness and CTs. The
meter pack fits directly into the main panelboard.
Description
Cat ref.
Digital Multifunction Meter Pack Pulsed
JN201BA
Digital Multifunction Meter Pack ModBus
JN201MJ
Multifunction Meter Pack 250A Pulsed & Modbus Pluggable Output
JN201PM
Accessories
Description
Cat ref.
Touch Up Paint 30ml
JF95A
Allen Key Set
JF296A
Gland Plate for Invicta 3 (250A)
JN2PLATE
Key lock with one key
JK222PK
x125 Frame Blank (3x blanks required per triple pole way)
JN001BP
Multi Padlock Plate (for integral toggle lock) fits to toggle for up to 3 padlocks max ø8mm
HXA039H
Neutral Barrier Kit
JN201NS
JN201BE
JN205BE
JN001BP
JN201BA
