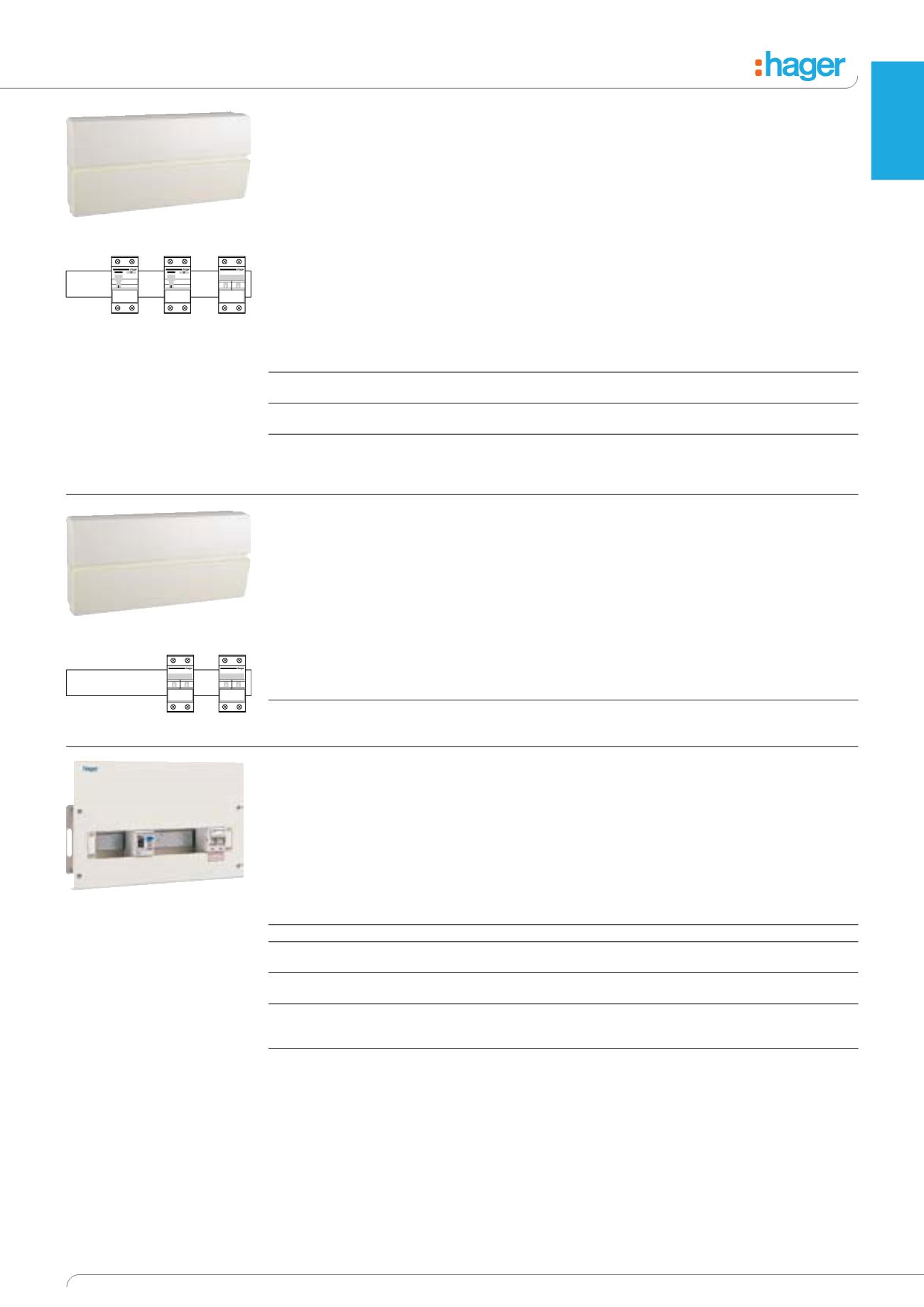

1.17
Consumer Units
Insulated, Hybrid & Skeleton
Description
Enclosure
Cat ref.
size
Plain door
10 Way Configurable
5
VC710CU
100A Switch 2 x 63A 30mA RCCB
16 Way Configurable
6
VC716CU
100A Switch 2 x 63A 30mA RCCB
16 Way Configurable
6
VC816CU
100A Switch 2 x 80A 30mA RCCB
Insulated and metal enclosures,
1 row from 10 to 18 outgoing
ways.
Surface and Flush mounted
enclosures, with a rigid chassis,
housing a Switch
Disconnector, Twin RCCB and
space for RCBOs.
Supplied with marking labels,
configurable busbar and
instructions.
Options:
• Keylock
• Plain or glazed door
Complies with BS EN 61439-3
Annex ZB (16kA rating).
For complete accessories list
see page 1.18.
For insulated consumer unit
dimensions see page 1.22.
Hybrid = metal back box with
insulated cover.
VC816CU
Sw/D/I
RCCB
RCCB
100A Switch plus Twin RCCB with Unprotected Ways - Insulated
Description
Enclosure
Cat ref.
size
Plain door
18 Way Twin Tariff Configurable 2 x 100A Switch
6
VH918C
Insulated and metal enclosures
1 row from 12 to 18 outgoing
ways.
Surface mounted enclosures,
with a rigid chassis, housing a
Twin 2 x 100A or 2 x 100A + 63A
Switch Disconnector.
Supplied with marking labels,
busbar and instructions.
Options:
• Keylock
Complies with BS EN 61439-3
and (Annex ZB 16kA conditional)
For complete accessories list
see page 1.18.
Hybrid = metal back box with
insulated cover.
For hybrid consumer unit
dimensions see page 1.22.
Sw/D/I
Sw/D/I
Twin and Multi Tariff - Hybrid (Metal back, plastic cover)
Description
Cat ref.
Plain door
12 Way 100A Switch Incomer
VS112
10 Way Configurable
VS710C
100A Switch 1 x 63A 30mA RCCB
12 Way Configurable
VS712C
100A Switch 1 x 63A 30mA RCCB
10 Way 5+4+1
VS754U
100A Switch 2 x 63A 30mA RCCB
1 x Switch Fed Way for RCBO or MCB (to feed smoke detector for example)
10 Way 5+4+1
VS854U
100A Switch 2 x 80A 30mA RCCB
1 x Switch Fed Way for RCBO or MCB (to feed smoke detector for example)
Skeleton consumer units are
designed typically for use in
installations in areas with
pre-determined space available
e.g. Metering cupboards in Local
Authority accommodation.
Complies with BS EN 61439-3
and Annex ZB.
For complete accessories list
see page 1.18.
VS710C
Skeleton Units
VH918C
Consumer
Units
